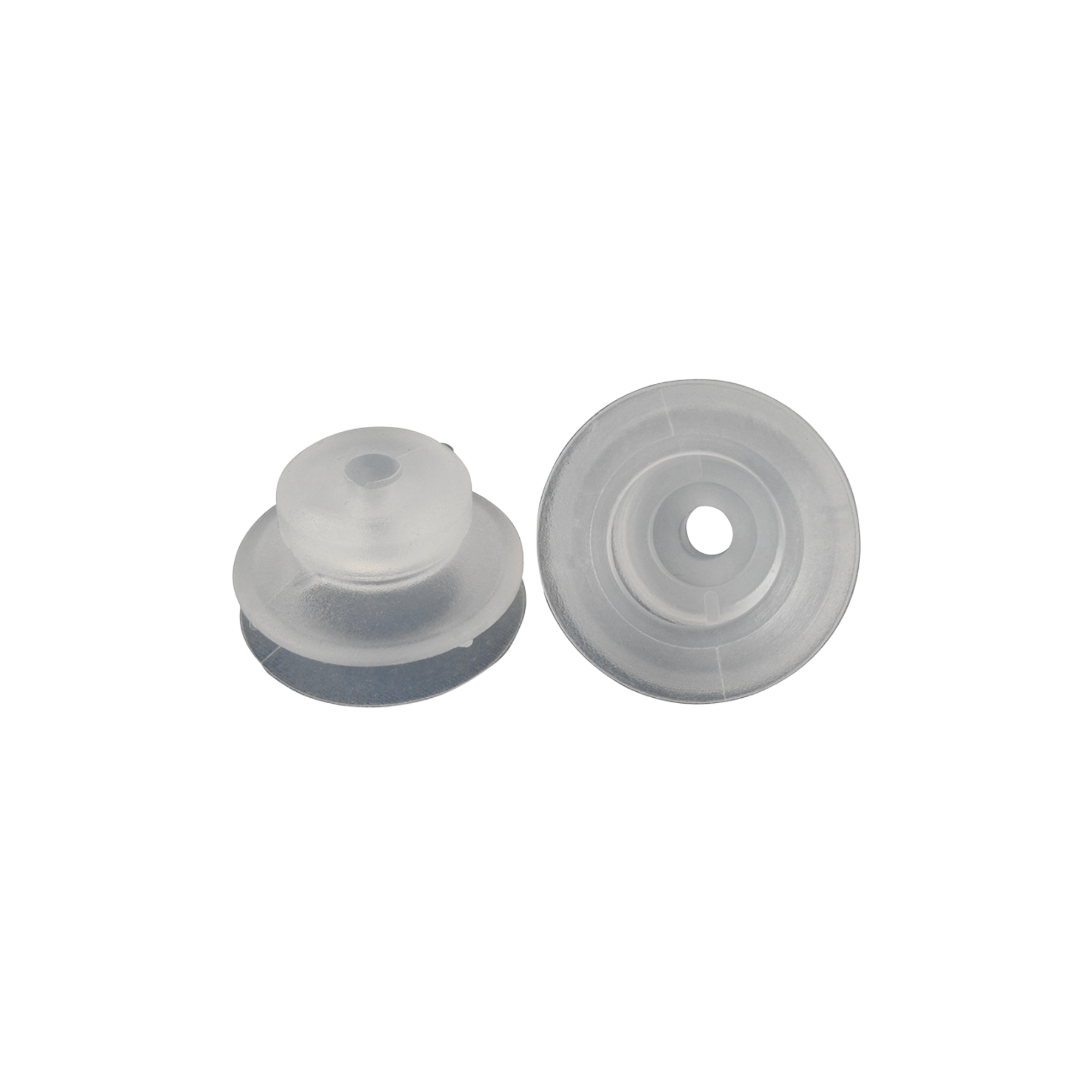

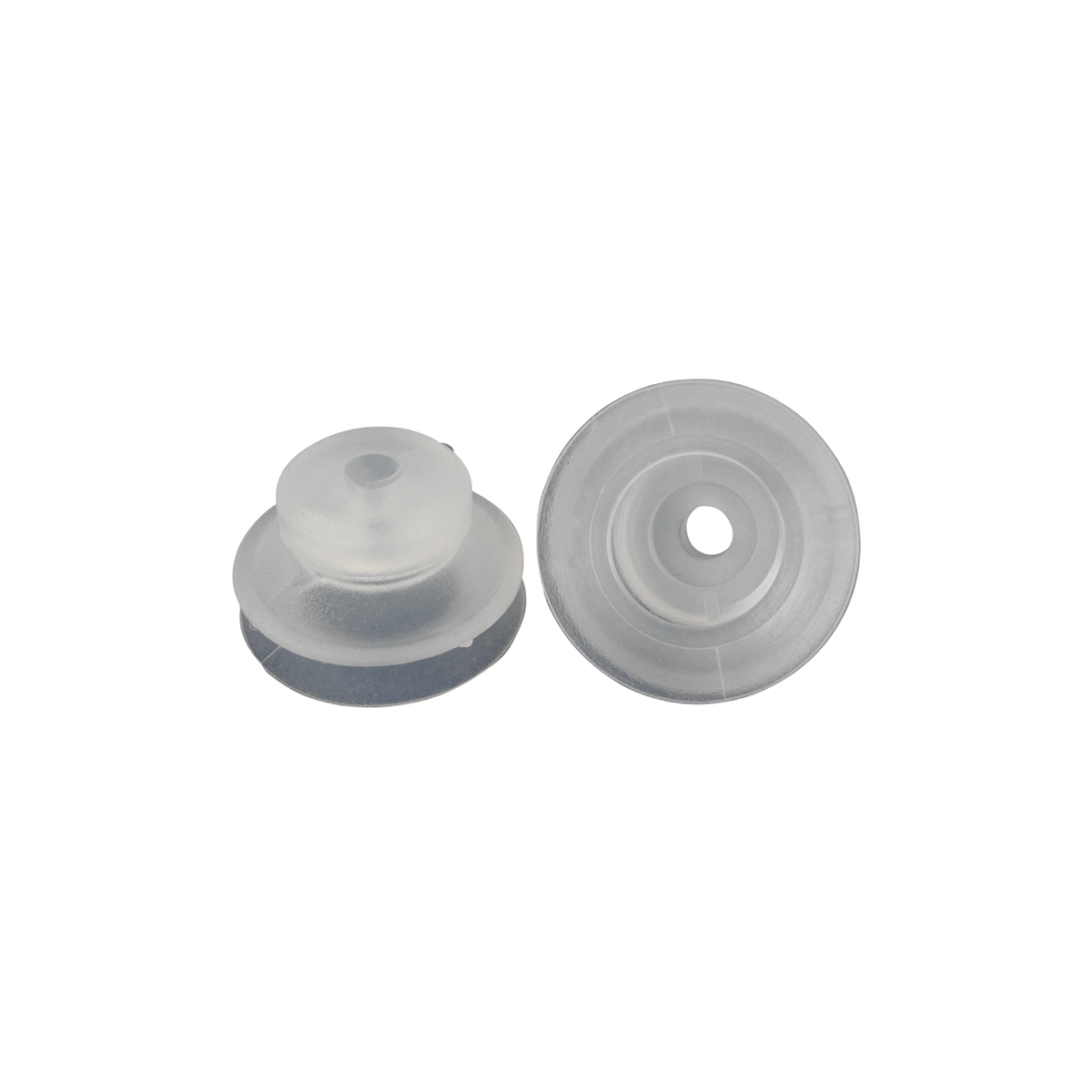

VacMotion | 30mm Single Bellows FDA Silicone Suction Cup | PB30-SIT

Mfr. Part #: PB30-SIT

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

ID #: 218550

30 mm, 1.5-bellows FDA silicone suction cup designed for vacuum handling applications. The flexible bellows construction helps compensate for uneven surfaces and height differences while providing reliable gripping performance. FDA silicone is suitable for applications requiring food-contact-compatible materials.

Compatible Products: Recommended replacements include PJG-30-SI, VSAJ30SI, C-BS1.5-30-SIT, 23.030.155.2, 210.030.152.02, and TPG10504/TPGi0504. Compatible fittings include G1/8" male (130.030) and G1/8" female (130.019).
Feature Set
• 1.5-bellows design

• FDA silicone construction

• 30 mm diameter

• Height compensation

• Food-contact applications

• Multiple compatible fittings

• Translucent construction

• Multiple replacement options

Specification	Details
Style	Bellows
Material	FDA Silicone
Outside Diameter	30.0 mm
Bellows	1.5
Thread Size	None
Cleats	No
Color	Translucent
Weight	0.0103 lbs.
Fitting Included	No
Horizontal Lifting Capacity at 6 inHg	1.31 lbs.
Vertical Lifting Capacity at 6 inHg	0.65 lbs.
Horizontal Lifting Capacity at 18 inHg	3.94 lbs.
Vertical Lifting Capacity at 18 inHg	1.97 lbs.
Horizontal Lifting Capacity at 27 inHg	5.91 lbs.
Vertical Lifting Capacity at 27 inHg	2.95 lbs.
