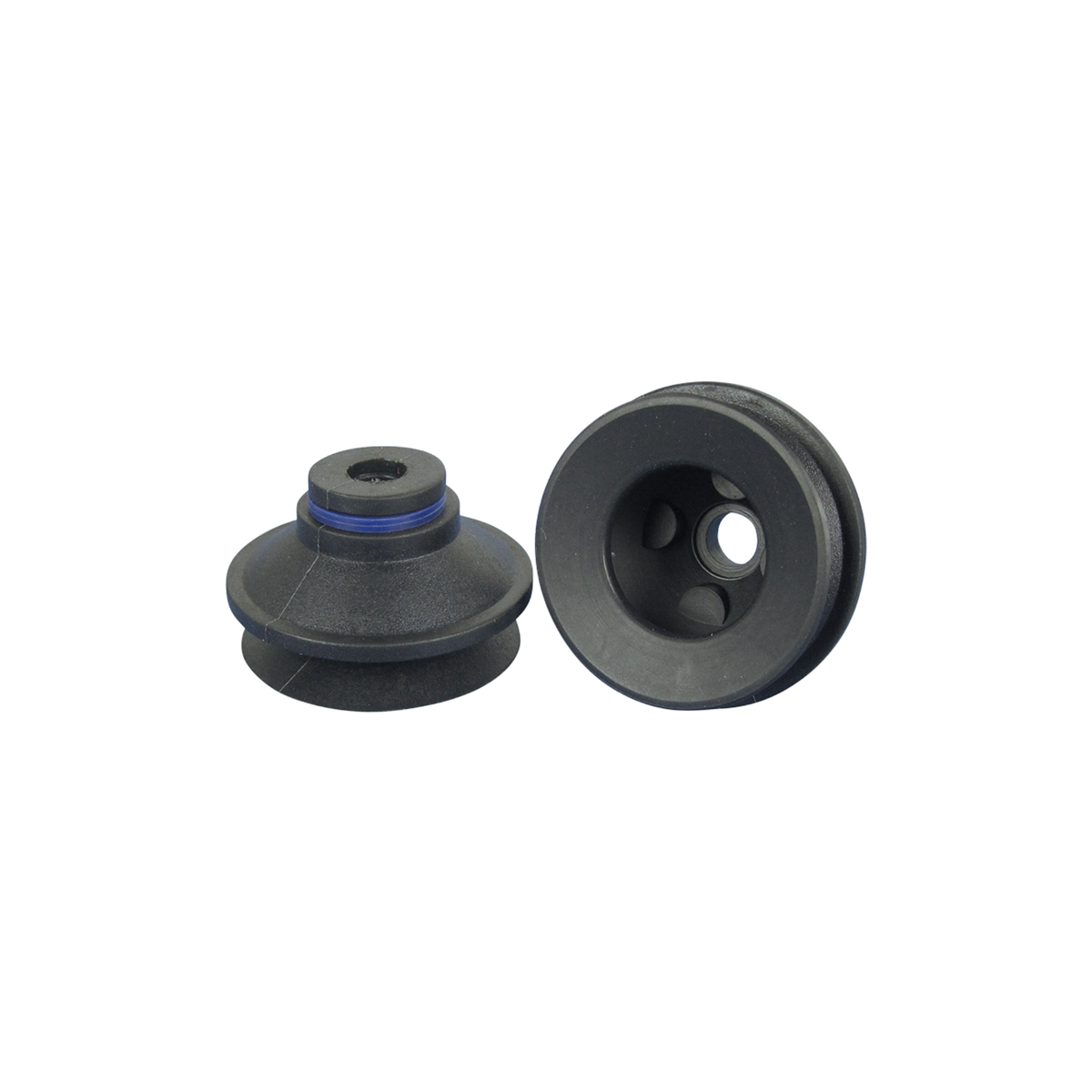

VacMotion | 2mm single bellows NBR suction cup | PSB40-NBR

Mfr. Part #: PSB40-NBR

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

ID #: 222200

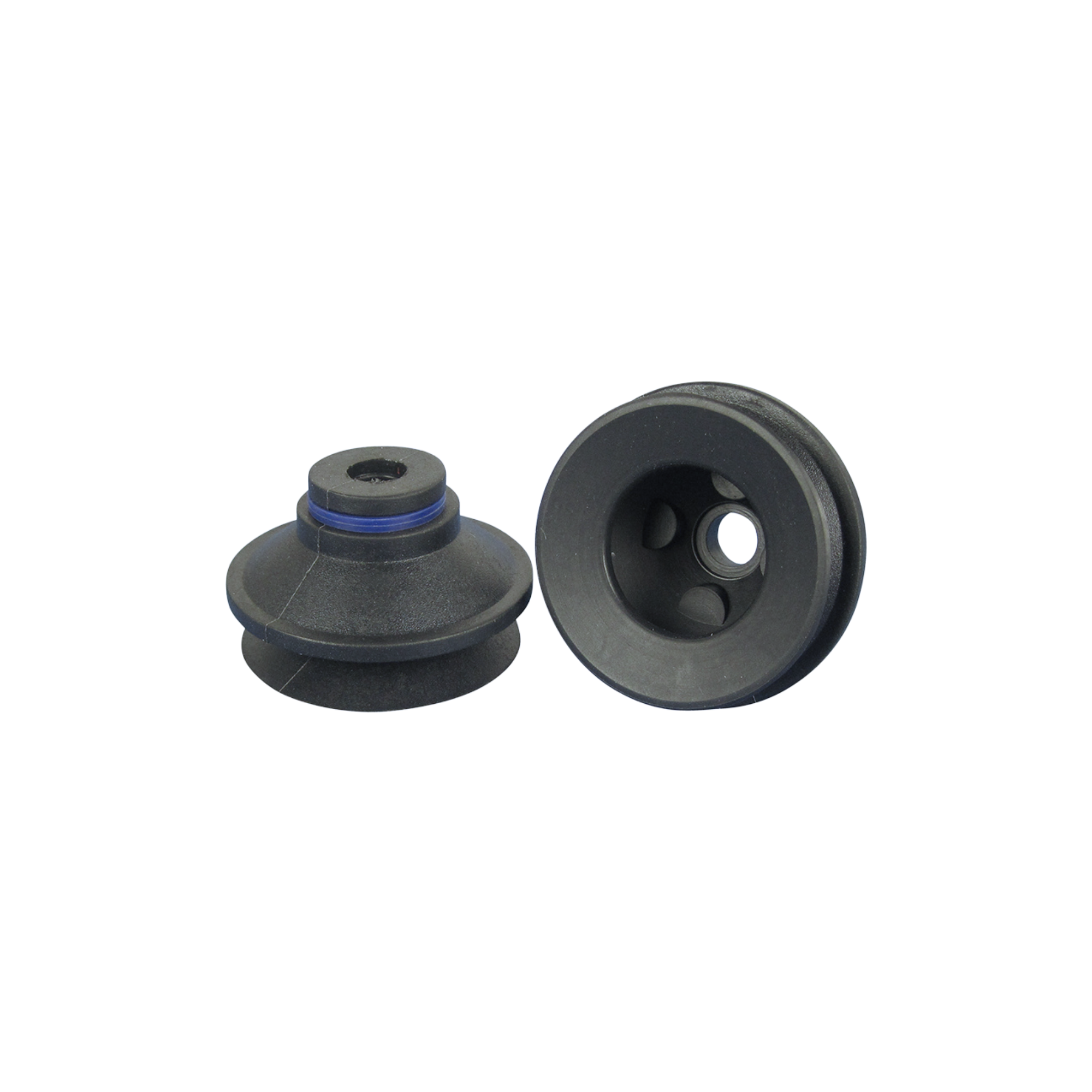

42 mm, 1.5-bellows NBR suction cup designed for vacuum handling applications. The flexible bellows construction helps compensate for uneven surfaces and height differences while providing a lifting movement for separating thin materials. NBR construction offers good wear and oil resistance with excellent weather and ozone resistance.

Compatible Products: Recommended replacement cups include B40.20-NBR, 0101105, XP-B40N, GSV B40 20, 1418, VB40-N, VFB40N, 210.042.020.01R, and S.B40N50.XXX.00. Compatible fittings include G1/4" female with filter screen (25040-21), G1/4" male with filter screen (402.011), G1/8" female (130.251), G1/8" female with screen (SCF40-G18FS), G1/8" male flange fitting (401.001), and 1/4" NPT male with filter screen (402.012).
Feature Set
• 1.5-bellows design

• NBR rubber construction

• Good wear resistance

• Good oil resistance

• Excellent weather and ozone resistance

• Wide temperature range

• Multiple compatible fittings

• Multiple interchangeable replacements available

Specification	Details
Style	Bellows
Material	NBR
Outside Diameter	42.0 mm
Bellows	1.5
Thread Size	None
Cleats	No
Color	Black
Weight	0.038 lbs.
Fitting Included	No
Horizontal Lifting Capacity at 6 inHg	2.57 lbs.
Vertical Lifting Capacity at 6 inHg	1.28 lbs.
Horizontal Lifting Capacity at 18 inHg	7.73 lbs.
Vertical Lifting Capacity at 18 inHg	3.86 lbs.
Horizontal Lifting Capacity at 27 inHg	11.59 lbs.
Vertical Lifting Capacity at 27 inHg	5.79 lbs.
Wear Resistance	Good
Oil Resistance	Good
Weather & Ozone Resistance	Excellent
Temperature Range	-40 to 266 °F (-40 to +130 °C)
