Mfr. Part #: VF27PM-SIT
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.
ID #: 222407

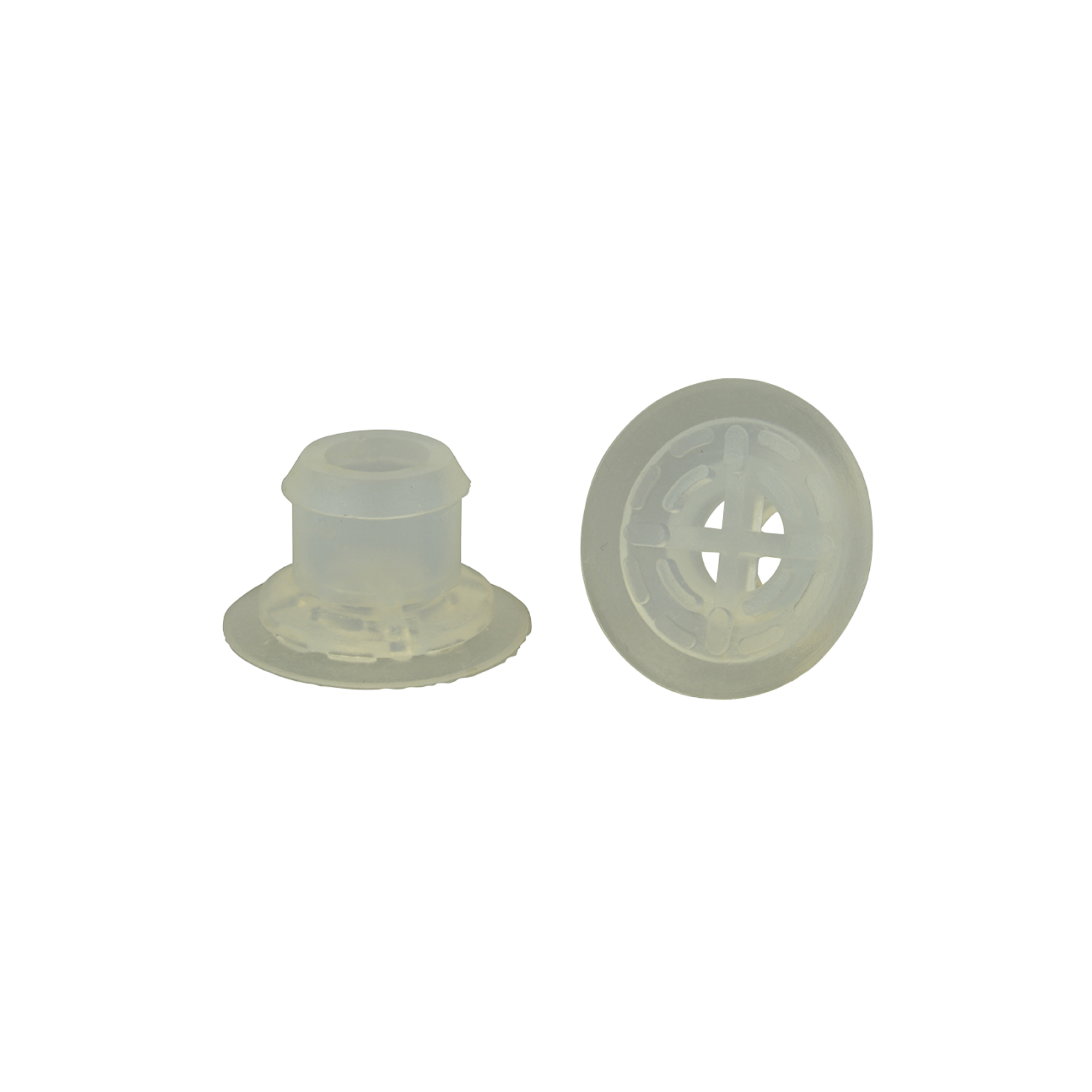

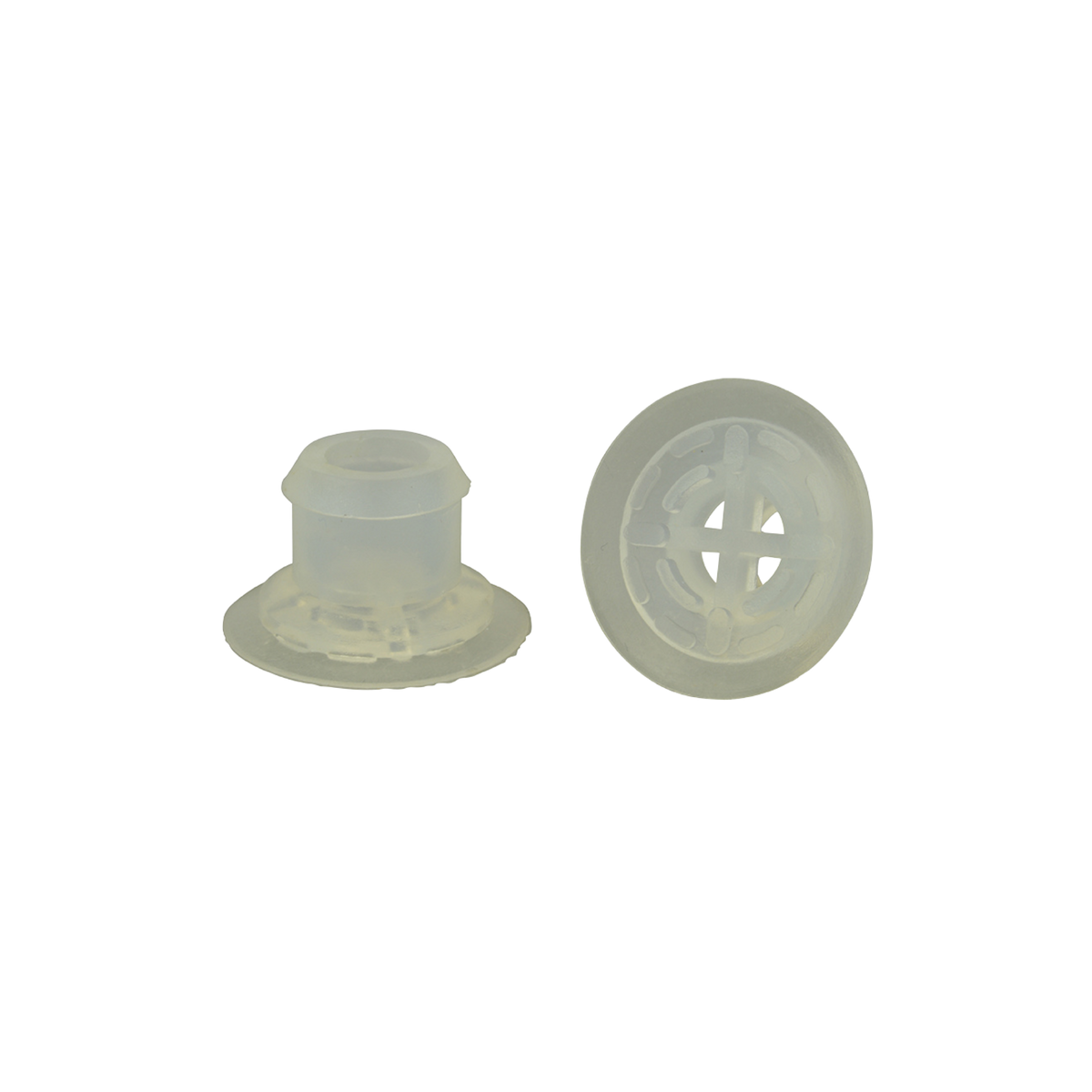

27.5 mm flat FDA silicone suction cup with cleats, designed for vacuum handling applications. The flat profile and cleated surface provide reliable gripping on suitable materials, while FDA silicone construction offers good wear and oil resistance with excellent weather and ozone resistance.
Compatible Products: Recommended replacement cups include 102.027.298.2/1, TG-C1, TG-CI-27SI, TG-C1-27-Si, KPS2-S, G6113, 2060058, KPS-2-S, KPS-2-WS, KPS-2-WS(FDA), and TPG-I0506.
| Specification | Details |
|---|---|
| Style | Flat |
| Material | FDA Silicone |
| Outside Diameter | 27.5 mm |
| Cleats | Yes |
| Thread Size | None |
| Color | Translucent |
| Weight | 0.0044 lbs. |
| Fitting Included | No |
| Horizontal Lifting Capacity at 6 inHg | 1.10 lbs. |
| Vertical Lifting Capacity at 6 inHg | 0.55 lbs. |
| Horizontal Lifting Capacity at 18 inHg | 3.31 lbs. |
| Vertical Lifting Capacity at 18 inHg | 1.65 lbs. |
| Horizontal Lifting Capacity at 27 inHg | 4.97 lbs. |
| Vertical Lifting Capacity at 27 inHg | 2.48 lbs. |
| Wear Resistance | Good |
| Oil Resistance | Good |
| Weather & Ozone Resistance | Excellent |
| Temperature Range | -94 to 392 °F (-70 to 200 °C) |
