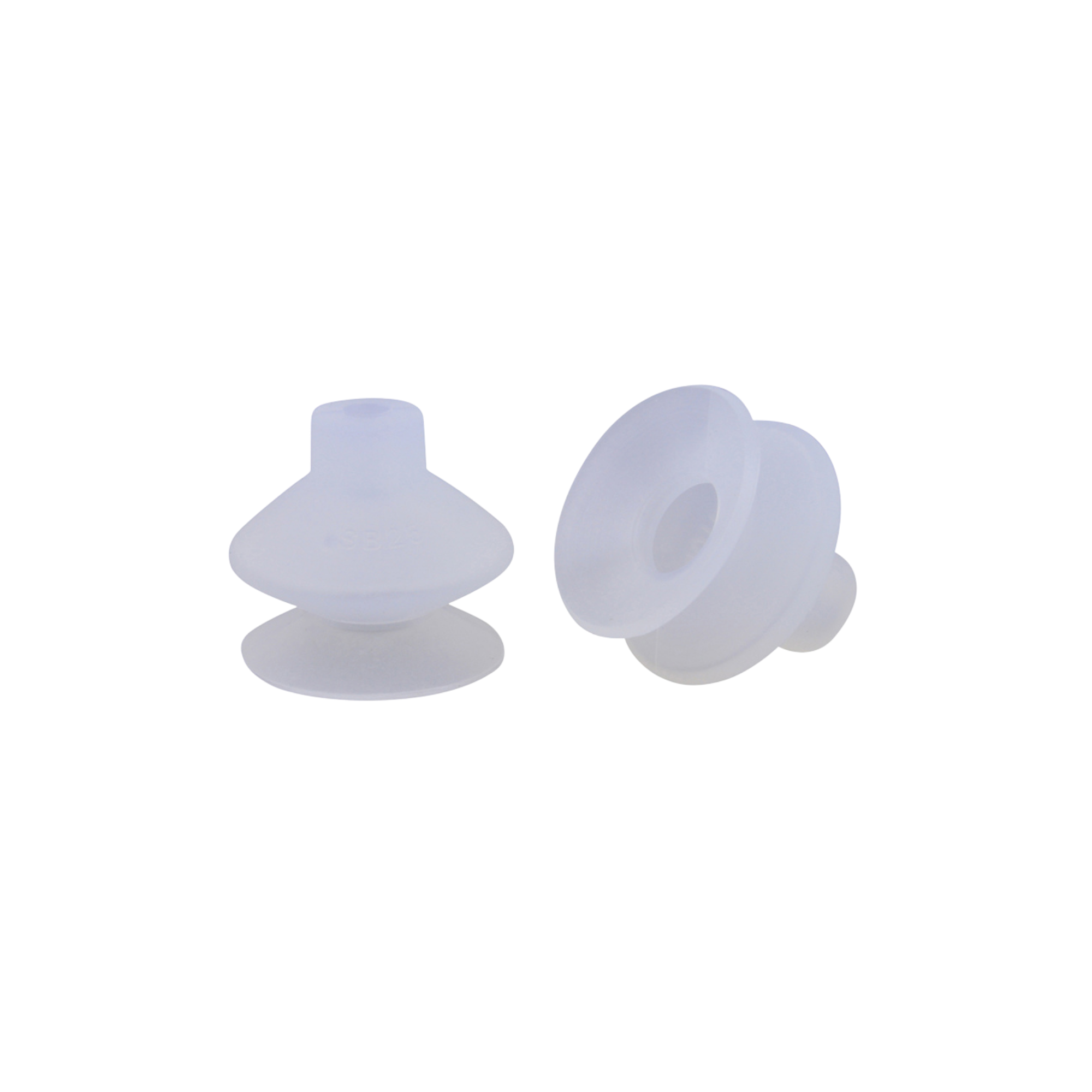

VacMotion | 23.5mm single bellows FDA Silicone suction cup | SB25-SIT

Mfr. Part #: SB25-SIT

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

ID #: 213298

25 mm, 1.5-bellows FDA silicone suction cup designed for vacuum handling applications. The flexible bellows construction helps compensate for uneven surfaces and height differences while providing reliable gripping performance. FDA silicone is suitable for applications requiring food-contact-compatible materials and offers excellent resistance to weathering and ozone.

Compatible Products: Recommended replacements include VSA25SI, B1.5-25-SIT, FGA 25 SI-55 N016, 10.01.06.00109, 23.025.018.2, VCC-B-094-S, and 5427A105. Compatible fittings include M5 male, G1/8" male, G1/8" female, 1/8" NPT male, 1/8" NPT female, and 10-32 barb fittings.
Feature Set
• 1.5-bellows design

• FDA silicone construction

• 25 mm diameter

• Height compensation

• Food-contact applications

• Good wear resistance

• Excellent ozone resistance

• Wide temperature range

Specification	Details
Style	Bellows
Material	FDA Silicone
Outside Diameter	25.0 mm
Bellows	1.5
Thread Size	None
Cleats	No
Color	Translucent
Weight	0.008 lbs.
Fitting Included	No
Horizontal Lifting Capacity at 6 inHg	0.90 lbs.
Vertical Lifting Capacity at 6 inHg	0.45 lbs.
Horizontal Lifting Capacity at 18 inHg	2.70 lbs.
Vertical Lifting Capacity at 18 inHg	1.35 lbs.
Horizontal Lifting Capacity at 27 inHg	4.05 lbs.
Vertical Lifting Capacity at 27 inHg	2.03 lbs.
Wear Resistance	Good
Oil Resistance	Good
Weather & Ozone Resistance	Excellent
Temperature Range	-94 to 392 °F (-70 to +200 °C)
