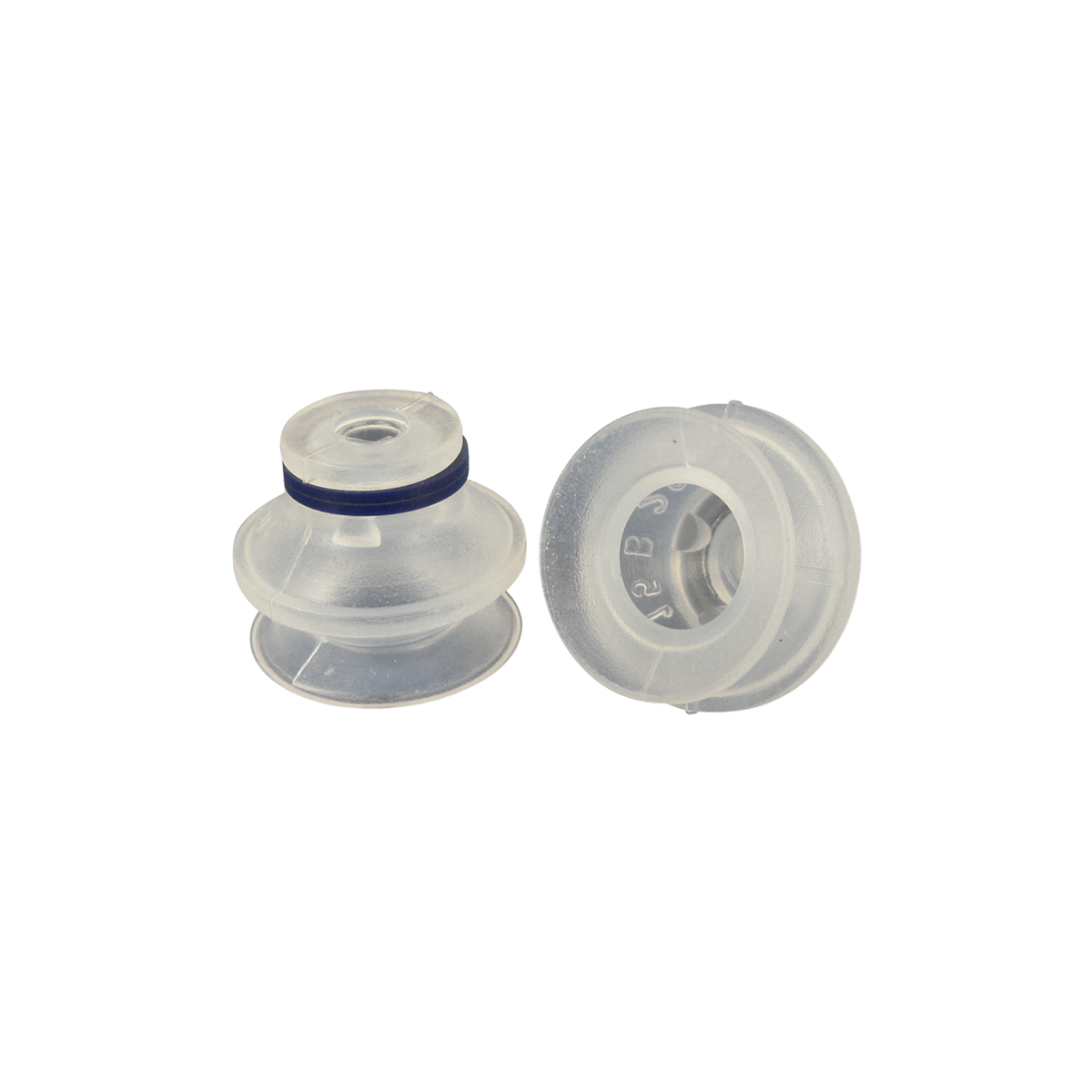

VacMotion | 21mm single bellows FDA Silicone suction cup | PSB20-SIT

Mfr. Part #: PSB20-SIT

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

ID #: 222191

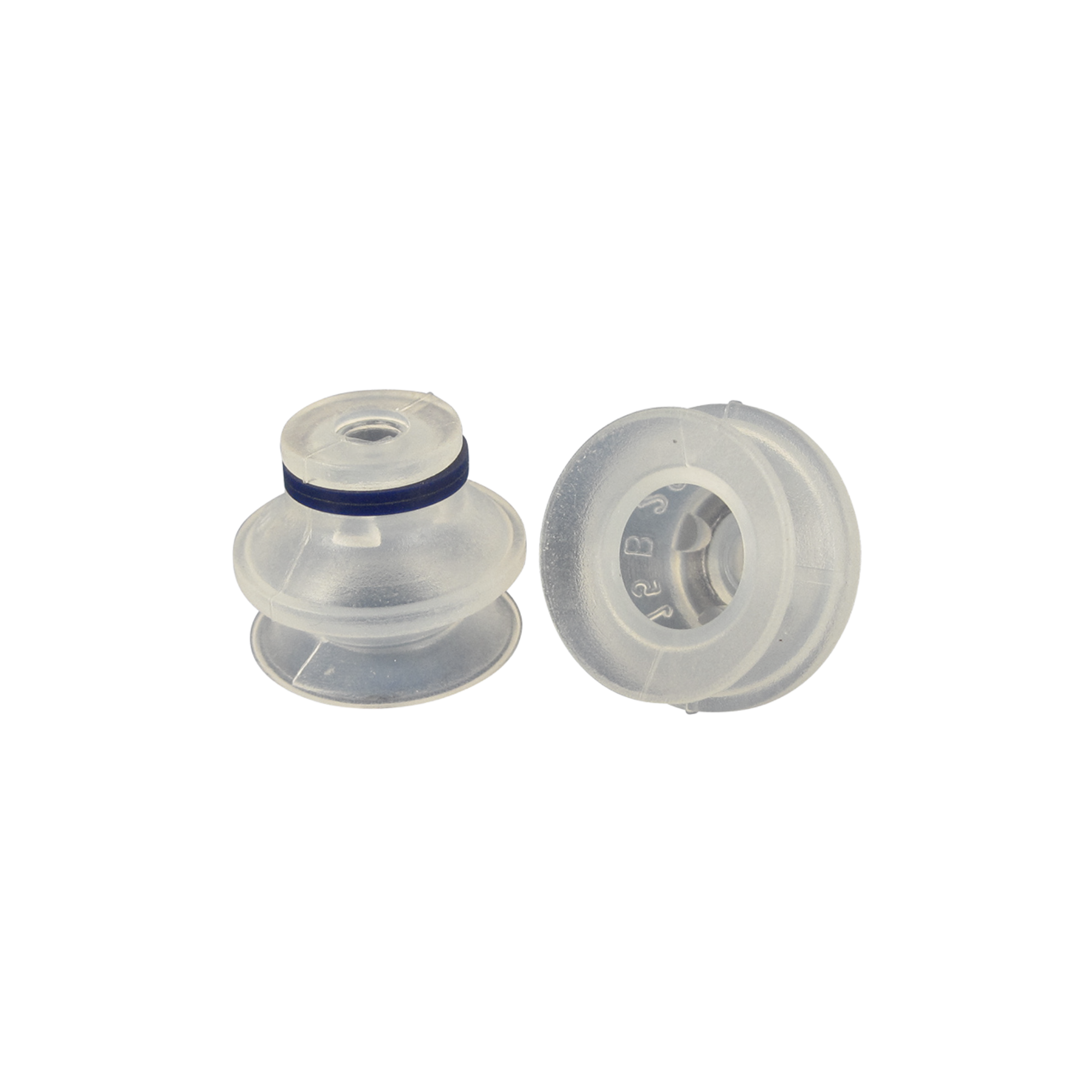

21 mm, 1.5-bellows FDA silicone suction cup designed for vacuum handling applications. The flexible bellows construction provides level compensation for uneven surfaces and helps with sheet separation and de-stacking. FDA silicone offers good wear and oil resistance with excellent weather and ozone resistance.

Compatible Products: Recommended replacement cups include VSAB20SI, VB20-WS, B20-SIT, A-3150103S, 0200405, B20.21, 23.020.026.2, GSV BOS 20, 642, 9909700, VCR-B20P-S, and 210.020.031.02. Compatible fittings include G1/8" female with filter screen (401.027), G1/8" male flange/barb (401.003), G1/8" male/M5 female low-profile fitting with screen (401.017), and 1/8" NPT male with mesh filter (401.037).
Feature Set
• 1.5-bellows design

• FDA silicone construction

• Good wear resistance

• Good oil resistance

• Excellent weather and ozone resistance

• Wide temperature range

• Multiple compatible fittings

• Multiple interchangeable replacements available

Specification	Details
Style	Bellows
Material	FDA Silicone
Outside Diameter	21.0 mm
Bellows	1.5
Thread Size	None
Cleats	No
Color	Translucent
Weight	0.0053 lbs.
Fitting Included	No
Horizontal Lifting Capacity at 6 inHg	0.64 lbs.
Vertical Lifting Capacity at 6 inHg	0.32 lbs.
Horizontal Lifting Capacity at 18 inHg	1.93 lbs.
Vertical Lifting Capacity at 18 inHg	0.96 lbs.
Horizontal Lifting Capacity at 27 inHg	2.89 lbs.
Vertical Lifting Capacity at 27 inHg	1.44 lbs.
Wear Resistance	Good
Oil Resistance	Good
Weather & Ozone Resistance	Excellent
Temperature Range	-94 to 392 °F (-70 to 200 °C)
