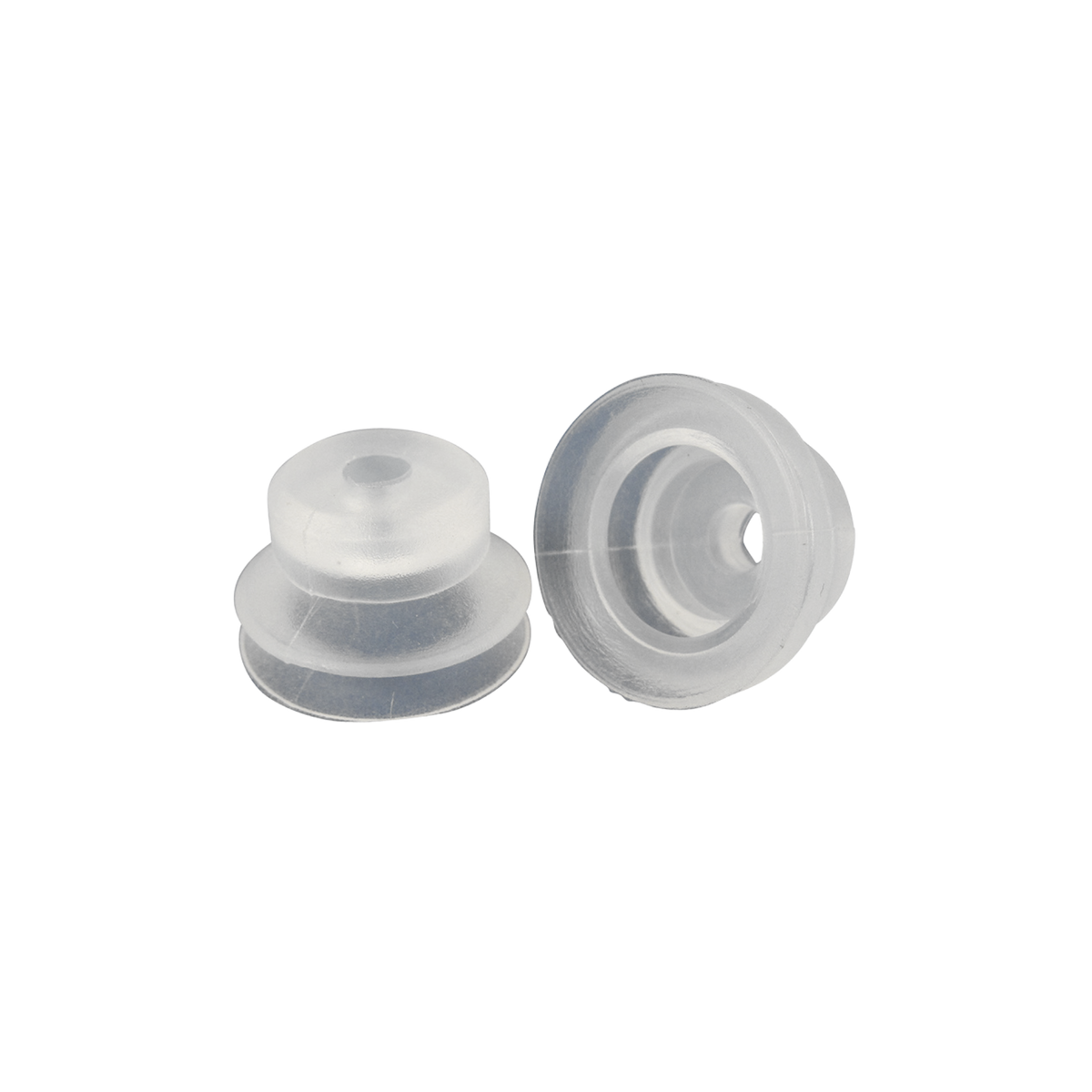

VacMotion | 20mm Single Bellows FDA Silicon Suction Cup | PB20-SIT

Mfr. Part #: PB20-SIT

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

ID #: 218547

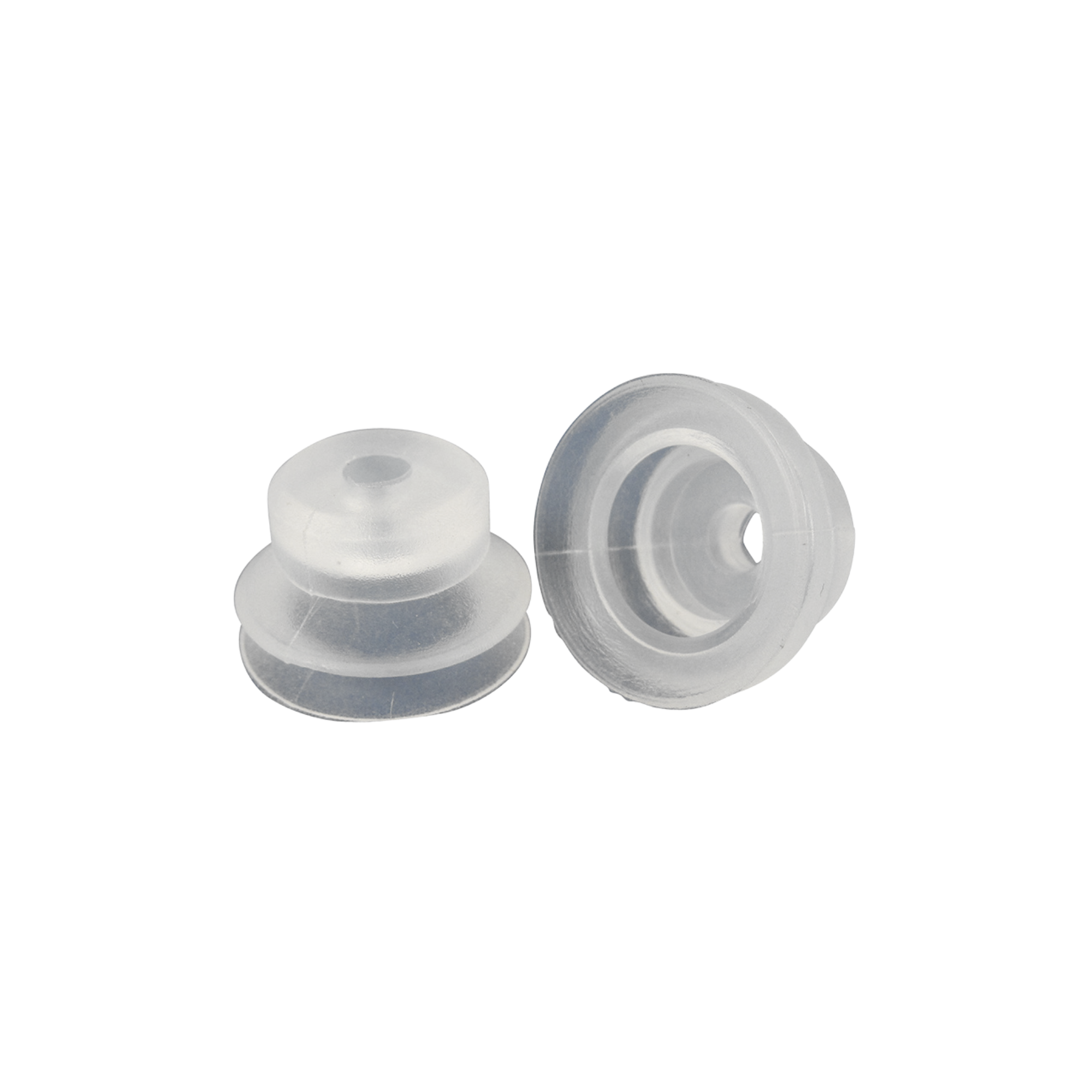

20 mm, 1.5-bellows FDA silicone suction cup designed for vacuum handling applications. The flexible bellows construction helps compensate for uneven surfaces and height differences while providing reliable gripping performance. FDA silicone provides good wear and oil resistance, excellent weather and ozone resistance, and a wide operating temperature range.

Compatible Products: Recommended replacements include PJG-20-SI, VSAJ20SI, C-BS1.5-20-SIT, 23.020.154.2/11, 210.020.150.02, 05003/A, and TPG-I0503. Compatible fitting: G1/8" female fitting (130.061).
Feature Set
• 1.5-bellows design

• FDA silicone construction

• Good wear resistance

• Good oil resistance

• Excellent weather and ozone resistance

• Wide temperature range

• G1/8" female fitting compatible

• Multiple replacement options

Specification	Details
Style	Bellows
Material	FDA Silicone
Outside Diameter	20.0 mm
Bellows	1.5
Thread Size	None
Cleats	No
Color	Translucent
Weight	0.00529 lbs.
Fitting Included	No
Horizontal Lifting Capacity at 6 inHg	0.58 lbs.
Vertical Lifting Capacity at 6 inHg	0.29 lbs.
Horizontal Lifting Capacity at 18 inHg	1.75 lbs.
Vertical Lifting Capacity at 18 inHg	0.87 lbs.
Horizontal Lifting Capacity at 27 inHg	2.62 lbs.
Vertical Lifting Capacity at 27 inHg	1.31 lbs.
Wear Resistance	Good
Oil Resistance	Good
Weather & Ozone Resistance	Excellent
Temperature Range	-94 to 392 °F (-70 to 200 °C)
