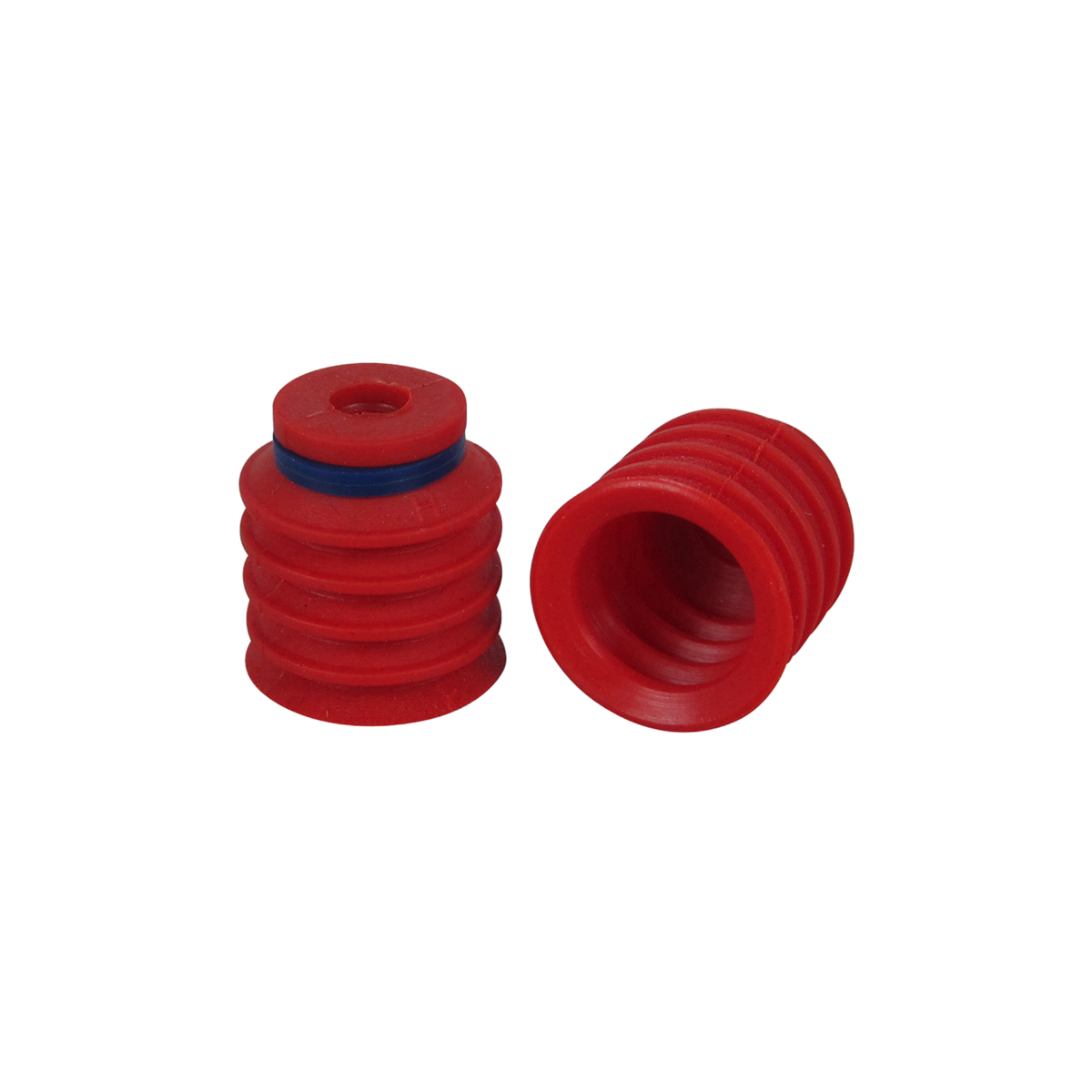

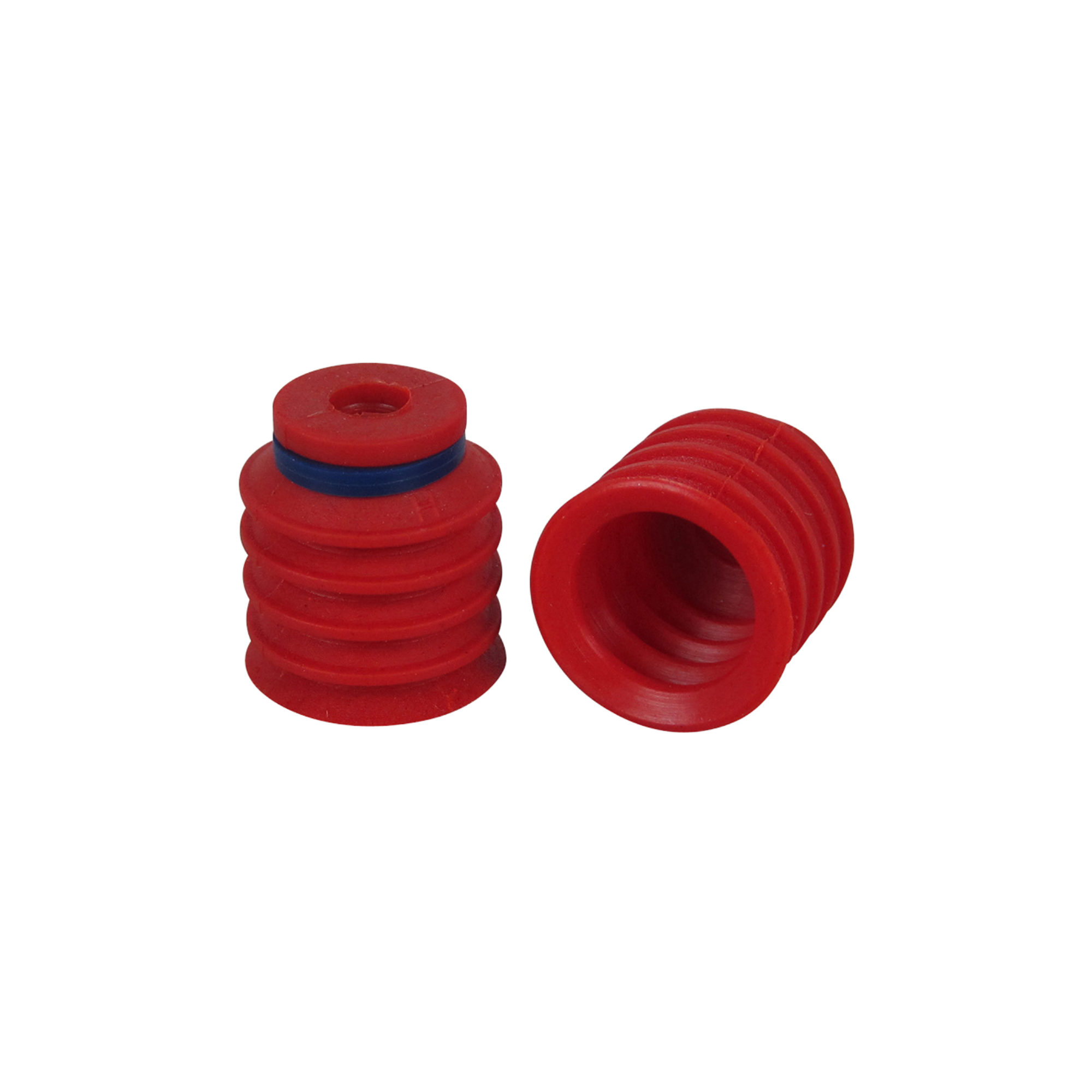

VacMotion | 20mm 4.5 bellows Silicone suction cup | PMB20-SIR

Mfr. Part #: PMB20-SIR

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

ID #: 222202

20 mm, 4.5-bellows silicone suction cup designed for vacuum handling applications. The multi-bellows construction provides flexibility for uneven surfaces and height differences while maintaining reliable gripping performance. Silicone construction offers good wear and oil resistance with excellent weather and ozone resistance.

Compatible Products: Recommended replacement cups include BL20-2.20, 0101116, XP-BL20S, VFBL20-2S, 240.020.002.02R, and S.BL202S50. Compatible fittings include G1/8" female with filter screen (401.027), G1/8" male flange/barb (401.003), G1/8" male with screen (401.011), G1/8" male/M5 female low-profile fitting with screen (401.017), and 1/8" NPT male with mesh filter (401.037).
Feature Set
• 4.5-bellows design

• Silicone construction

• Good wear resistance

• Good oil resistance

• Excellent weather and ozone resistance

• Wide temperature range

• Multiple compatible fittings

• Multiple interchangeable replacements available

Specification	Details
Style	Bellows
Material	Silicone
Outside Diameter	20.0 mm
Bellows	4.5
Thread Size	None
Cleats	No
Color	Red
Weight	0.0039 lbs.
Fitting Included	No
Horizontal Lifting Capacity at 6 inHg	0.58 lbs.
Vertical Lifting Capacity at 6 inHg	0.29 lbs.
Horizontal Lifting Capacity at 18 inHg	1.75 lbs.
Vertical Lifting Capacity at 18 inHg	0.87 lbs.
Horizontal Lifting Capacity at 27 inHg	2.62 lbs.
Vertical Lifting Capacity at 27 inHg	1.31 lbs.
Wear Resistance	Good
Oil Resistance	Good
Weather & Ozone Resistance	Excellent
Temperature Range	-94 to 392 °F (-70 to 200 °C)
