VacMotion | 18mm 2.5 bellows NBR suction cup | MB18-NBR

Mfr. Part #: MB18-NBR

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

ID #: 222398

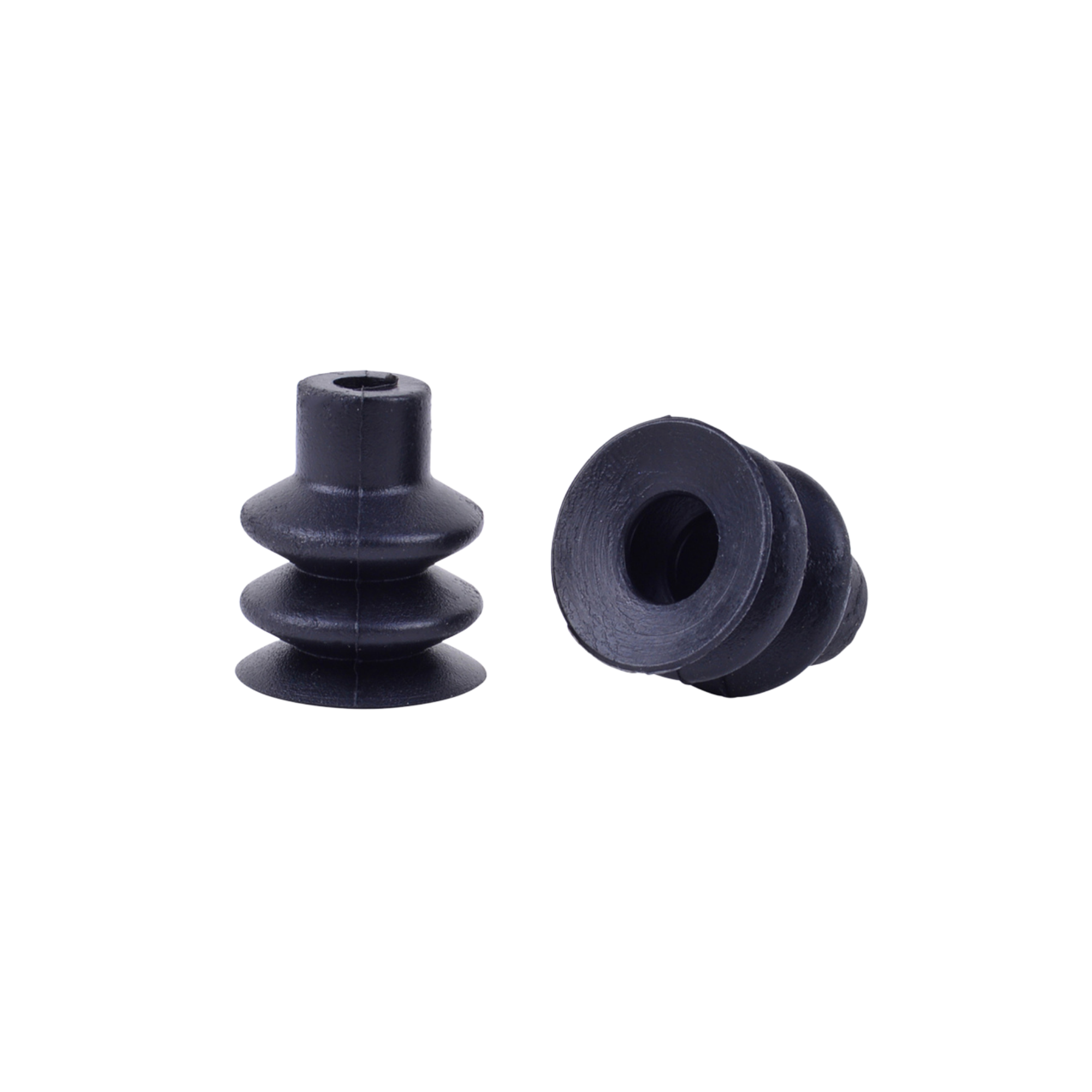

18 mm, 2.5-bellows NBR suction cup designed for vacuum handling applications. The flexible bellows construction helps compensate for uneven or curved surfaces while providing reliable gripping performance. NBR material offers good wear and oil resistance with excellent weather and ozone resistance.

Compatible Products: Recommended replacement cups include B2.5-18-NBR-18M and 5427A615. Compatible fitting includes 1/8" NPT male fitting (VB18M).
Feature Set
• 2.5-bellows design

• NBR rubber construction

• Good wear resistance

• Good oil resistance

• Excellent weather and ozone resistance

• Wide temperature range

• 1/8" NPT male fitting included

• Multiple interchangeable replacements available

Specification	Details
Style	Bellows
Material	NBR
Outside Diameter	18.0 mm
Bellows	2.5
Thread Size	1/8" male
Cleats	No
Color	Black
Weight	0.013 lbs.
Fitting Included	Yes
Horizontal Lifting Capacity at 6 inHg	0.47 lbs.
Vertical Lifting Capacity at 6 inHg	0.23 lbs.
Horizontal Lifting Capacity at 18 inHg	1.41 lbs.
Vertical Lifting Capacity at 18 inHg	0.70 lbs.
Horizontal Lifting Capacity at 27 inHg	2.12 lbs.
Vertical Lifting Capacity at 27 inHg	1.06 lbs.
Wear Resistance	Good
Oil Resistance	Good
Weather & Ozone Resistance	Excellent
Temperature Range	-40 to 266 °F (-40 to +130 °C)
