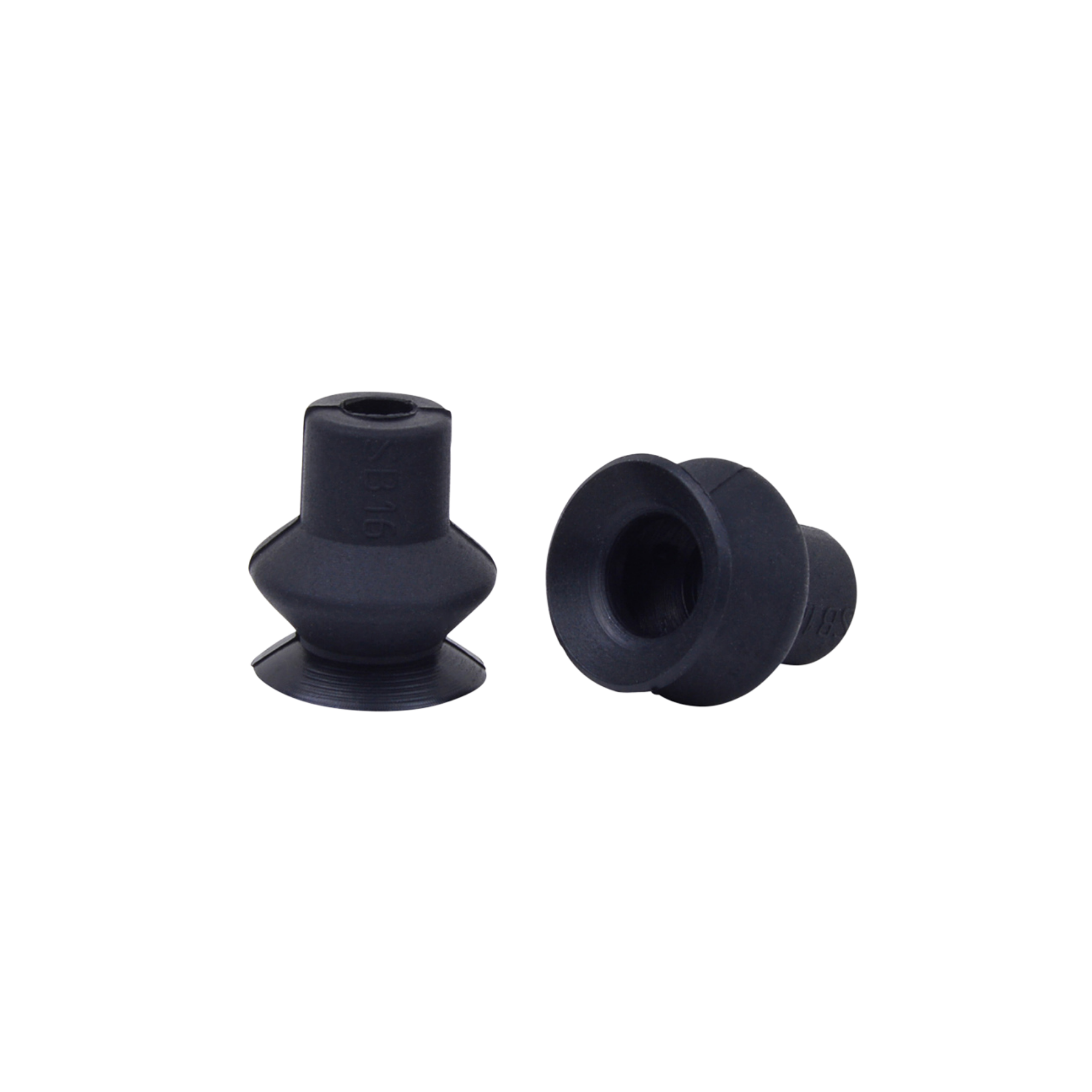

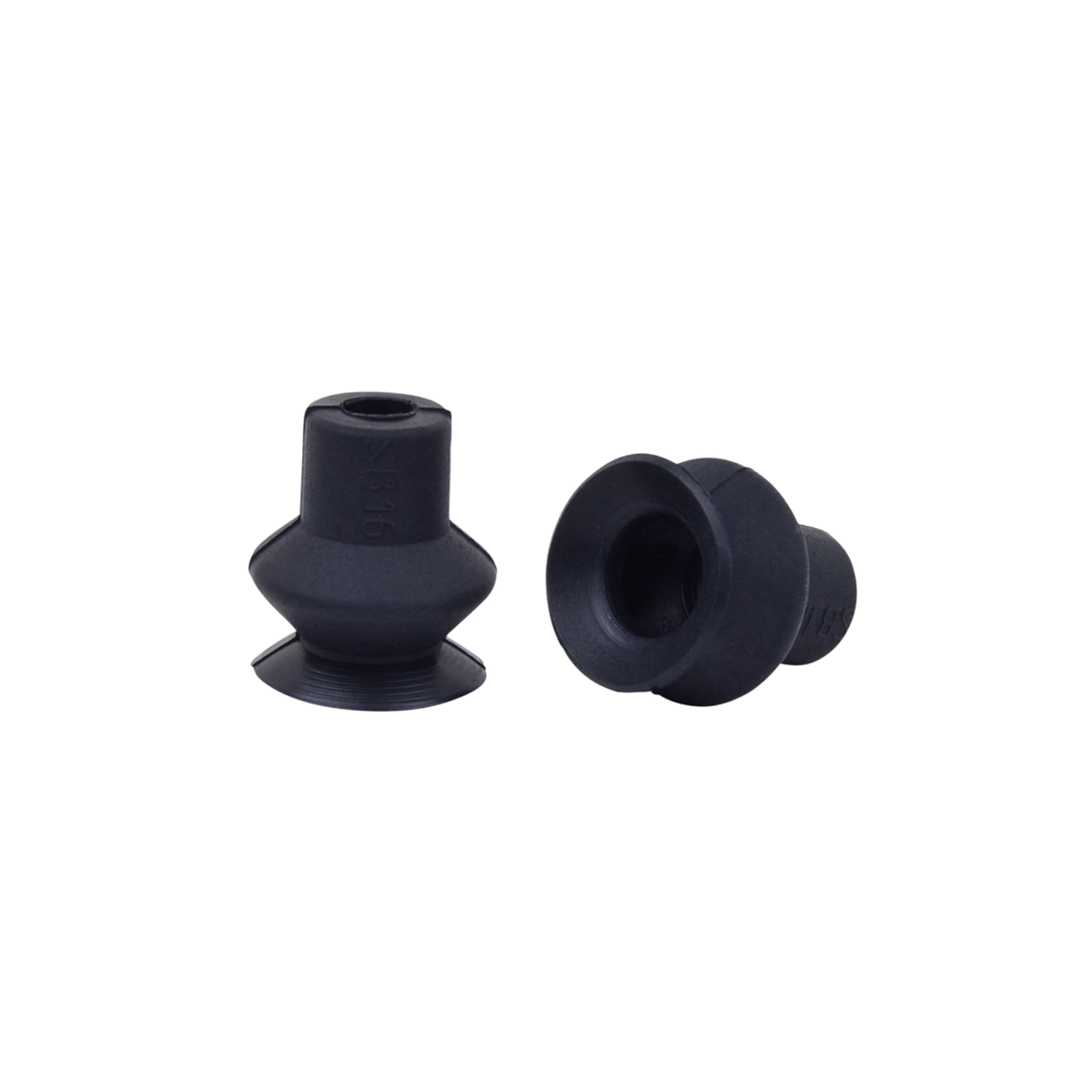

VacMotion | 16mm Single Bellows NBR Suction Cup | SB16-NBR

Mfr. Part #: SB16-NBR

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

ID #: 217298

16 mm, 1.5-bellows NBR suction cup designed for vacuum handling applications. The flexible bellows construction helps compensate for height differences and uneven surfaces while providing reliable gripping performance. NBR construction offers good wear and oil resistance with excellent weather and ozone resistance.

Compatible Products: Recommended replacements include VSA16NBR, B1.5-16-NBR, FGA 16 NBR-55 N016, 10.01.06.00096, 23.016.016.1, 5427A102, VCC-B-063-N, and 5427A103. Compatible fittings include M5 male (130.013C), G1/8" male (401.002), G1/8" female (401.026), 1/8" NPT male (VB18M), 1/8" NPT female (401.025), and 10-32 barb (411.001).
Feature Set
• 1.5-bellows design

• NBR rubber construction

• Height compensation

• Good wear resistance

• Good oil resistance

• Excellent weather and ozone resistance

• Wide temperature range

• Multiple compatible fittings

Specification	Details
Style	Bellows
Material	NBR
Outside Diameter	16.0 mm
Bellows	1.5
Thread Size	None
Cleats	No
Color	Black
Weight	0.0026 lbs.
Fitting Included	No
Horizontal Lifting Capacity at 6 inHg	0.37 lbs.
Vertical Lifting Capacity at 6 inHg	0.18 lbs.
Horizontal Lifting Capacity at 18 inHg	1.12 lbs.
Vertical Lifting Capacity at 18 inHg	0.56 lbs.
Horizontal Lifting Capacity at 27 inHg	1.68 lbs.
Vertical Lifting Capacity at 27 inHg	0.84 lbs.
Wear Resistance	Good
Oil Resistance	Good
Weather & Ozone Resistance	Excellent
Temperature Range	-40 to 266 °F (-40 to +130 °C)
