Mfr. Part #: PF15-SIR
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.
ID #: 216618

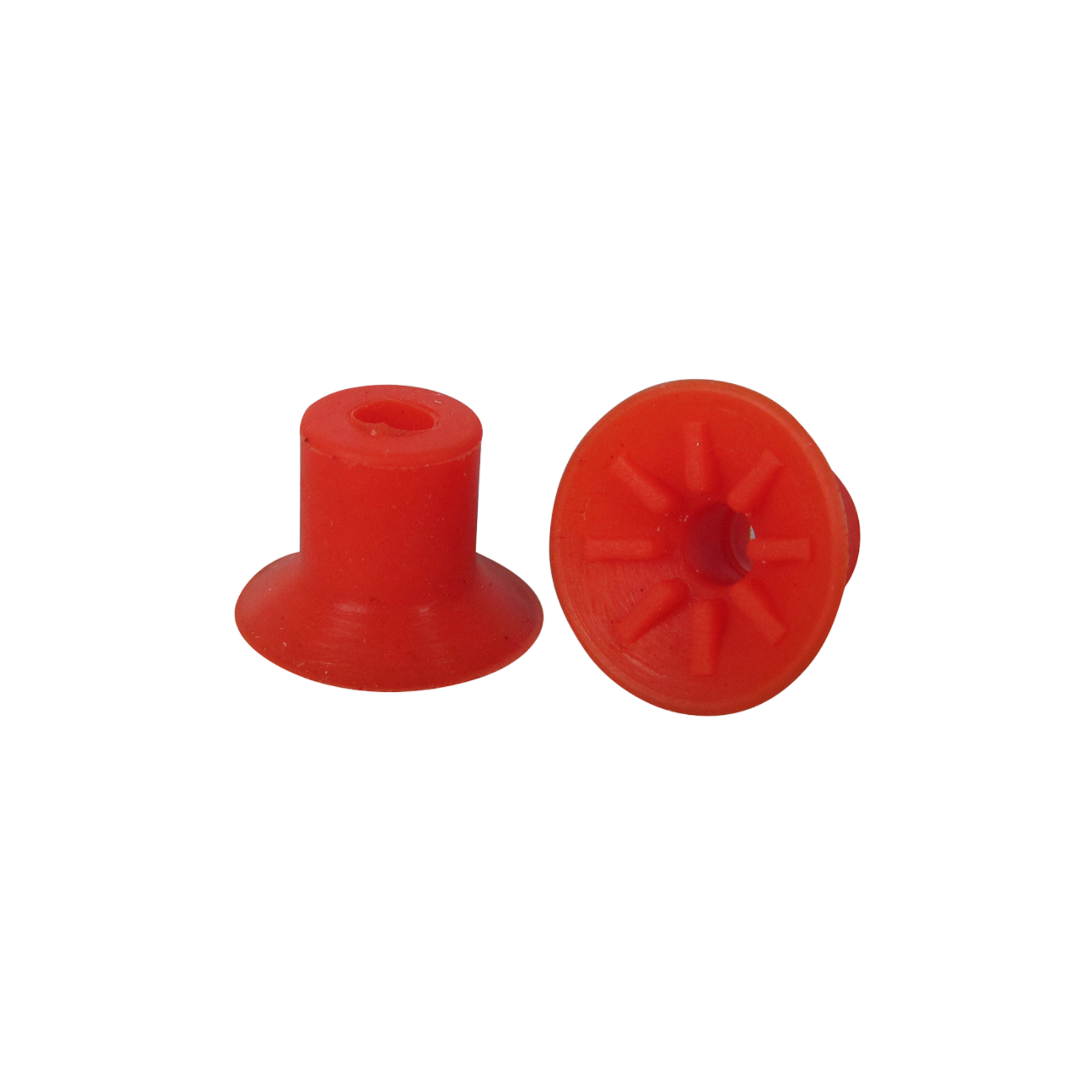

16.5 mm flat silicone suction cup with cleats, designed for vacuum handling applications requiring a secure grip on relatively flat surfaces. The cleated contact surface helps improve gripping performance, while silicone construction provides good wear and oil resistance with excellent weather and ozone resistance.
| Specification | Details |
|---|---|
| Style | Flat |
| Material | Silicone |
| Outside Diameter | 16.5 mm |
| Bellows | None |
| Thread Size | M5 Male |
| Cleats | Yes |
| Color | Red |
| Weight | 0.0087 lbs. |
| Fitting Included | No |
| Horizontal Lifting Capacity at 6 inHg | 0.39 lbs. |
| Vertical Lifting Capacity at 6 inHg | 0.19 lbs. |
| Horizontal Lifting Capacity at 18 inHg | 1.19 lbs. |
| Vertical Lifting Capacity at 18 inHg | 0.59 lbs. |
| Horizontal Lifting Capacity at 27 inHg | 1.78 lbs. |
| Vertical Lifting Capacity at 27 inHg | 0.89 lbs. |
| Wear Resistance | Good |
| Oil Resistance | Good |
| Weather & Ozone Resistance | Excellent |
| Temperature Range | -94 to 392 °F (-70 to +200 °C) |
