VacMotion | 13mm single bellows FDA Silicone suction cup | SB14-SIT

Mfr. Part #: SB14-SIT

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

ID #: 222208

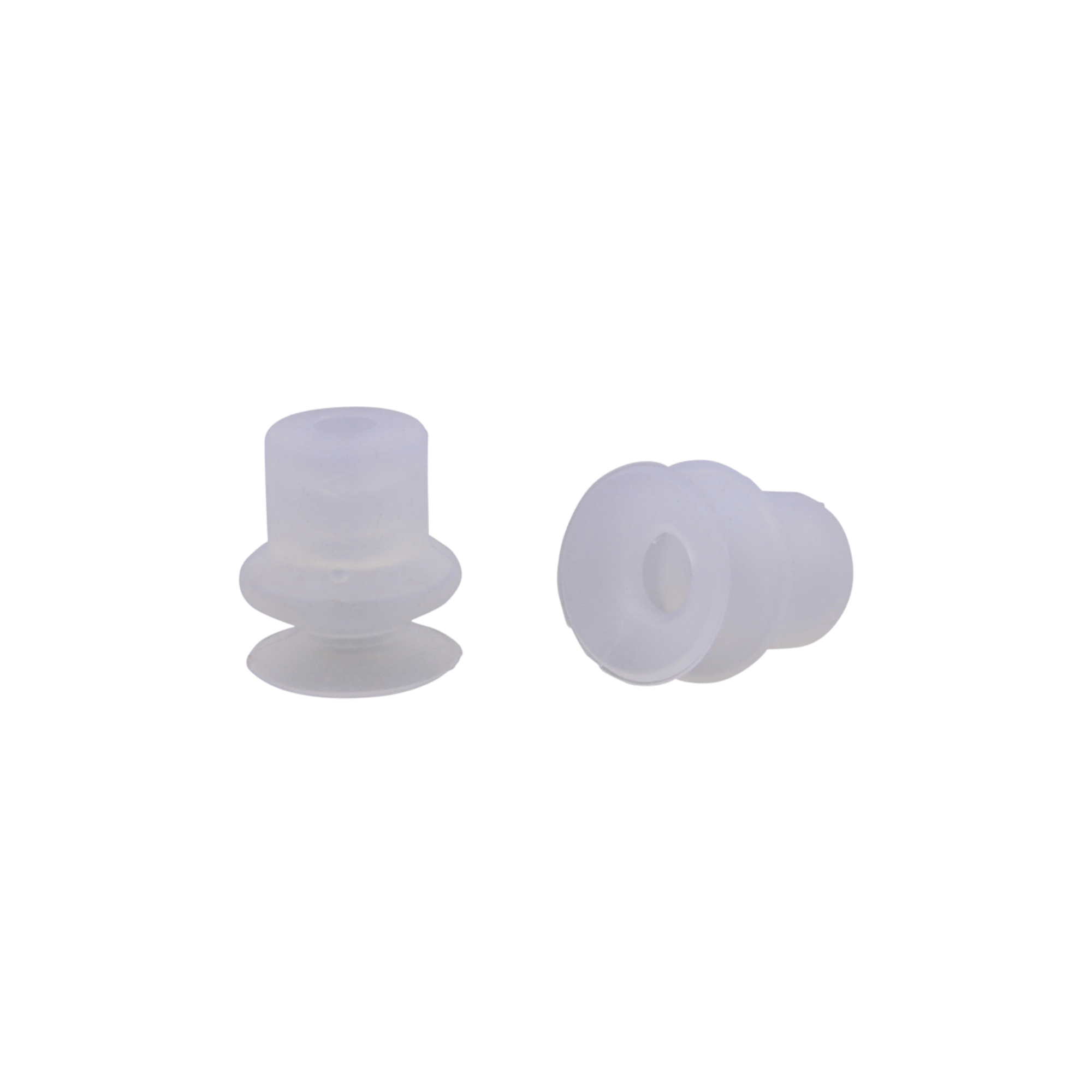

13 mm, 1.5-bellows FDA silicone suction cup designed for vacuum handling applications. The flexible bellows construction helps compensate for uneven or curved surfaces while providing reliable gripping performance. FDA silicone offers good wear and oil resistance with excellent weather and ozone resistance.

Compatible Products: Recommended replacement cups include VSA14SIT5, B1.5-14-SIT, FGA 14 SI-55 N016, 10.01.06.00371, VCC-B-051-S, and 3766A184. Compatible fittings include M5 male (130.013C), G1/8" male (401.002), G1/8" female (401.026), 1/8" NPT male (VB18M), 1/8" NPT female (401.025), and 10-32 barb (411.001).
Feature Set
• 1.5-bellows design

• FDA silicone construction

• Good wear resistance

• Good oil resistance

• Excellent weather and ozone resistance

• Wide temperature range

• Multiple compatible fittings

• Multiple interchangeable replacements available

Specification	Details
Style	Bellows
Material	FDA Silicone
Outside Diameter	13.0 mm
Bellows	1.5
Thread Size	None
Cleats	No
Color	Translucent
Weight	0.0022 lbs.
Fitting Included	No
Horizontal Lifting Capacity at 6 inHg	0.24 lbs.
Vertical Lifting Capacity at 6 inHg	0.12 lbs.
Horizontal Lifting Capacity at 18 inHg	0.74 lbs.
Vertical Lifting Capacity at 18 inHg	0.37 lbs.
Horizontal Lifting Capacity at 27 inHg	1.11 lbs.
Vertical Lifting Capacity at 27 inHg	0.55 lbs.
Wear Resistance	Good
Oil Resistance	Good
Weather & Ozone Resistance	Excellent
Temperature Range	-94 to 392 °F (-70 to 200 °C)
