Mfr. Part #: PSB10-NBR
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.
ID #: 222189

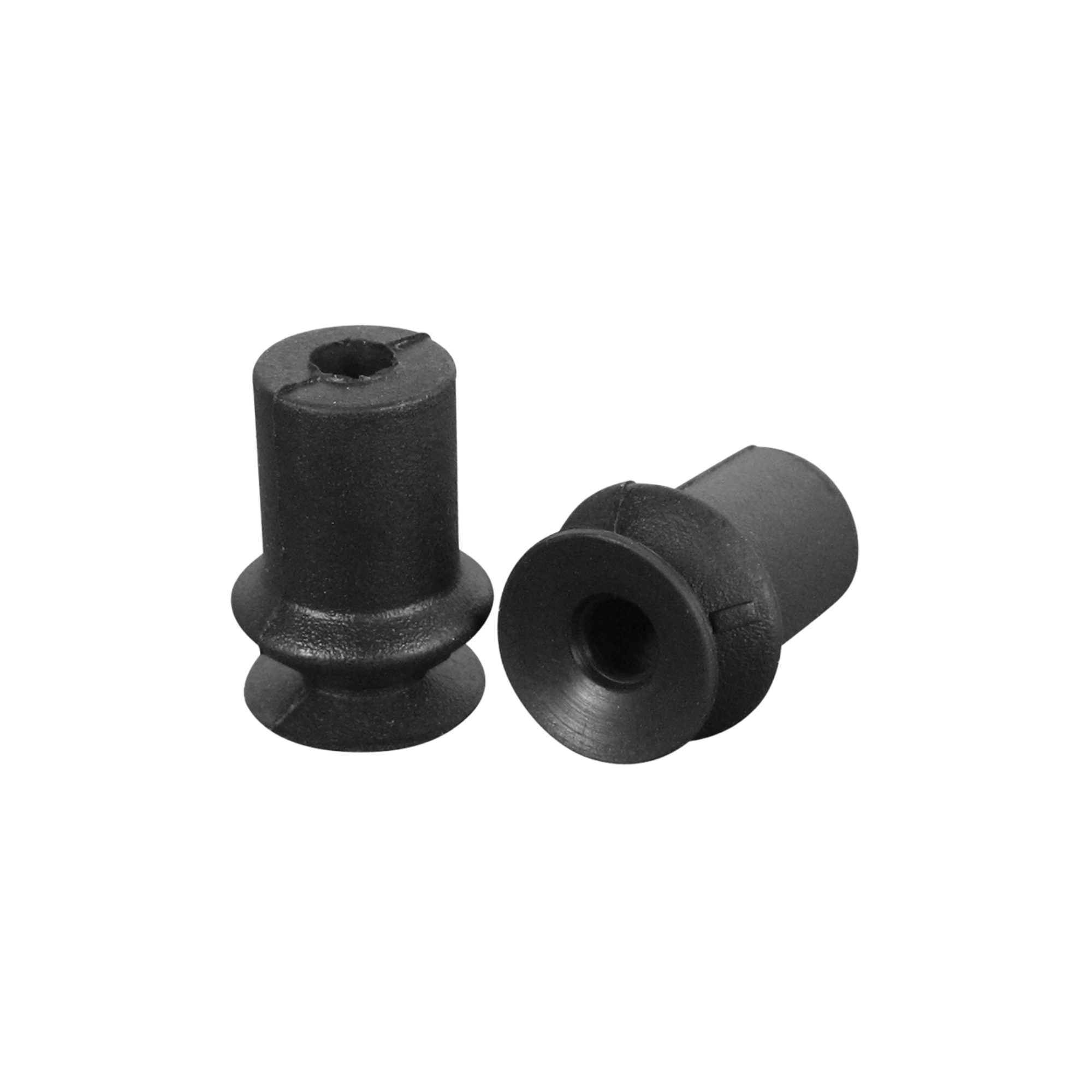

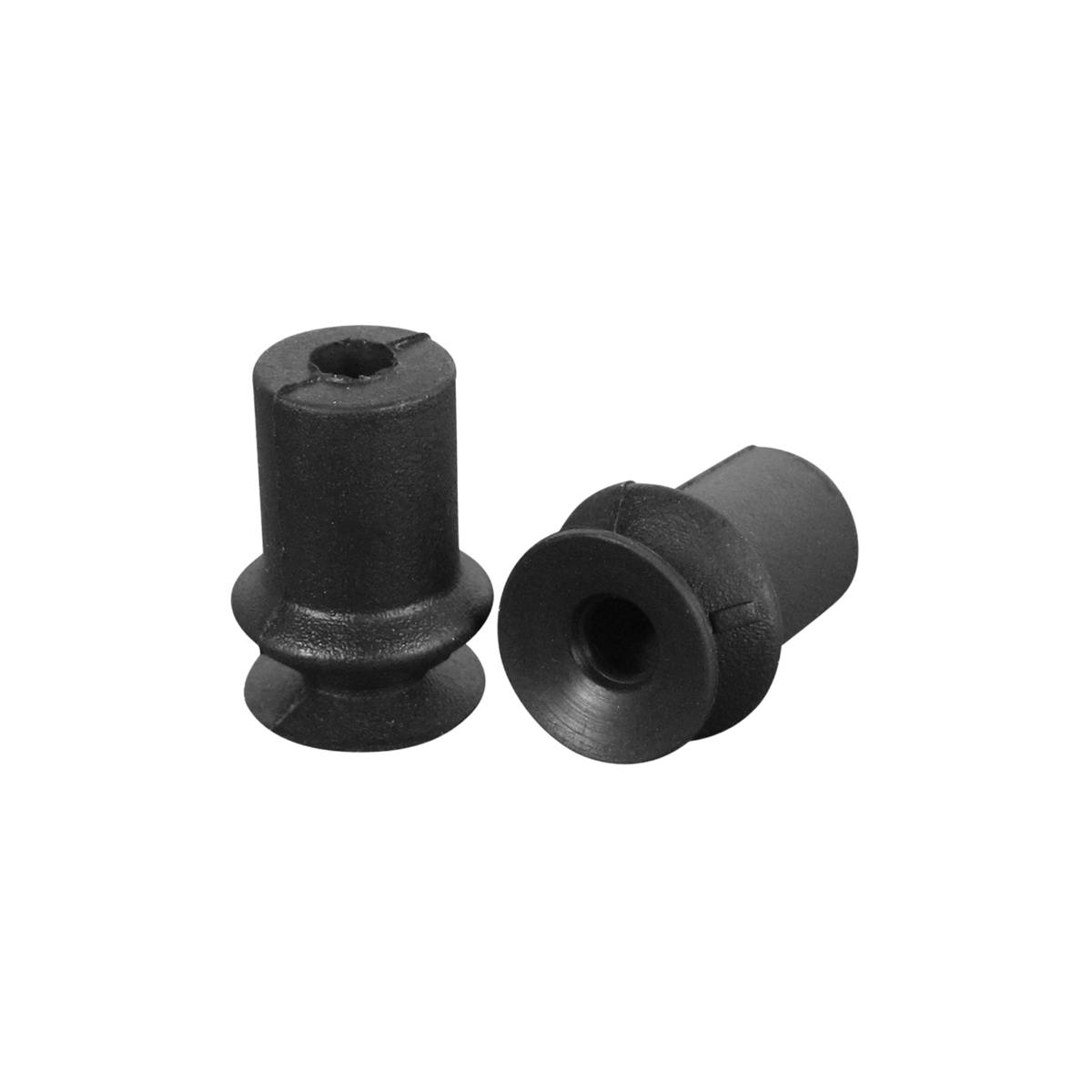

11 mm, 1.5-bellows NBR suction cup designed for vacuum handling applications. The flexible bellows construction helps compensate for uneven surfaces and height differences while providing reliable gripping performance. NBR construction offers good wear and oil resistance with excellent weather and ozone resistance.
Compatible Products: Recommended replacement cups include B10-2.10, VSAB10NBR, VB10-N, B10-NEO, B10-2-NEO, 3150101, 23.011.138.1, XP-B10N, GSV B10 2 10, 5117, GSV BON 11, 1146, B10.10, VFB10-2N, VCR-B10P-C, 210.011.001.01, and VP.3150101. Compatible fitting: M5 male barb fitting (130.134-2).
| Specification | Details |
|---|---|
| Style | Bellows |
| Material | NBR |
| Outside Diameter | 11.0 mm |
| Bellows | 1.5 |
| Thread Size | None |
| Cleats | No |
| Color | Black |
| Weight | 0.0022 lbs. |
| Fitting Included | No |
| Horizontal Lifting Capacity at 6 inHg | 0.17 lbs. |
| Vertical Lifting Capacity at 6 inHg | 0.08 lbs. |
| Horizontal Lifting Capacity at 18 inHg | 0.53 lbs. |
| Vertical Lifting Capacity at 18 inHg | 0.26 lbs. |
| Horizontal Lifting Capacity at 27 inHg | 0.79 lbs. |
| Vertical Lifting Capacity at 27 inHg | 0.39 lbs. |
| Wear Resistance | Good |
| Oil Resistance | Good |
| Weather & Ozone Resistance | Excellent |
| Temperature Range | -40 to 266 °F (-40 to +130 °C) |
