Mfr. Part #: 22003002
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

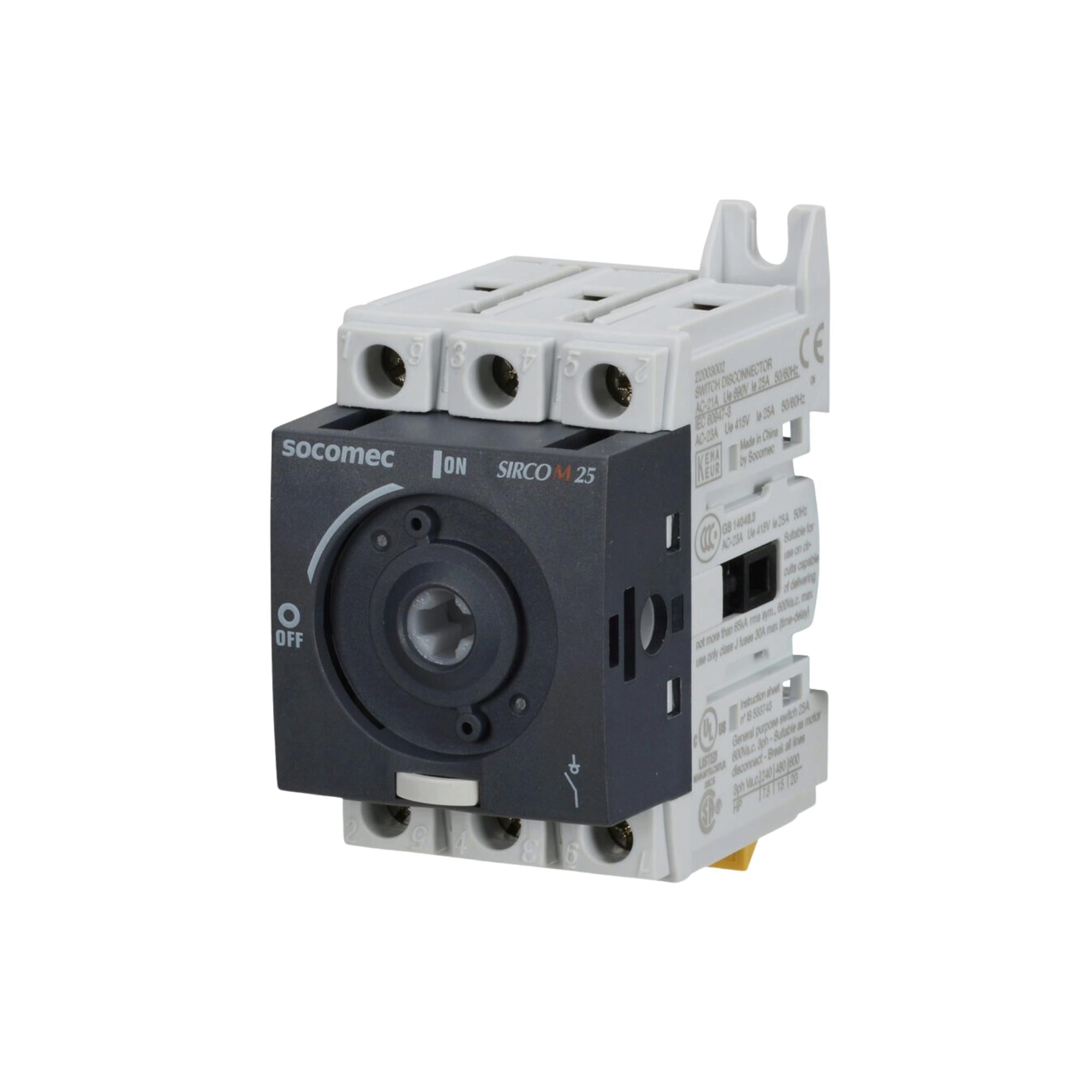

The Socomec SIRCO M Series Rotary Disconnect Switch is a reliable and versatile electrical switch designed for industrial and commercial applications. This load break-capable, 3-pole switch operates at 600 VAC and handles 25A, providing secure disconnection under load conditions. With a 65kA SCCR (Short-Circuit Current Rating), it ensures robust protection against short circuits, enhancing the safety of your electrical system.
Offering flexible installation options, the SIRCO M Series can be mounted on DIN rails or directly on panels, adapting to various system configurations. UL 508 rated, it meets high industry standards for industrial control equipment, making it suitable for use in control panels, machinery, and electrical distribution systems.
The switch supports front or side operation, allowing for easier access based on your setup needs. It also accepts a 5 x 5mm shaft, ensuring compatibility with a wide range of actuators for user-specific customization.
Ideal for isolating power during maintenance, managing machinery circuits, or protecting against overloads and faults, the Socomec SIRCO M Series Rotary Disconnect Switch combines reliability, safety, and flexibility for optimal electrical system performance.
| Specification | Details |
|---|---|
| Brand | Socomec |
| Item | Disconnect switch |
| Series | SIRCO M |
| Fusible | No |
| Load Break Capable | Yes |
| Number of Poles | 3 |
| Voltage Rating | 600 VAC |
| Amperage Rating | 25A |
| SCCR Rating | 65kA SCCR |
| Mounting | DIN rail or panel |
| UL Rating | UL 508 rated |
| Configuration | Front or side operated |
| Shaft Size | Accepts 5 x 5mm size shaft |
| Handle Type | Rotary |
ID #: 179666
