Mfr. Part #: SM2861-5252
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.
ID #: 222981

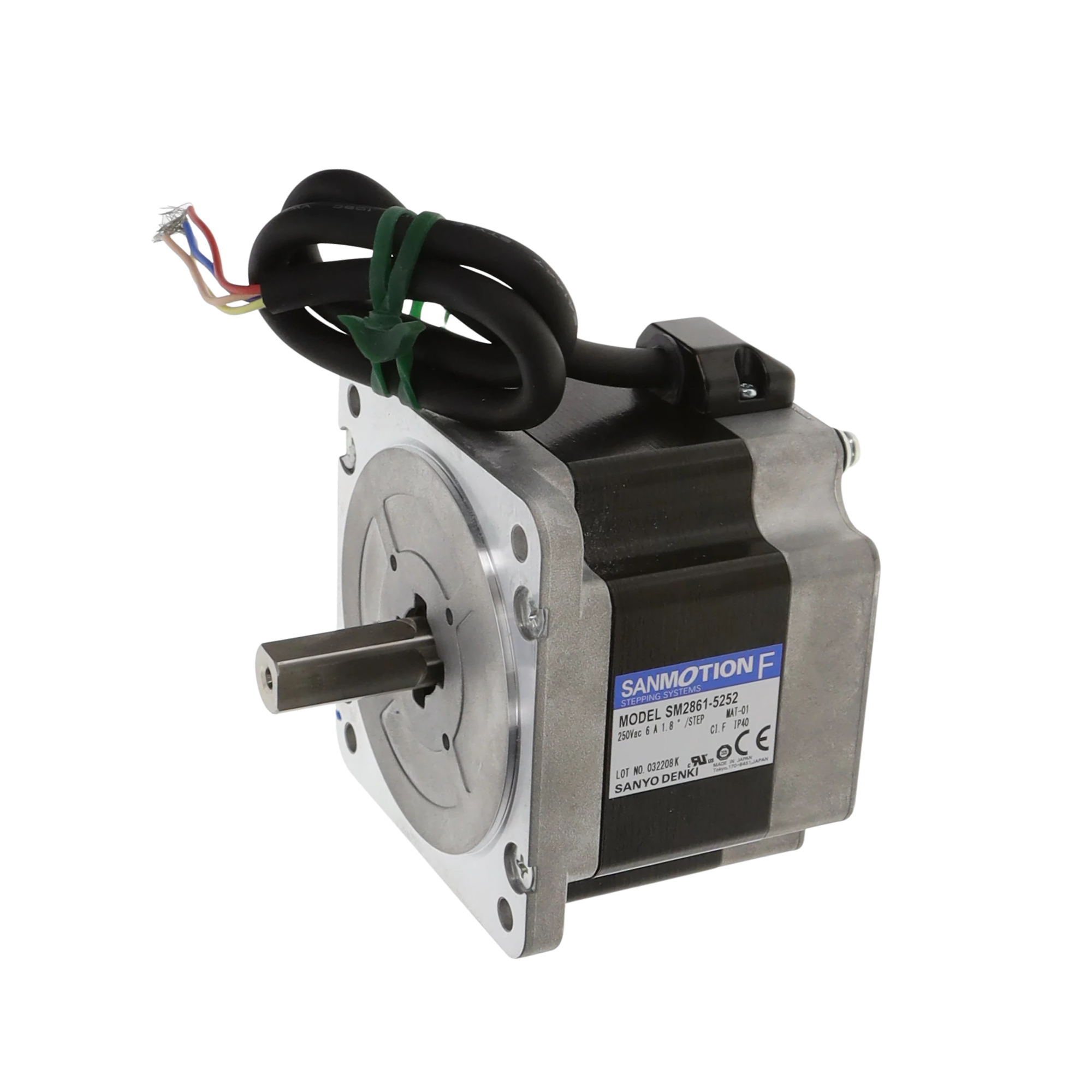

The SM2861-5252 is a SANMOTION 2-phase bipolar stepping motor designed for precise positioning in industrial automation applications. It features an 86 mm square frame, 3.3 N·m holding torque, 1.8° step angle, and single-shaft design.
| Series | SANMOTION |
| Type | 2-Phase Stepping Motor |
| Winding | Bipolar |
| Frame Size | 86 mm square (NEMA 34) |
| Step Angle | 1.8° |
| Steps per Revolution | 200 |
| Holding Torque | 3.3 N·m |
| Rated Current | 6 A/phase |
| Rated Voltage | 100 VAC |
| Winding Resistance | 0.29 Ω/phase |
| Winding Inductance | 1.7 mH/phase |
| Rotor Inertia | 1.48 × 10⁻⁴ kg·m² |
| Motor Length | 66 mm |
| Motor Mass | 1.75 kg |
| Shaft Diameter | 12.7 mm |
| Operating Temperature | -10 to 50°C |
| Termination | Wire Leads |
