Mfr. Part #: SS2501-8040
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.
ID #: 222980

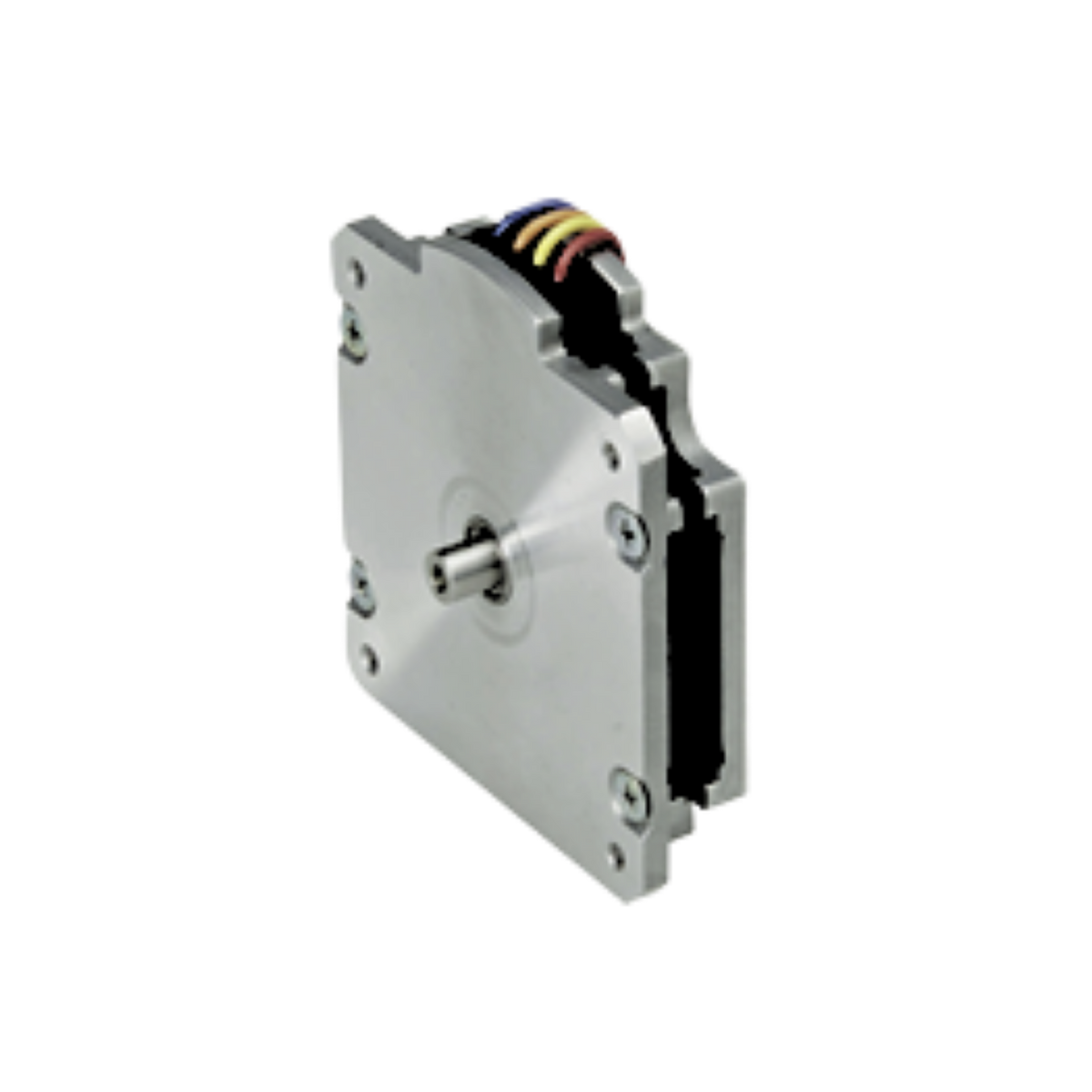

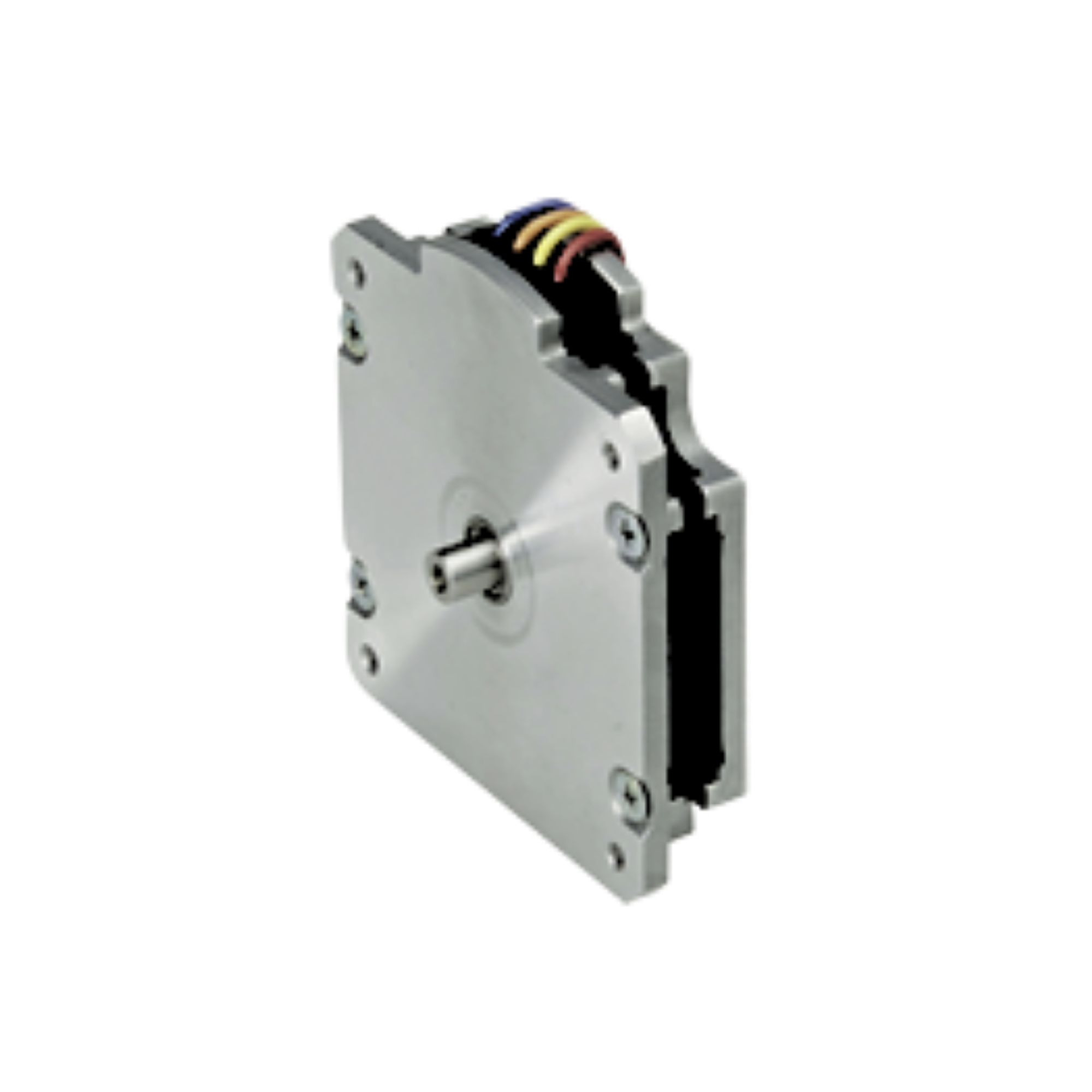

The SS2501-8040 is a SANMOTION F2 pancake-style 2-phase stepping motor designed for compact, precise motion applications. It features a 50 mm square frame, ultra-thin 11.4 mm body, 1.8° step angle, and 0.1 N·m holding torque.
| Series | SANMOTION F2 |
| Type | 2-Phase Stepping Motor |
| Motor Style | Pancake / Flat-Shaped |
| Winding | Bipolar |
| Frame Size | 50 × 50 mm |
| Motor Length | 11.4 mm |
| Step Angle | 1.8° |
| Steps per Revolution | 200 |
| Holding Torque | 0.1 N·m |
| Rated Current | 1 A/phase |
| Rated Voltage | 24 VDC |
| Winding Resistance | 4.5 Ω/phase |
| Winding Inductance | 2 mH/phase |
| Rotor Inertia | 0.026 × 10⁻⁴ kg·m² |
| Shaft Diameter | 5 mm |
| Motor Mass | 0.09 kg |
| Operating Temperature | -10 to 50°C |
| Termination | Wire Leads |
