Mfr. Part #: SH2145-5611
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.
ID #: 222979

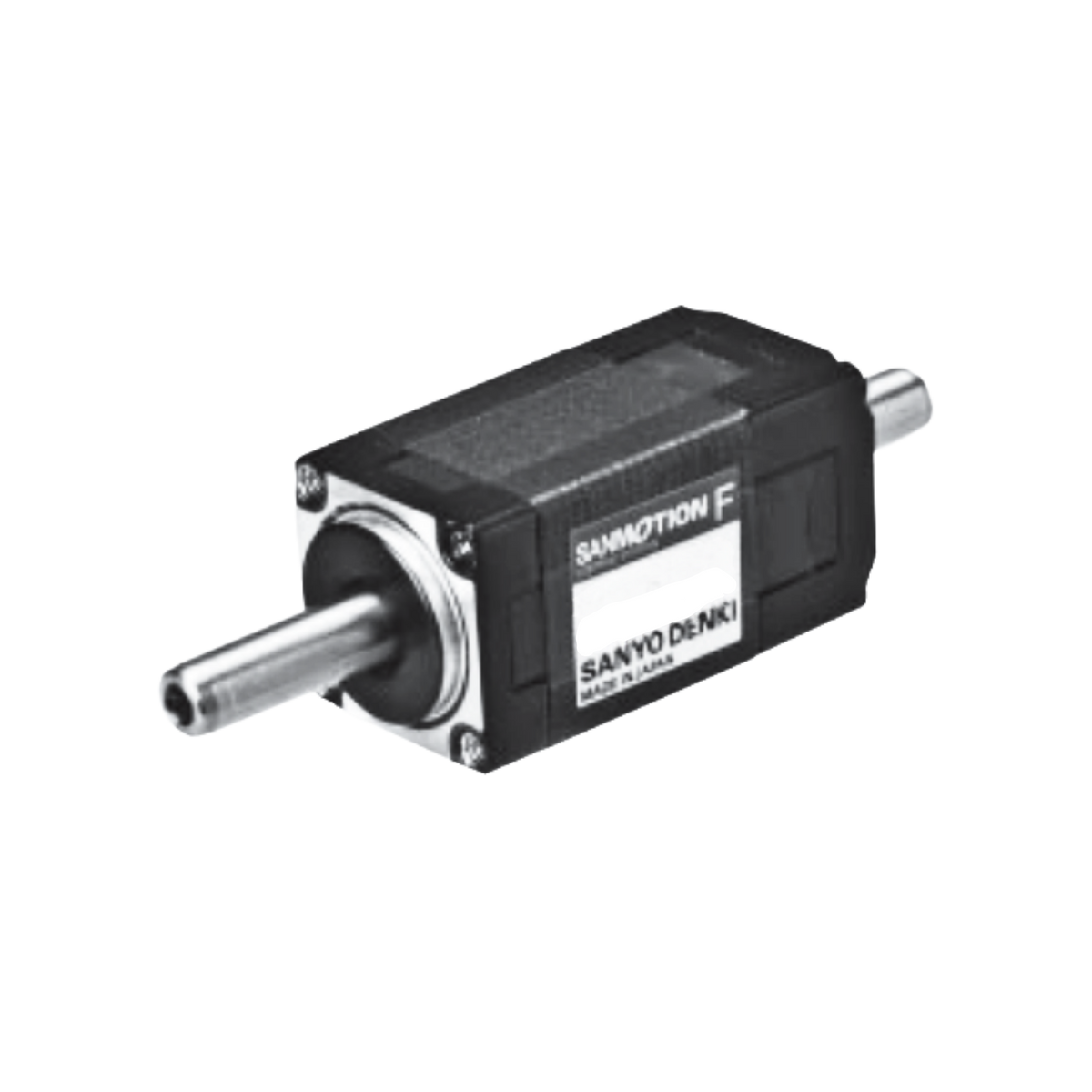

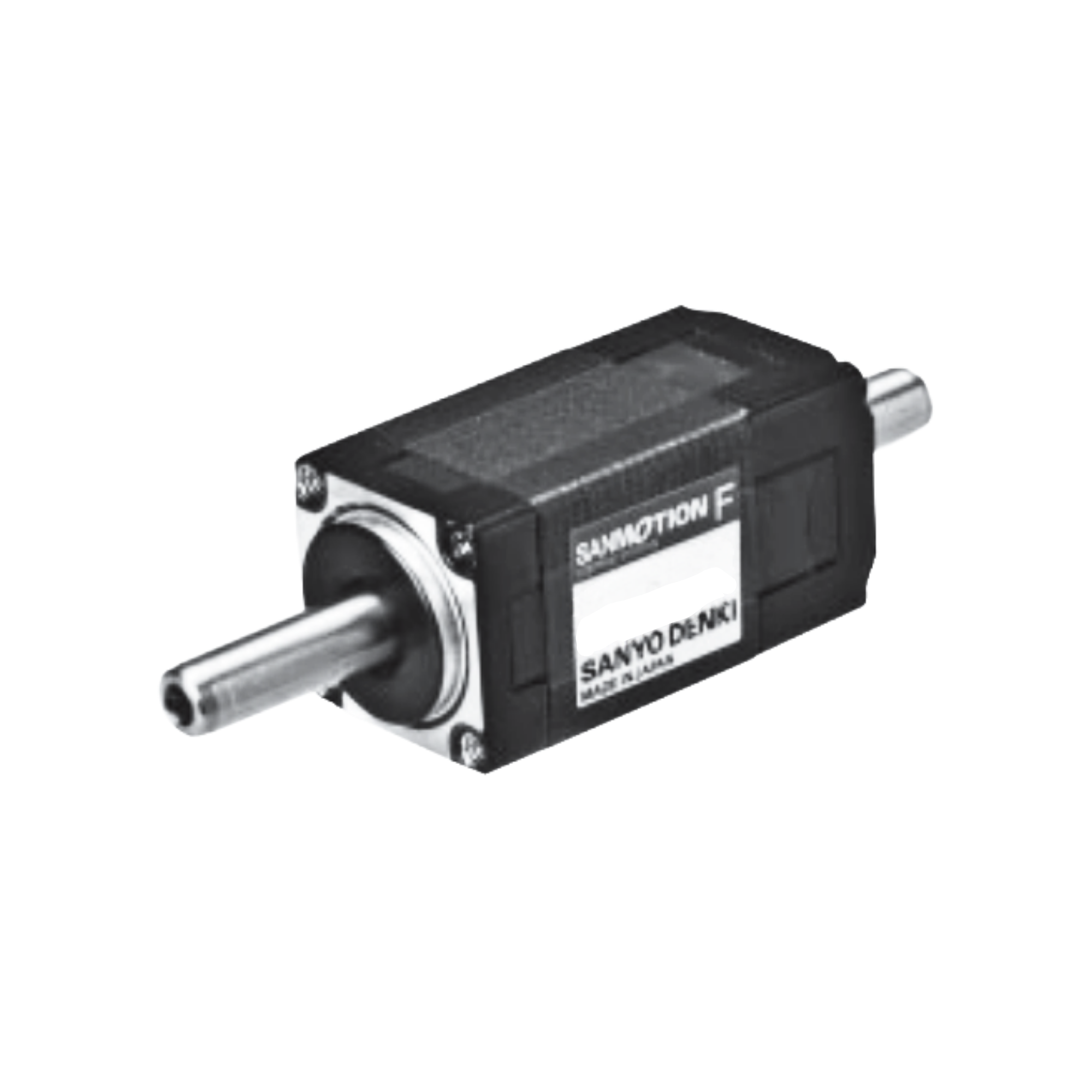

The SH2145-5611 is a SANMOTION F2 2-phase stepping motor designed for compact, precise motion applications. It features a 14 mm square frame, dual-shaft design, 1.8° step angle, and 0.01 N·m holding torque.
| Series | SANMOTION F2 |
| Type | 2-Phase Stepping Motor |
| Winding | Bipolar |
| Frame Size | 14 × 14 mm |
| Step Angle | 1.8° |
| Steps per Revolution | 200 |
| Holding Torque | 0.01 N·m |
| Rated Current | 0.4 A/phase |
| Rated Voltage | 24 VDC |
| Winding Resistance | 19 Ω/phase |
| Winding Inductance | 4 mH/phase |
| Rotor Inertia | 0.0011 × 10⁻⁴ kg·m² |
| Motor Length | 43.8 mm |
| Shaft Type | Dual Shaft |
| Shaft Diameter | 4 mm |
| Connection | Lead Wire |
| Motor Mass | 0.042 kg |
| Operating Temperature | -10 to +50°C |
