Mfr. Part #: GAM2A6060F0XRK0
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.
ID #: 222987

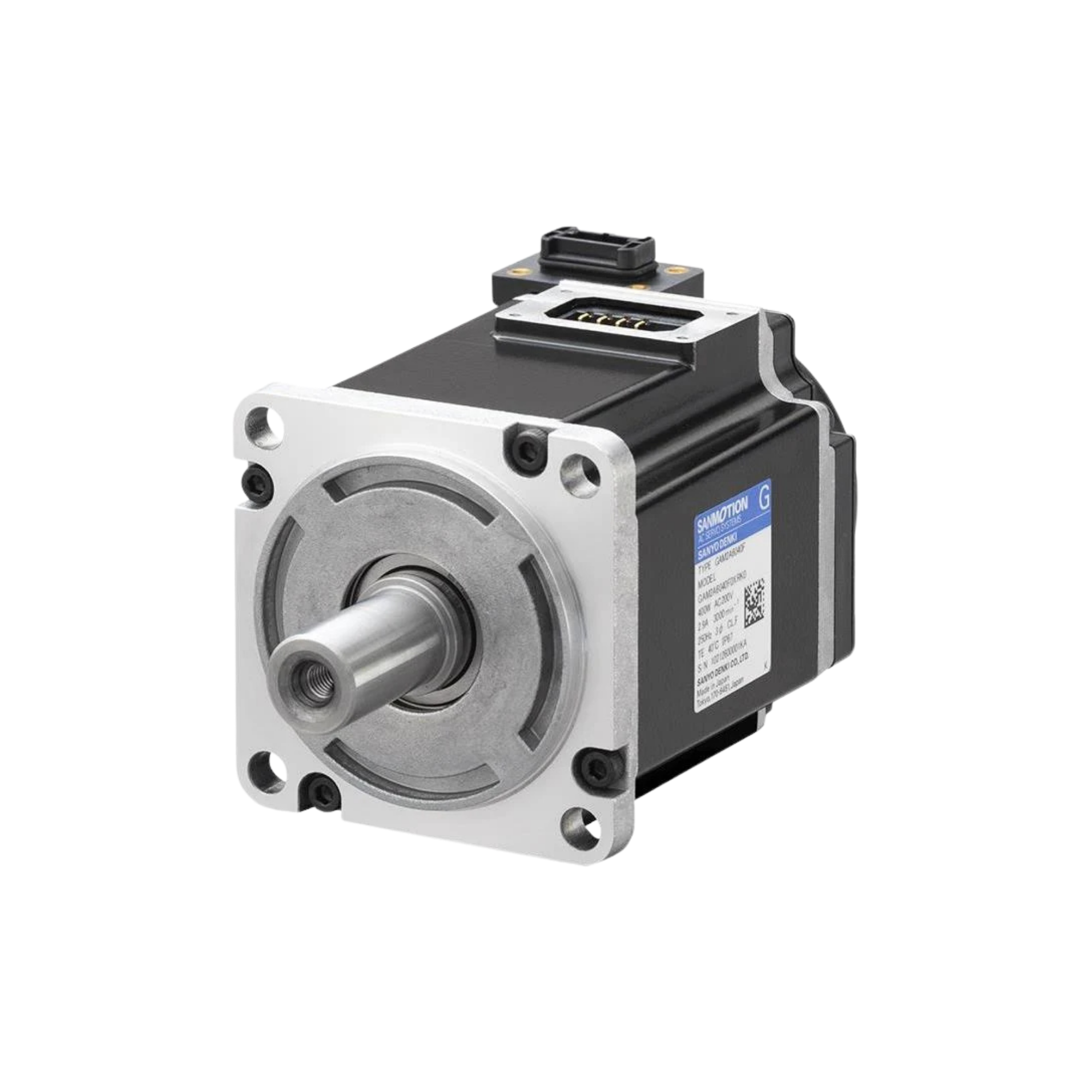

The GAM2A6060F0XRK0 is a SANMOTION G 600 W AC servo motor designed for precise motion control in industrial automation. It features a 60 mm square frame, 200 VAC operation, absolute encoder, and 1.91 N·m rated torque.
| Series | SANMOTION G |
| Type | AC Servo Motor |
| Rated Output | 600 W |
| Rated Voltage | 200 VAC |
| Frame Size | 60 × 60 mm |
| Rated Torque | 1.91 N·m |
| Peak Stall Torque | 7.1 N·m |
| Rated Speed | 3,000 min⁻¹ |
| Maximum Speed | 6,500 min⁻¹ |
| Encoder | Absolute |
| Rotor Inertia | 0.685 × 10⁻⁴ kg·m² |
| Brake | None |
| Motor Length | 115.5 mm |
