Mfr. Part #: GAM2A4015F0XRK0
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.
ID #: 222985

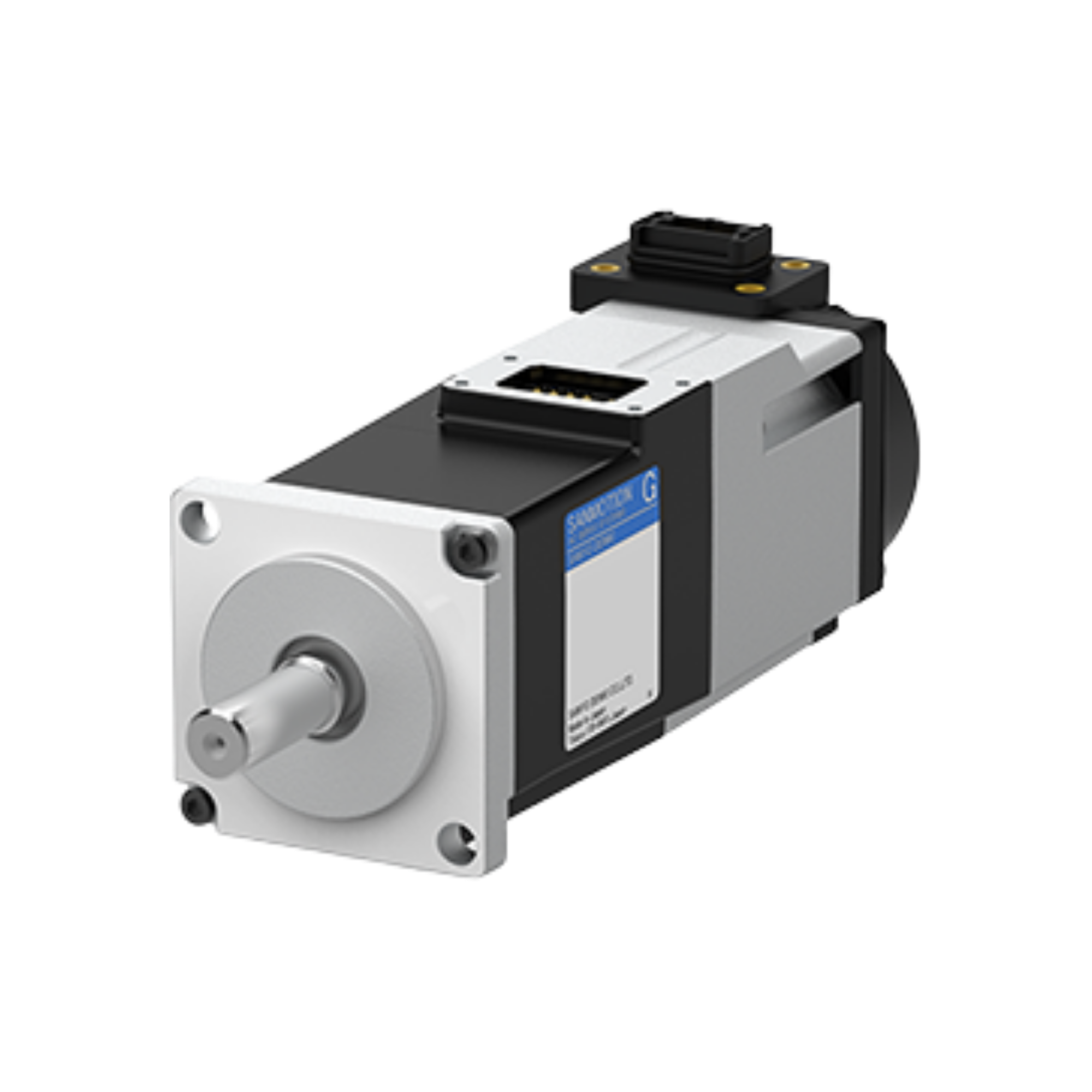

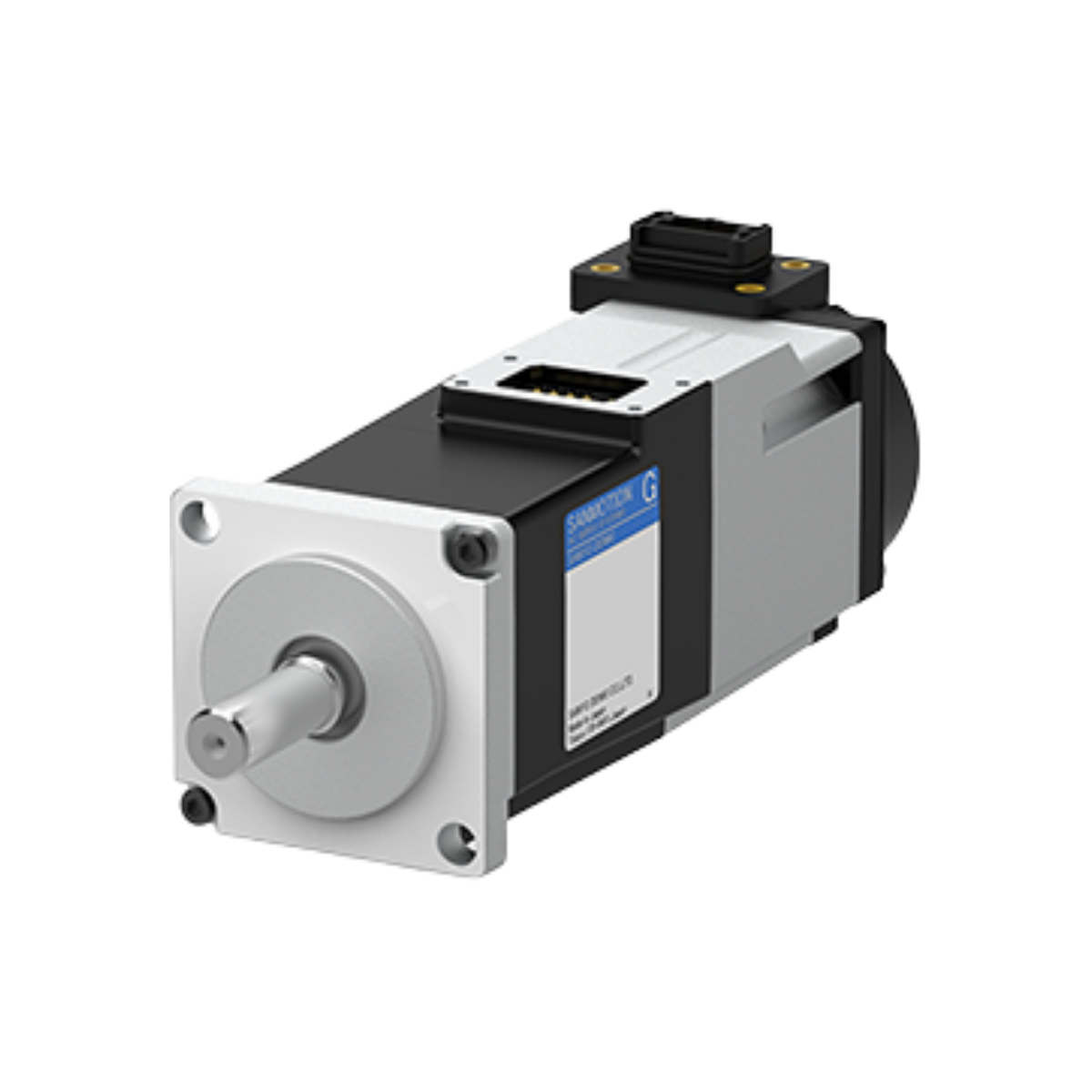

The GAM2A4015F0XRK0 is a SANMOTION G 150 W AC servo motor designed for precise motion control in industrial automation applications. It features a 40 mm square frame, battery-less absolute encoder, and 0.48 N·m rated torque.
| Series | SANMOTION G |
| Type | AC Servo Motor |
| Rated Output | 150 W |
| Rated Voltage | 200 VAC |
| Frame Size | 40 × 40 mm |
| Rated Speed | 3,000 min⁻¹ |
| Maximum Speed | 6,500 min⁻¹ |
| Rated Torque | 0.48 N·m |
| Peak Stall Torque | 1.81 N·m |
| Encoder | 23-bit Battery-less Absolute |
| Rotor Inertia | 0.0876 × 10⁻⁴ kg·m² |
| Output Shaft | Straight |
| Connection | Plug |
| Oil Seal | No |
| Protection Rating | IP67 |
| Brake | None |
| Motor Mass | 0.50 kg |
