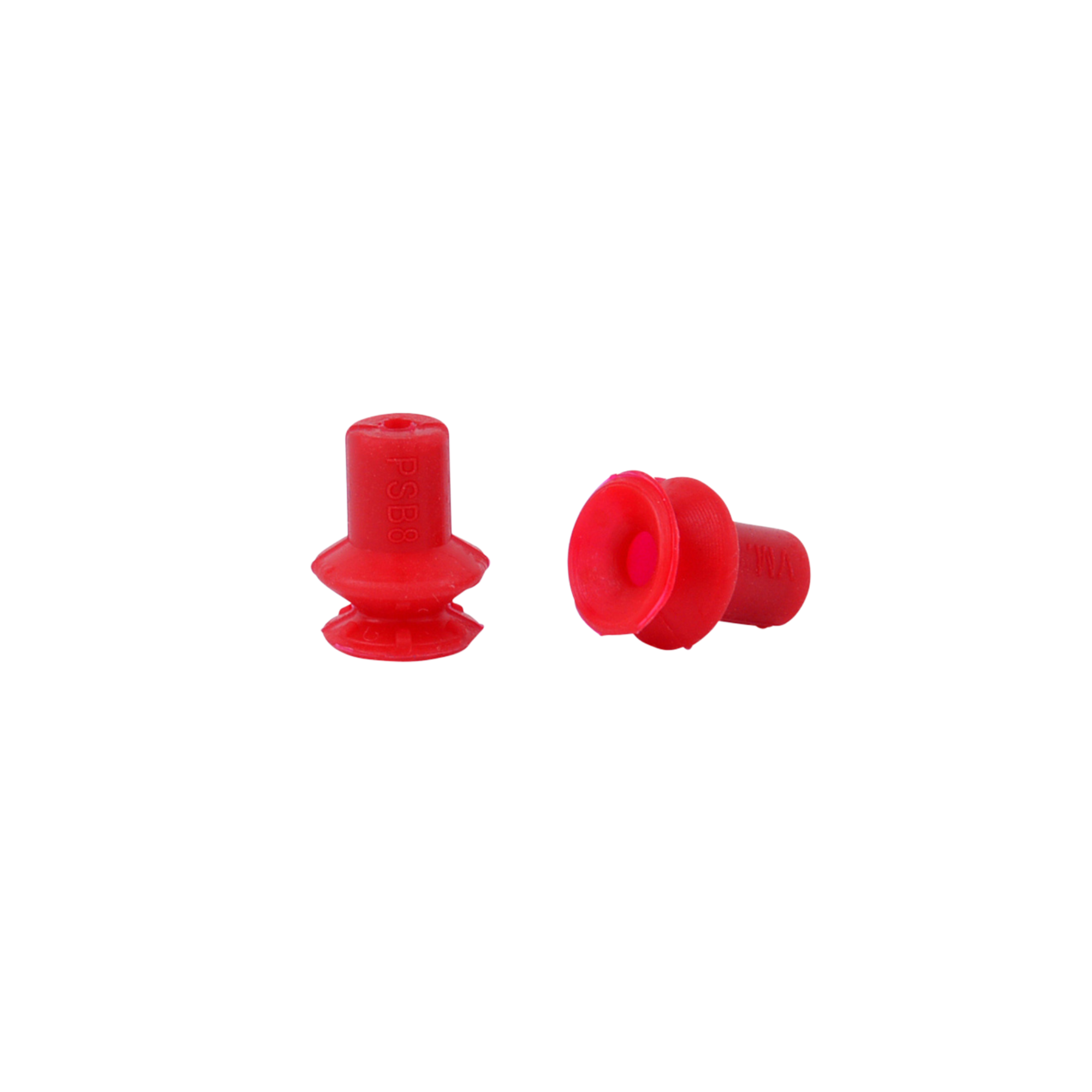

VacMotion | Silicone Suction Cup, 8.8mm Single Bellows, Red | PSB8-SIR

Mfr. Part #: PSB8-SIR

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

ID #: 216098

8.8 mm single-bellows silicone suction cup designed for vacuum handling applications. The flexible bellows design helps accommodate uneven or curved surfaces, while silicone construction provides good wear and oil resistance and excellent weather and ozone resistance.

Recommended replacement/interchangeable parts: B8.20, VSAB8SI, 3150287S, 23.008.166.2, XP-B8S, GSV B8 20, 1414, VB8-S, A-B8.20, A-3150287S, VCR-B8P-S, 210.008.010.02R, VSAB8SIR, VP.3150287S. VacMotion also lists M5 male fitting 400.006 as compatible.
Feature Set
- Single-bellows design
- Flexible silicone construction
- Good wear resistance
- Good oil resistance
- Excellent weather and ozone resistance
- Wide temperature range
- No fitting required
- M5 male fitting available
- Multiple interchangeable replacements available

Specification	Details
Style	Bellows
Material	Silicone
Outside Diameter	8.8 mm
Bellows	1.5
Thread Size	None
Cleats	No
Color	Red
Weight	0.00044 lbs.
Fitting Included	No
Horizontal Lifting Capacity at 6 inHg	0.11 lbs.
Vertical Lifting Capacity at 6 inHg	0.05 lbs.
Horizontal Lifting Capacity at 18 inHg	0.33 lbs.
Vertical Lifting Capacity at 18 inHg	0.16 lbs.
Horizontal Lifting Capacity at 27 inHg	0.50 lbs.
Vertical Lifting Capacity at 27 inHg	0.25 lbs.
Wear Resistance	Good
Oil Resistance	Good
Weather & Ozone Resistance	Excellent
Temperature Range	-94 to 392 °F (-70 to 200 °C)
