Prevost | 1/2 in Aluminum union for pipe | PPS1 UN16

10 in stock | Need More? >>

Ships same day if ordered M-F before 3PM PT.

Pickup Available at Livermore

Items that don't require customization purchased before 12 PM will be available the same business day. Items that require customization or are purchased after 12 PM will be available the next business day.

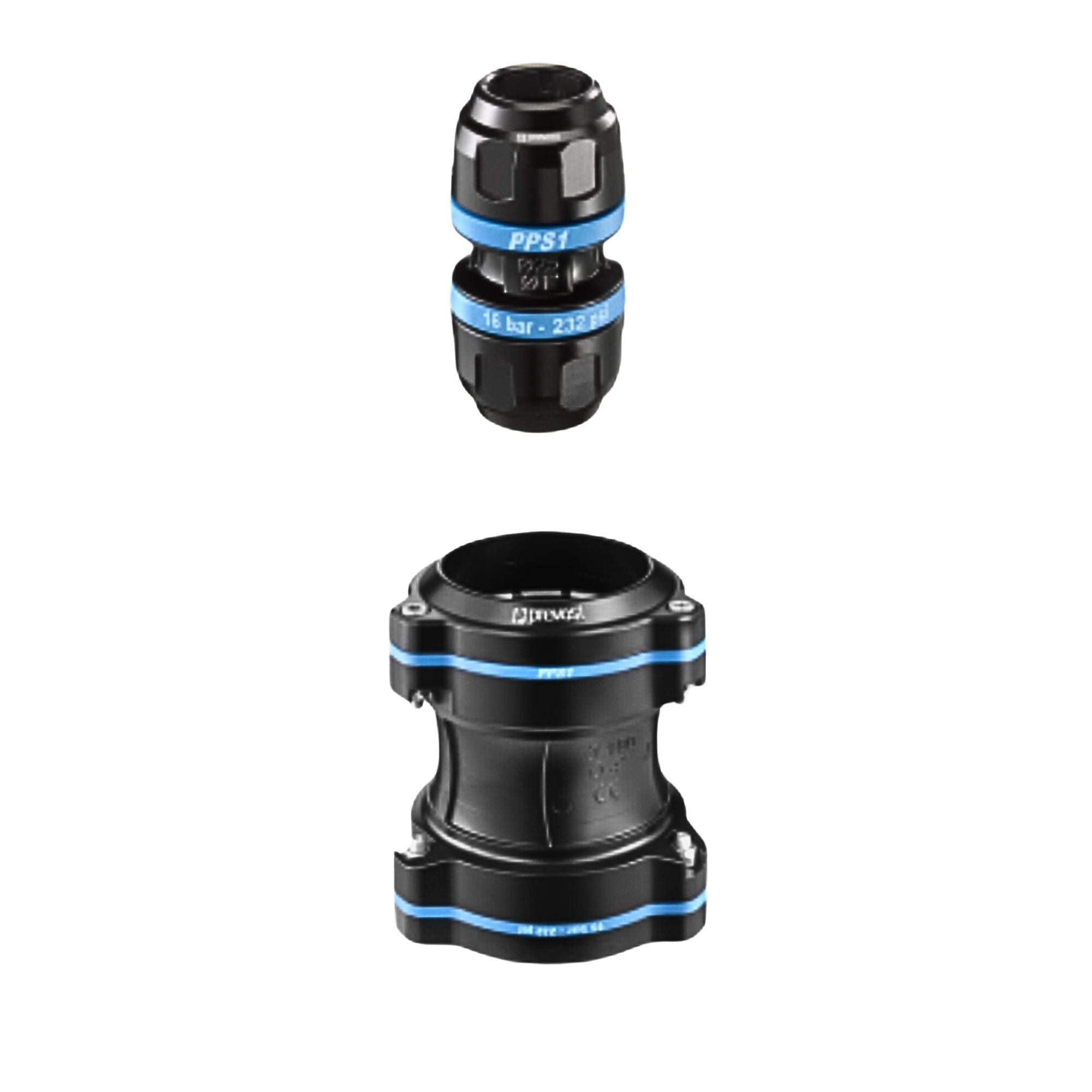

1/2" Aluminum union for pipe

For pipe OD (in) 1/2"
Technology PPS Grip Concept
Operating pressure 0 to 232 psi
Vacuum capability -29 inHg (vacuum 98%)
Temperature -4°F to +176°F
Construction Pipe and fittings: aluminum
 Highlight Scalable system
Meets standards ASME B31.3 REACH

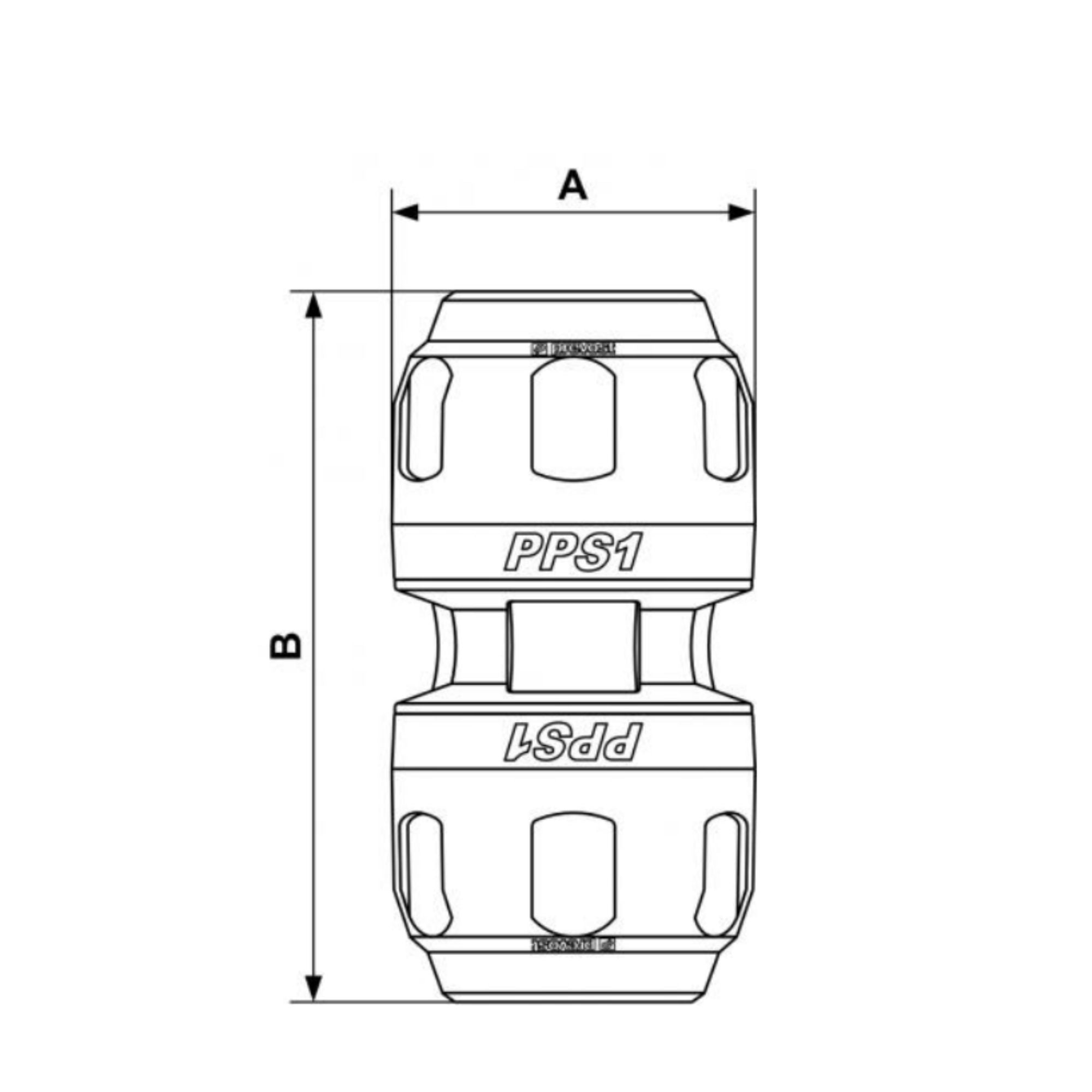

Dimensions
Reference
A inch
B inch
PPS1 UN16
1.26
2.52
PPS1 UN20
1.496
3.071
PPS1 UN25
1.811
3.543
PPS1 UN32
2.244
4.173
PPS1 UN40
2.677
4.921
PPS1 UN50
3.307
5.984
PPS1 UN63
3.937
6.811
PPS1 UN80
4.764
8.071
PPS1 UN100

ID #: 195808
