Mfr. Part #: PPS1 MR2520
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.
ID #: 195798

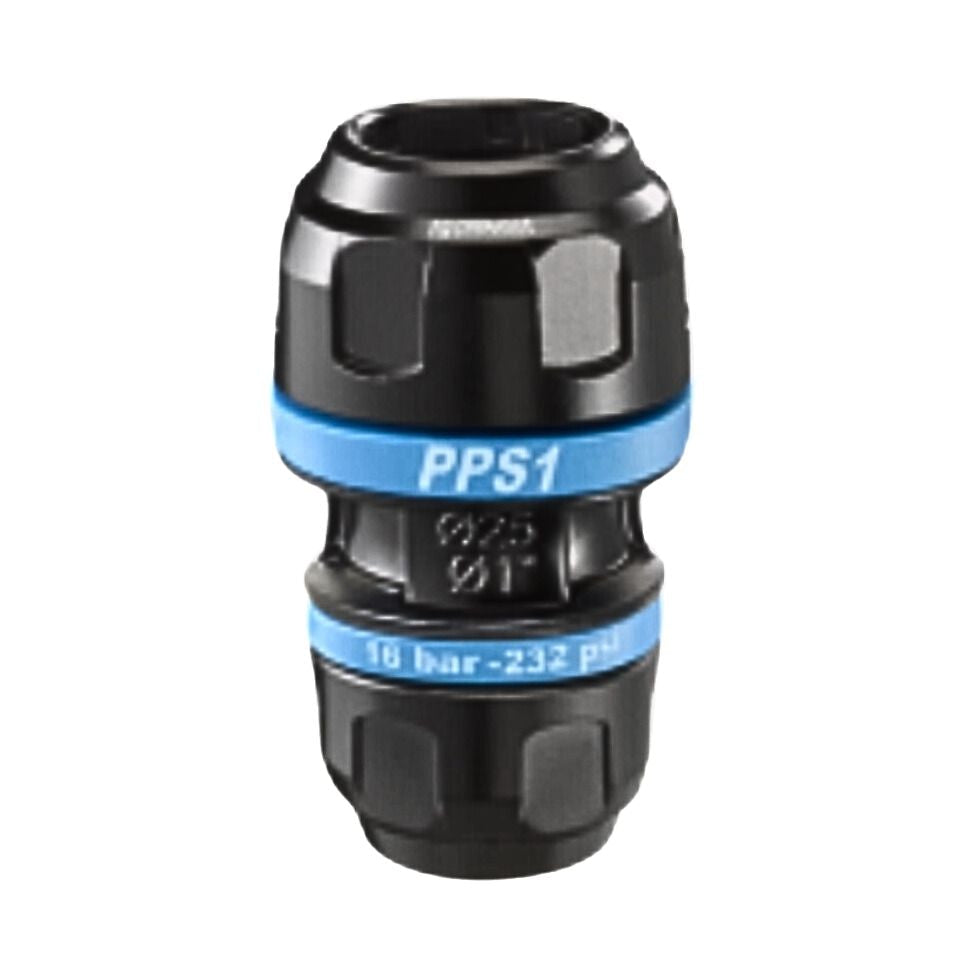

1" to 3/4" pipe to pipe reducer
| For pipe OD (in) | 3/4" |
| Technology | PPS Grip Concept |
| Operating pressure | 0 to 232 psi |
| Vacuum capability | -29 inHg (vacuum 98%) |
| Temperature | -4°F to +176°F |
| Construction | Pipe and fittings: aluminum |
| Highlight | Scalable system |
| Meets standards | ASME B31.3 REACH |

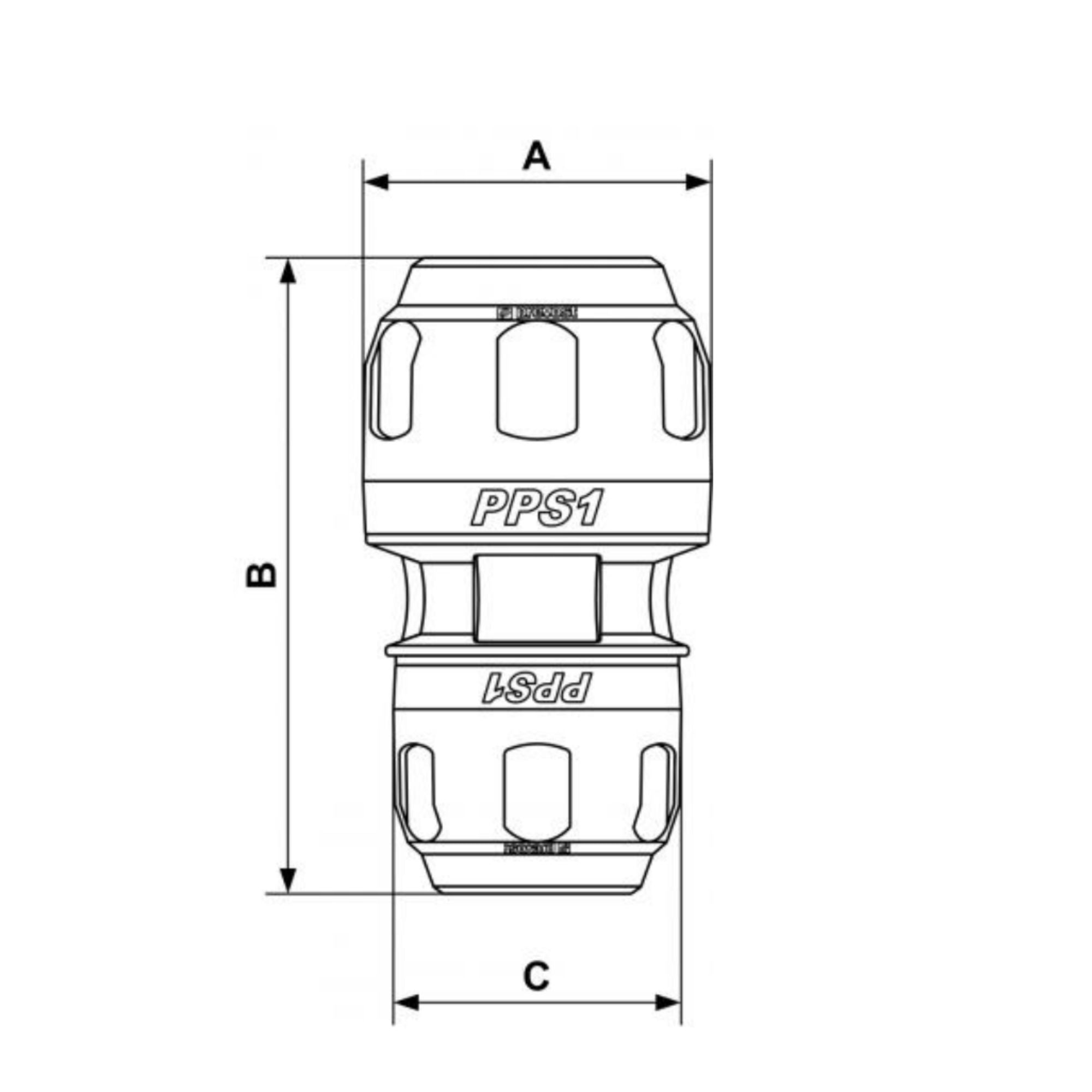

| Dimensions | |||
| Reference | A inch | B inch | C inch |
| PPS1 MR2520 | 1.811 | 3.346 | 1.496 |
| PPS1 MR3225 | 2.244 | 4.016 | 1.811 |
| PPS1 MR4032 | 2.677 | 4.803 | 2.244 |
| PPS1 MR5040 | 3.307 | 5.591 | 2.677 |
| PPS1 MR6350 | 3.937 | 6.693 | 3.307 |
| PPS1 MR8063 | 4.764 | 7.638 | 3.937 |
| PPS1 MR10080 | 8.307 | 11.457 | |
