Prevost | 1 in - 1 in MNPT Aluminum tapered male thread straight fitting for pipe | PPS1 MM25255

10 in stock | Need More? >>

Ships same day if ordered M-F before 3PM PT.

Pickup Available at Livermore

Items that don't require customization purchased before 12 PM will be available the same business day. Items that require customization or are purchased after 12 PM will be available the next business day.

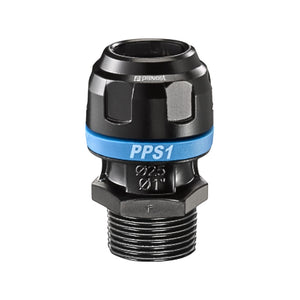

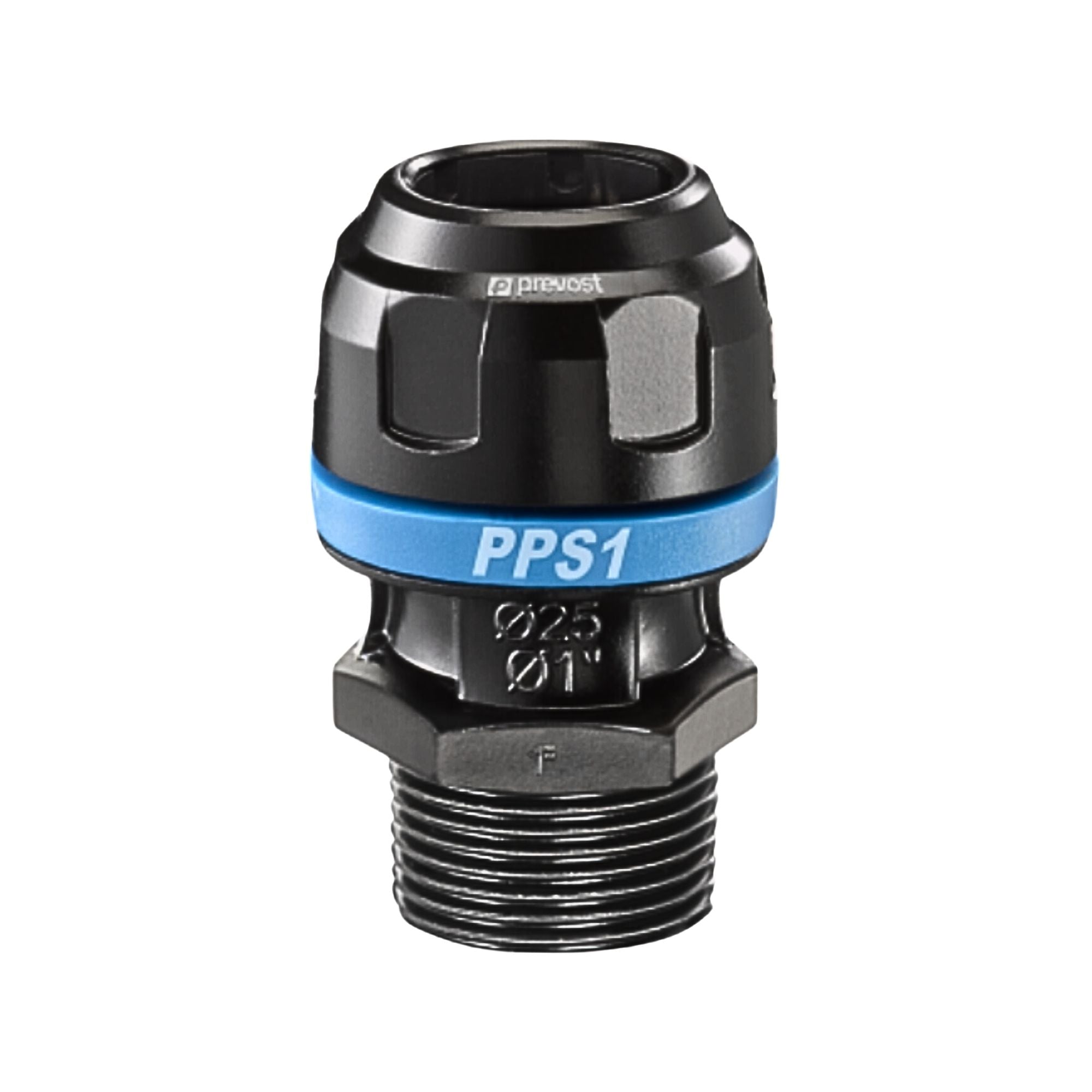

1" - 1" MNPT Aluminum tapered male thread straight fitting for pipe

For pipe OD (in) 1"
NPT male thread 1"
Technology PPS Grip Concept
Operating pressure 0 to 232 psi
Vacuum capability -29 inHg (vacuum 98%)
Temperature -4°F to +176°F
Construction Pipe and fittings: aluminum
 Highlight Scalable system
Meets standards ASME B31.3 REACH

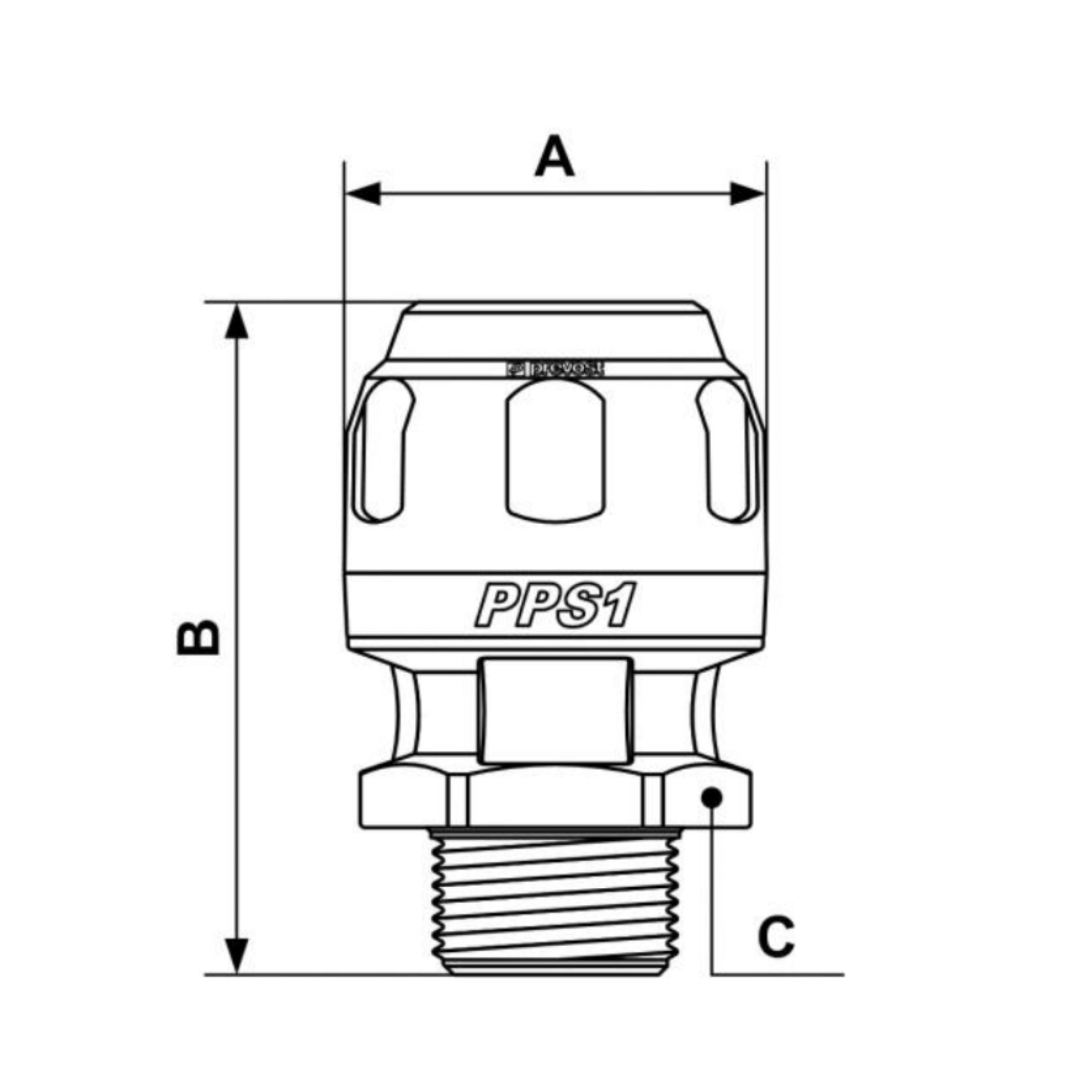

Dimensions
Reference A inch B inch
PPS1 MM16252 1.26 2.047
PPS1 MM16253 1.26 2.283
PPS1 MM20253 1.496 2.559
PPS1 MM20254 1.496 2.639
PPS1 MM25253 1.811 2.874
PPS1 MM25254 1.811 2.913
PPS1 MM25255 1.811 3.071
PPS1 MM32255 2.244 3.465
PPS1 MM32256 2.244 3.504
PPS1 MM40256 2.677 4.173
PPS1 MM40257 2.677 4.173
PPS1 MM50257 3.307 4.724
PPS1 MM50258 3.307 4.882
PPS1 MM63258 3.937 5.748
PPS1 MM63259 3.937 5.984
PPS1 MM80259 4.764 6.811
PPS1 MM802510 4.764 6.89

ID #: 195600
