PPS1 MF20204

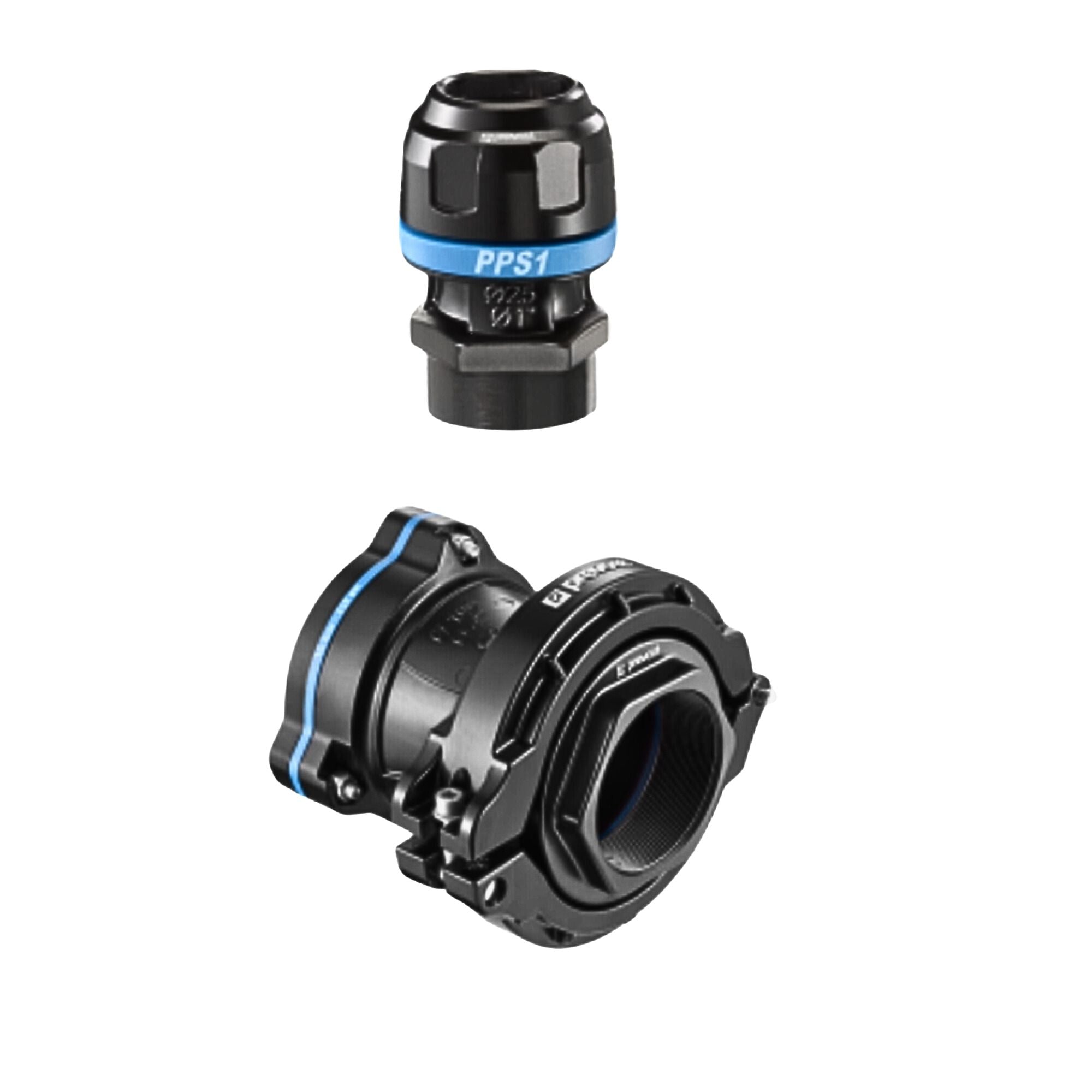

3/4"- 3/4" FNPT Aluminum female thread straight fitting for pipe
| For pipe OD (in) | 3/4" |
| NPT female thread | 3/4" |
| Technology | PPS Grip Concept |
| Operating pressure | 0 to 232 psi |
| Vacuum capability | -29 inHg (vacuum 98%) |
| Temperature | -4°F to +176°F |
| Construction | Pipe and fittings: aluminum |
| Highlight | Scalable system |
| Meets standards | ASME B31.3 REACH |

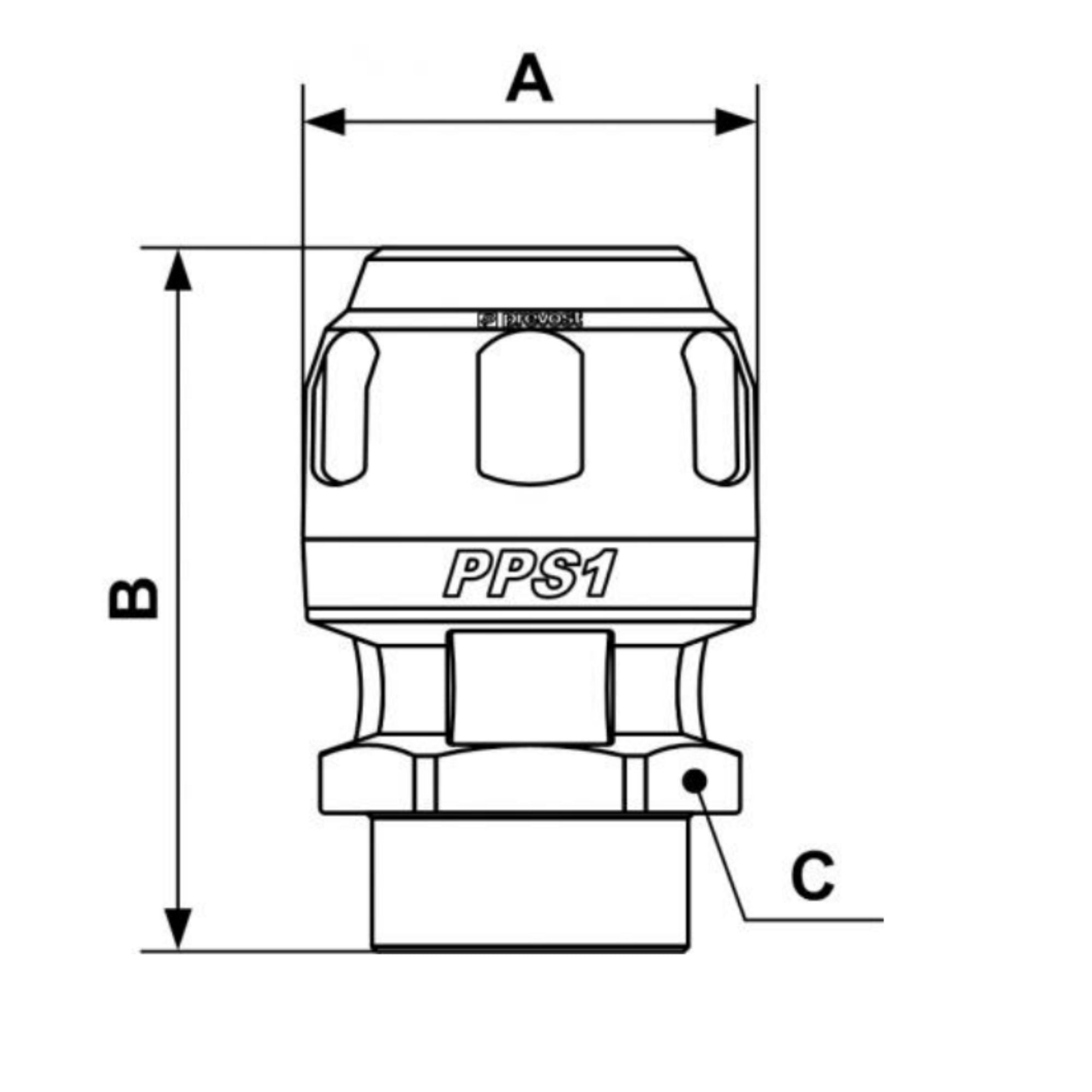

| Dimensions | ||
| Reference | A inch | B inch |
| PPS1 MF16202 | 1.26 | 2.087 |
| PPS1 MF16203 | 1.26 | 2.087 |
| PPS1 MF20203 | 1.496 | 2.48 |
| PPS1 MF20204 | 1.496 | 2.48 |
| PPS1 MF25203 | 1.811 | 2.835 |
| PPS1 MF25204 | 1.811 | 2.835 |
| PPS1 MF25205 | 1.811 | 2.835 |
| PPS1 MF32205 | 2.244 | 3.268 |
| PPS1 MF32206 | 2.244 | 3.268 |
| PPS1 MF40206 | 2.677 | 3.858 |
| PPS1 MF40207 | 2.677 | 4.055 |
| PPS1 MF50207 | 3.307 | 4.331 |
| PPS1 MF50208 | 3.307 | 4.528 |
| PPS1 MF63208 | 3.937 | 5.394 |
| PPS1 MF63209 | 3.937 | 5.591 |
| PPS1 MF80209 | 4.764 | 6.457 |
| PPS1 MF802010 | 4.764 | 6.457 |
