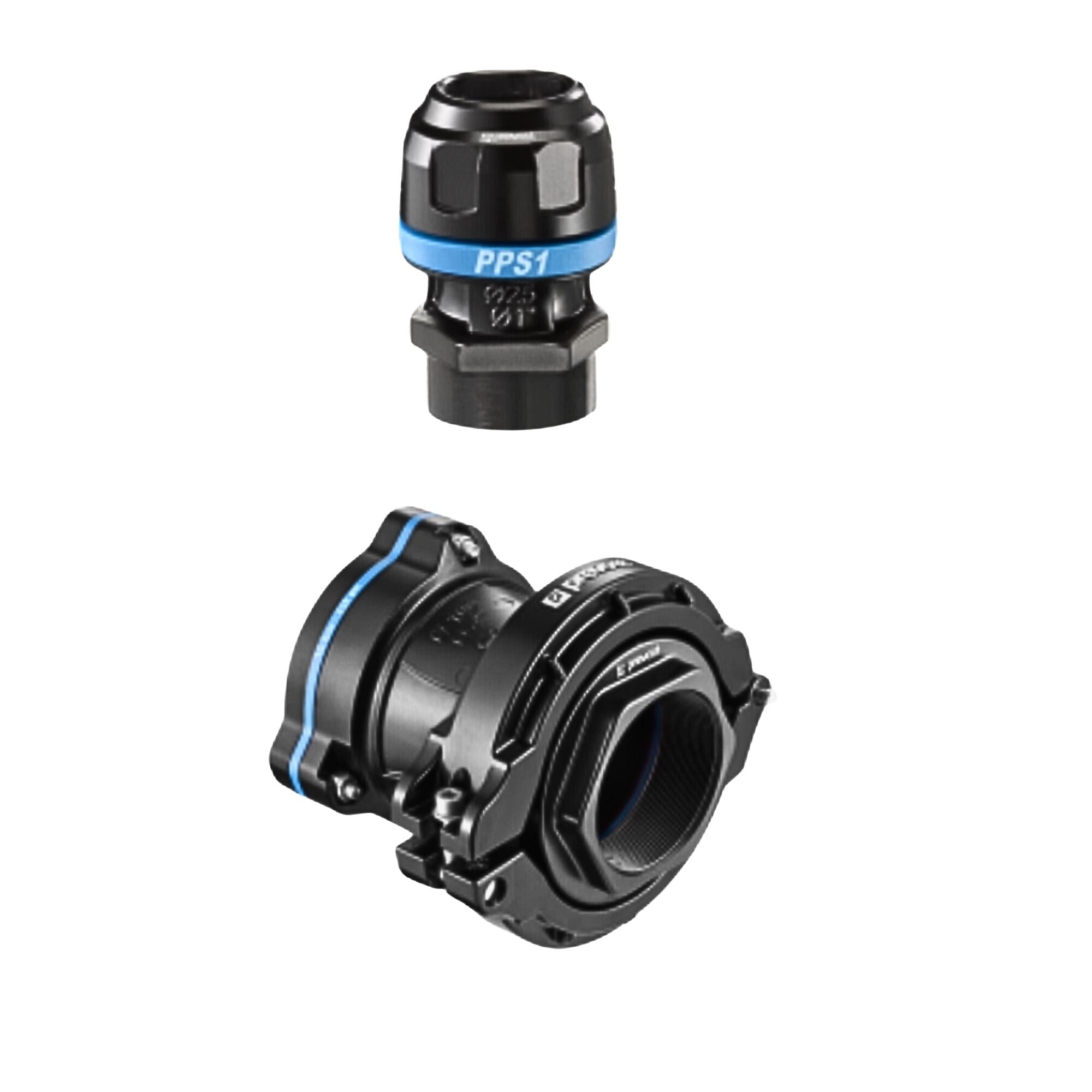

Prevost | 3/4 in- 1/2 in FNPT Aluminum female thread straight fitting for pipe | PPS1 MF20203

10 in stock | Need More? >>

Ships same day if ordered M-F before 3PM PT.

Pickup Available at Livermore

Items that don't require customization purchased before 12 PM will be available the same business day. Items that require customization or are purchased after 12 PM will be available the next business day.

3/4"- 1/2" FNPT Aluminum female thread straight fitting for pipe

For pipe OD (in) 3/4"
NPT female thread 1/2"
Technology PPS Grip Concept
Operating pressure 0 to 232 psi
Vacuum capability -29 inHg (vacuum 98%)
Temperature -4°F to +176°F
Construction Pipe and fittings: aluminum
 Highlight Scalable system
Meets standards ASME B31.3 REACH

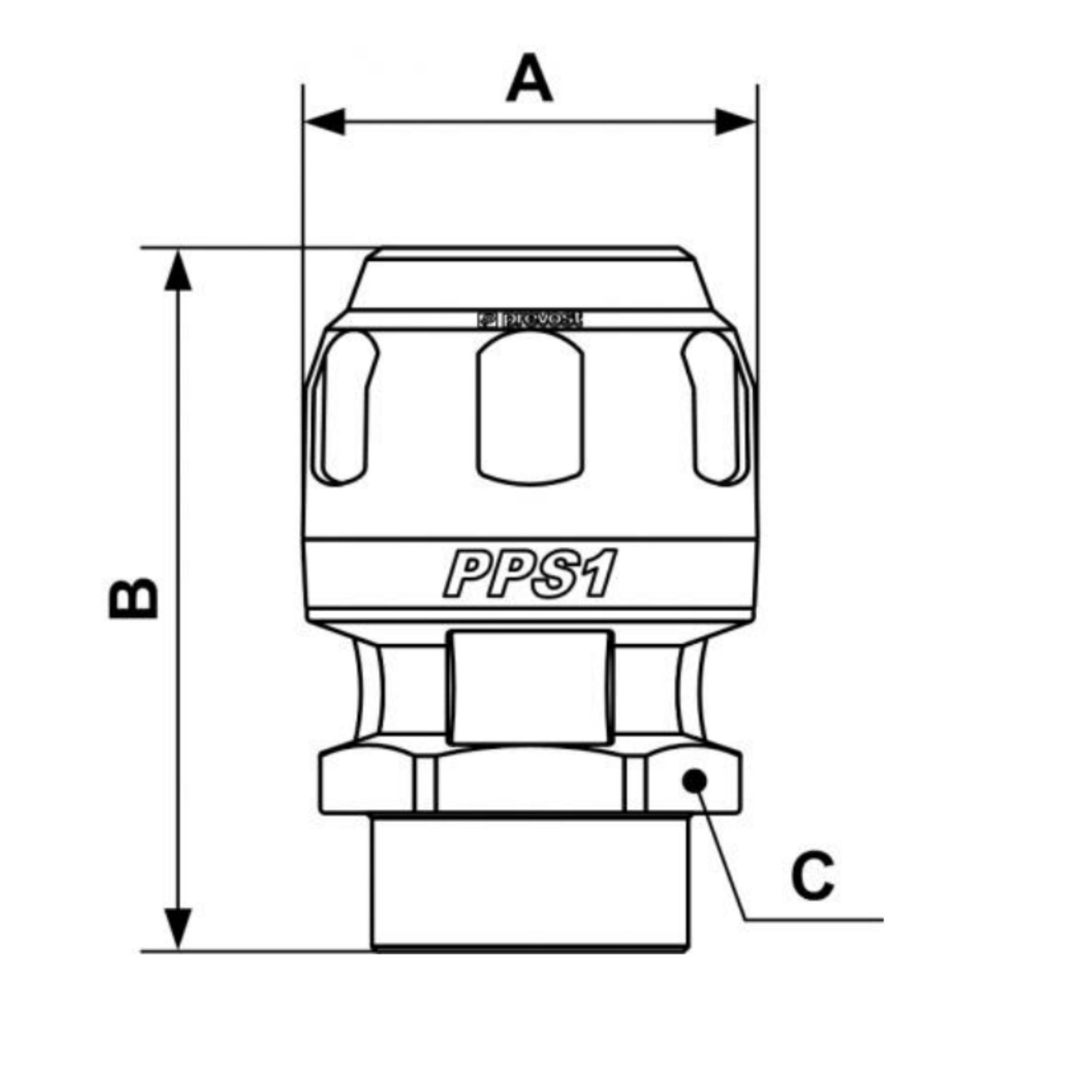

Reference A inch B inch
PPS1 MF16202 1.26 2.087
PPS1 MF16203 1.26 2.087
PPS1 MF20203 1.496 2.48
PPS1 MF20204 1.496 2.48
PPS1 MF25203 1.811 2.835
PPS1 MF25204 1.811 2.835
PPS1 MF25205 1.811 2.835
PPS1 MF32205 2.244 3.268
PPS1 MF32206 2.244 3.268
PPS1 MF40206 2.677 3.858
PPS1 MF40207 2.677 4.055
PPS1 MF50207 3.307 4.331
PPS1 MF50208 3.307 4.528
PPS1 MF63208 3.937 5.394
PPS1 MF63209 3.937 5.591
PPS1 MF80209 4.764 6.457
PPS1 MF802010 4.764 6.457

ID #: 195787
