Mfr. Part #: PPS1 9CM25254
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.
ID #: 195602

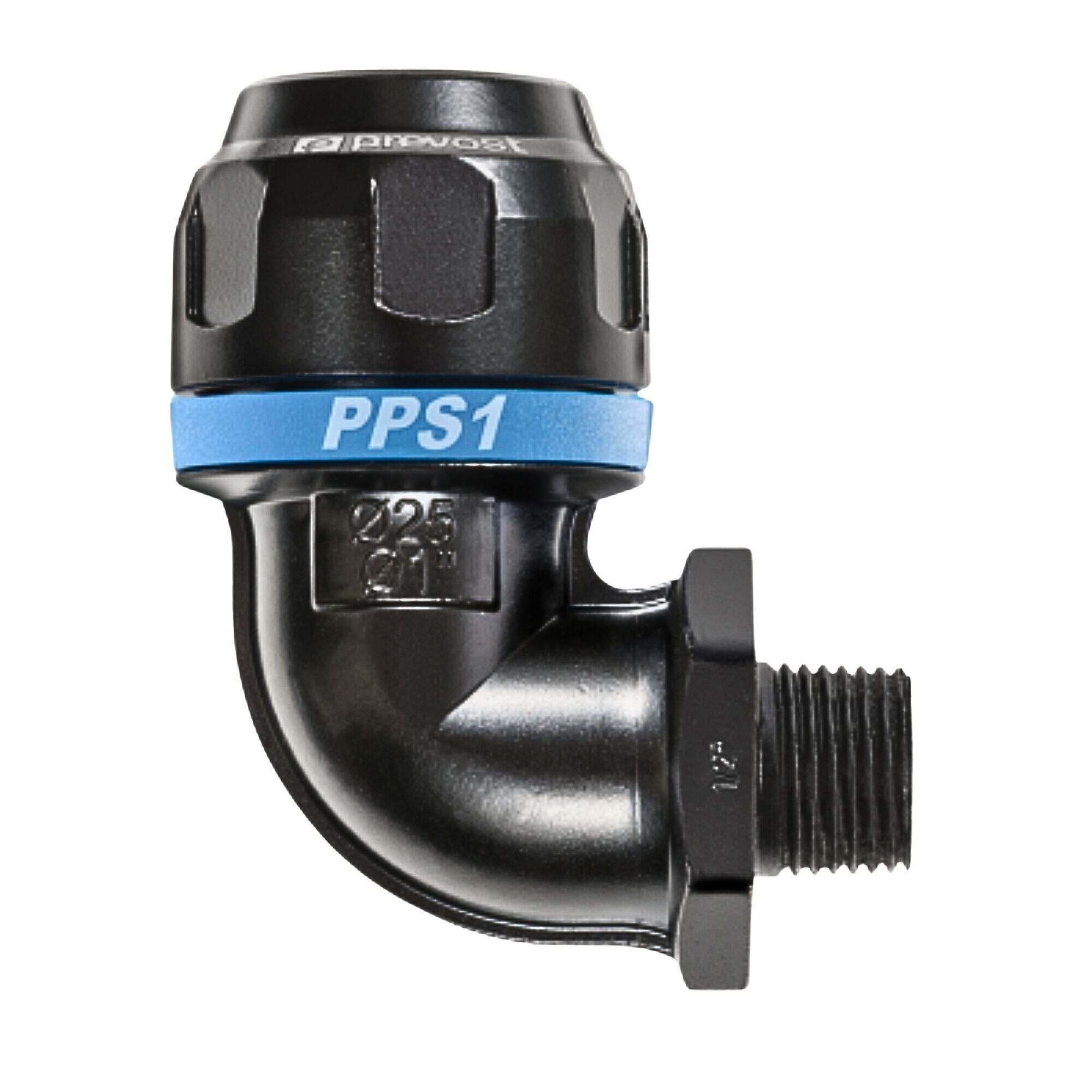

90° - 1" Aluminum male thread elbow fitting for pipe
| For pipe OD (in) | 1" |
| NPT male thread | 3/4" |
| Technology | PPS Grip Concept |
| Operating pressure | 0 to 232 psi |
| Vacuum capability | -29 inHg (vacuum 98%) |
| Temperature | -4°F to +176°F |
| Construction | Pipe and fittings: aluminum |
| Highlight | Scalable system |
| Meets standards | ASME B31.3 REACH |

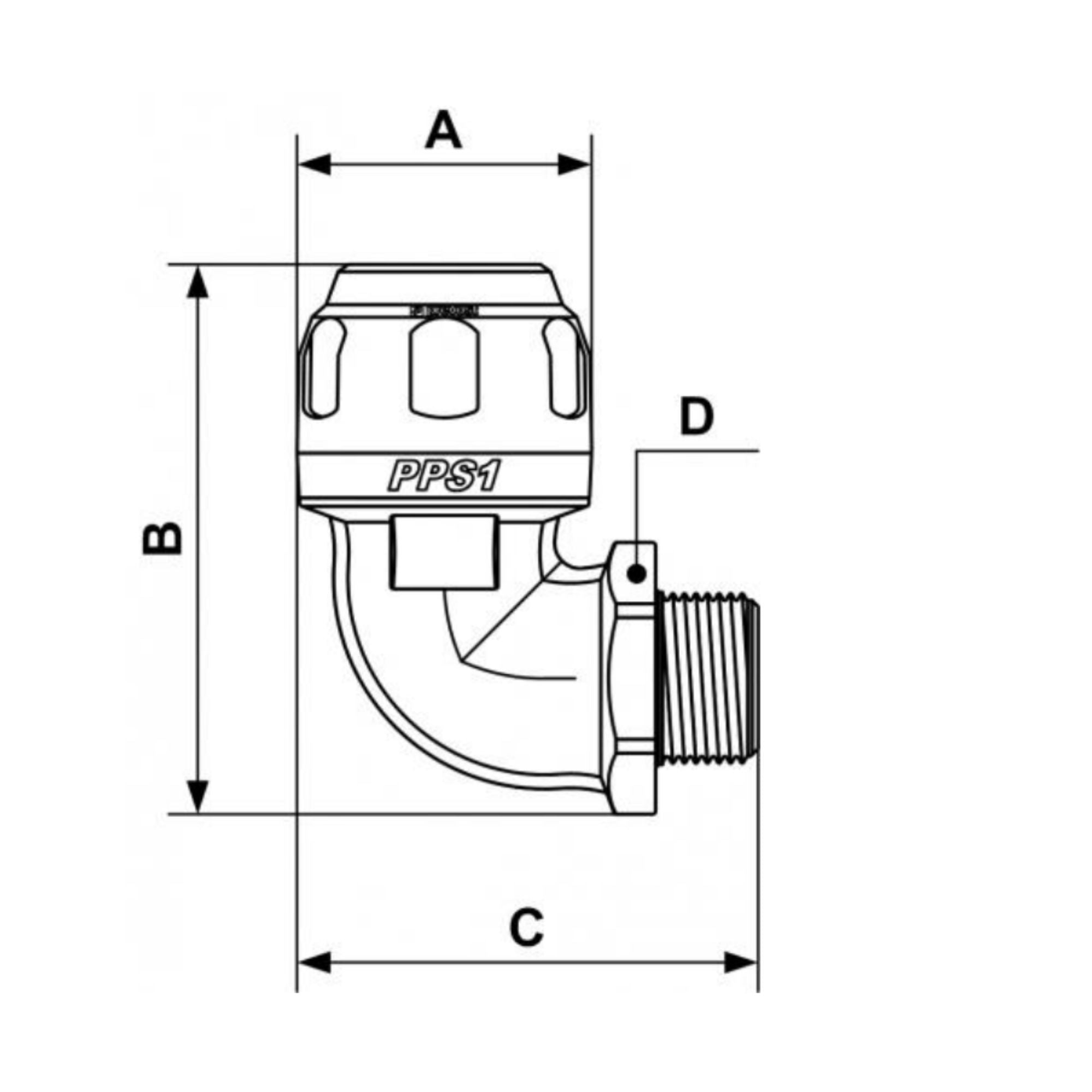

| Dimensions | |||
| Reference | A inch | B inch | C inch |
| PPS1 9CM16252 | 1.26 | 2.362 | 1.024 |
| PPS1 9CM16253 | 1.26 | 2.362 | 1.024 |
| PPS1 9CM20253 | 1.496 | 2.835 | 1.26 |
| PPS1 9CM25253 | 1.811 | 3.425 | 1.496 |
| PPS1 9CM25254 | 1.811 | 3.425 | 1.496 |
| PPS1 9CM32255 | 2.244 | 4.055 | 1.811 |
| PPS1 9CM40256 | 2.677 | 4.843 | 2.244 |
| PPS1 9CM40257 | 2.677 | 4.843 | 2.244 |
