Mfr. Part #: PPS1 9C16
ID #: 195777

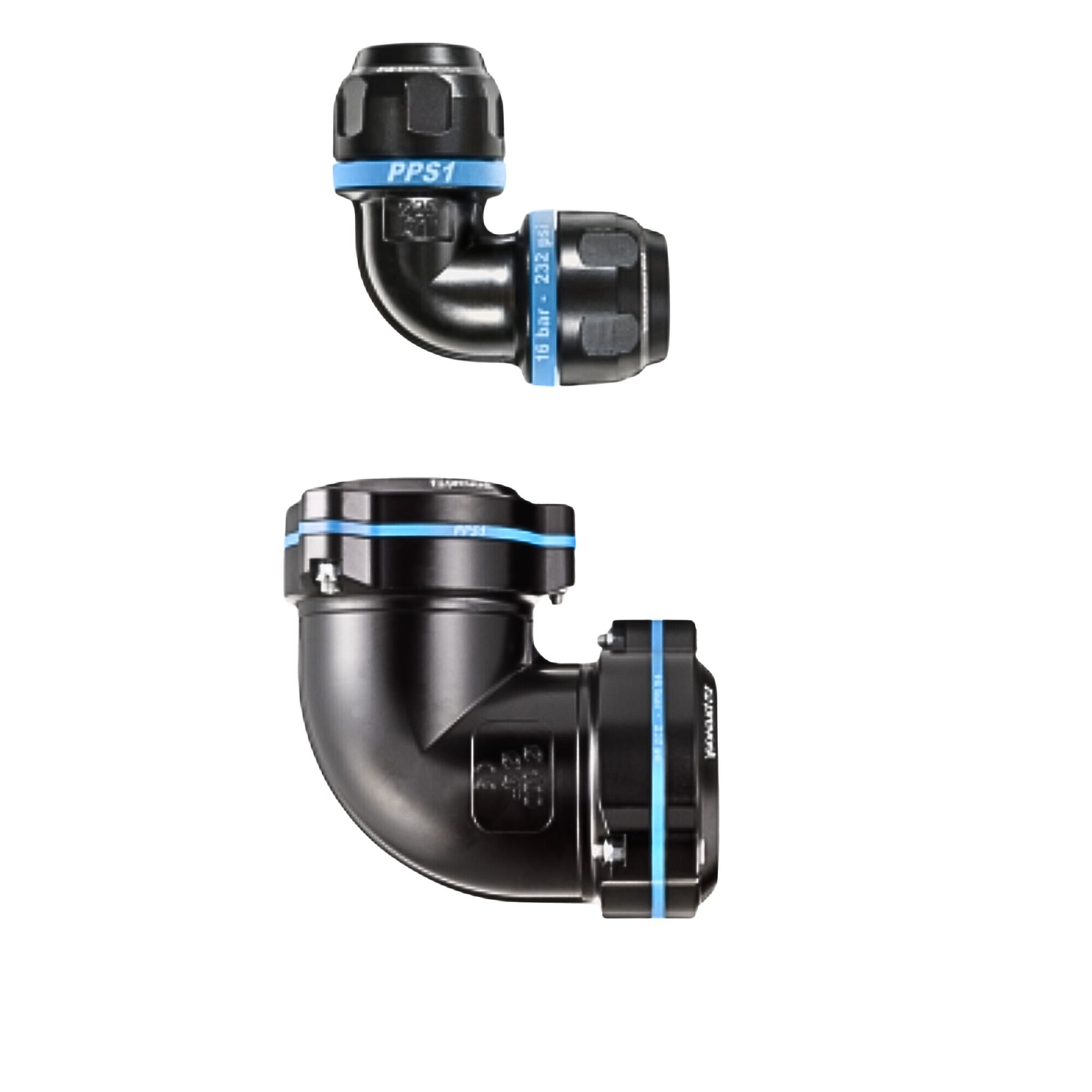

90° - 1/2" Aluminum union elbow fitting for pipe
| For pipe OD (in) | 1/2" |
| Technology | PPS Grip Concept |
| Operating pressure | 0 to 232 psi |
| Vacuum capability | -29 inHg (vacuum 98%) |
| Temperature | -4°F to +176°F |
| Construction | Pipe and fittings: aluminum |
| Highlight | Scalable system |
| Meets standards | ASME B31.3 REACH |

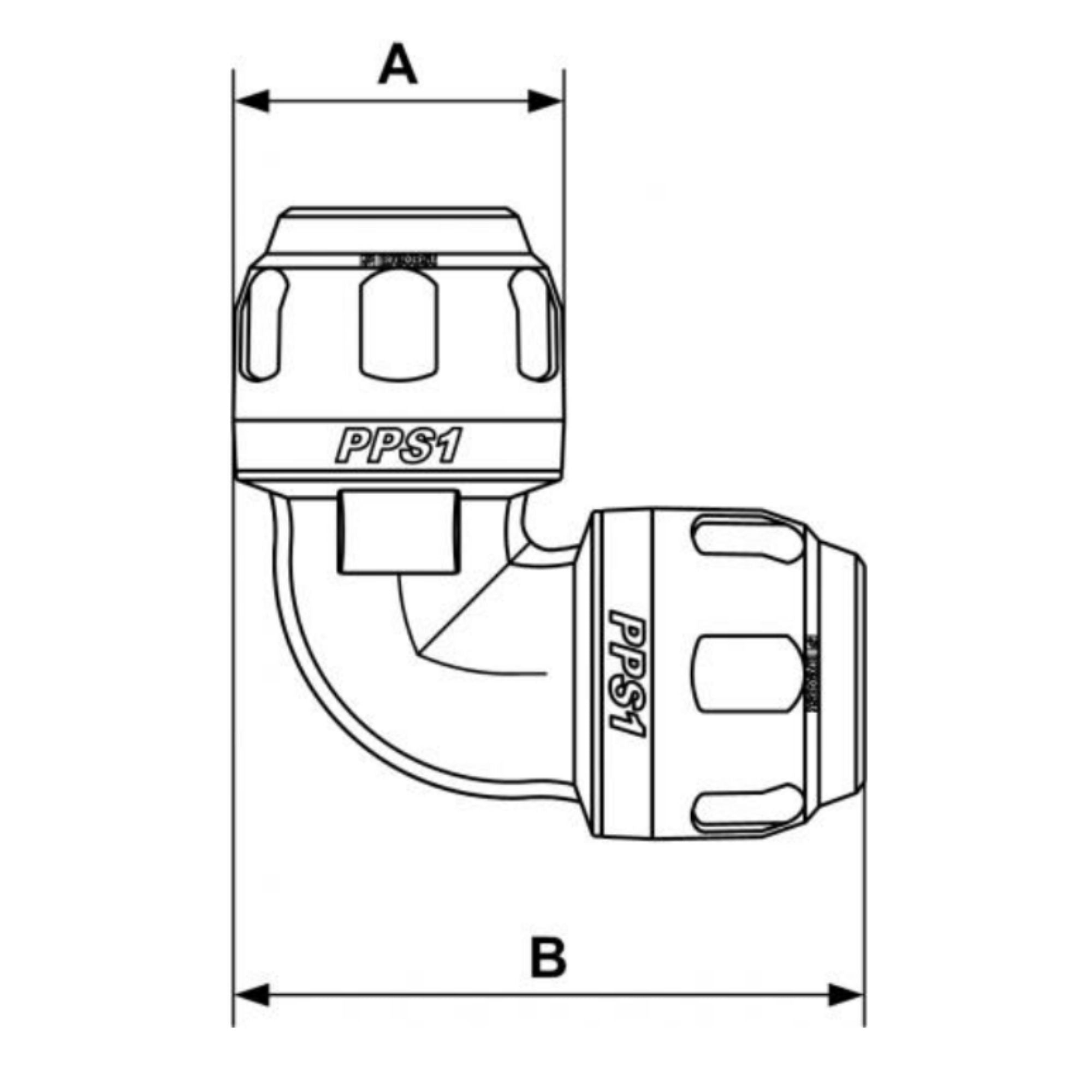

| Dimensions | ||
| Reference | A inch | B inch |
| PPS1 9C16 | 1.26 | 2.441 |
| PPS1 9C20 | 1.496 | 2.874 |
| PPS1 9C25 | 1.811 | 3.504 |
| PPS1 9C32 | 2.244 | 4.173 |
| PPS1 9C40 | 2.677 | 5.315 |
| PPS1 9C50 | 3.307 | 5.945 |
| PPS1 9C63 | 3.937 | 7.087 |
| PPS1 9C80 | 4.764 | 8.583 |
| PPS1 9C100 | 8.819 | |
