Mfr. Part #: PPS1 4C25
ID #: 195816

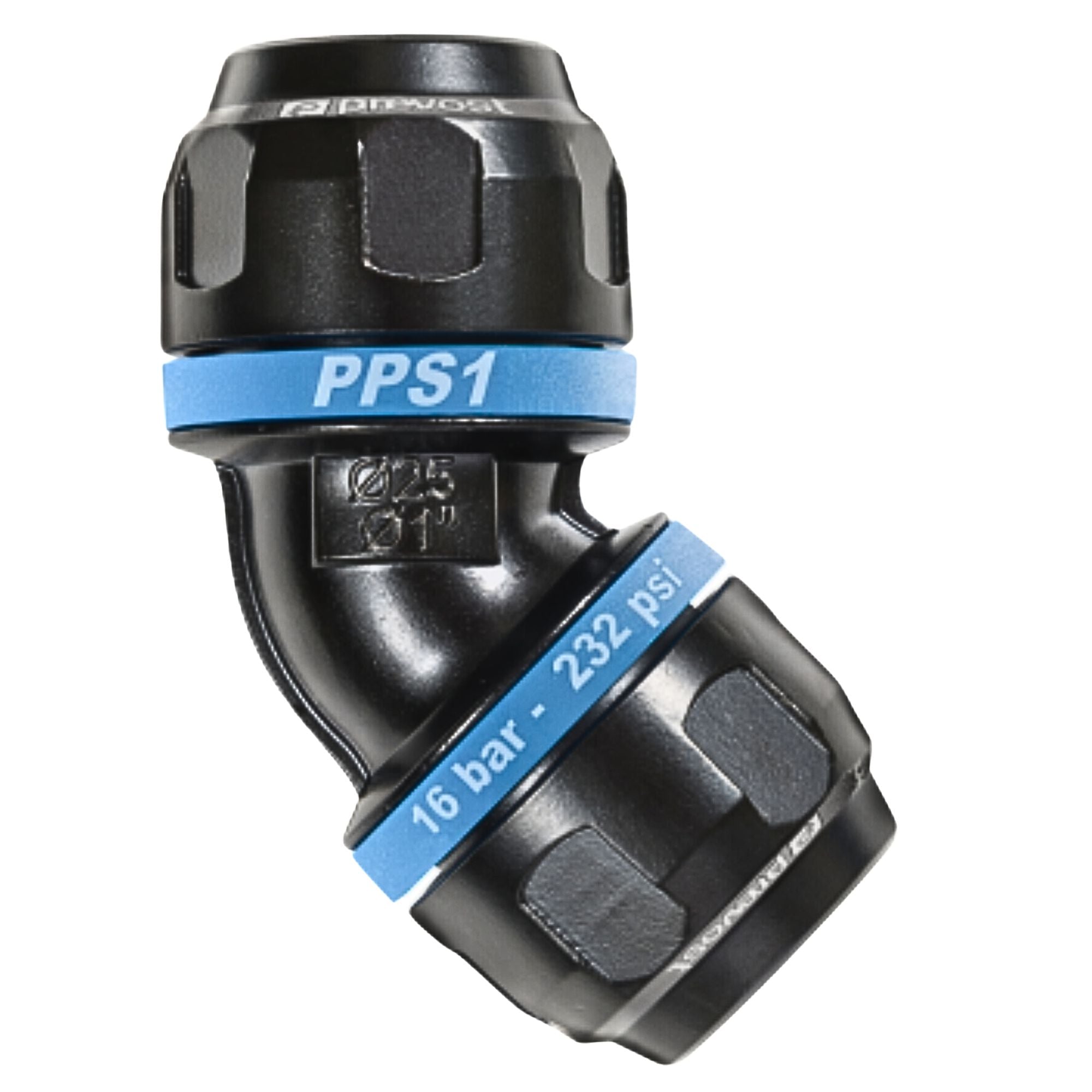

45° - 1" Aluminum equal female elbow fitting
| For pipe OD (in) | 1" |
| Technology | PPS Grip Concept |
| Operating pressure | 0 to 232 psi |
| Vacuum capability | -29 inHg (vacuum 98%) |
| Temperature | -4°F to +176°F |
| Construction | Pipe and fittings: aluminum |
| Highlight | Scalable system |
| Meets standards | ASME B31.3 REACH |

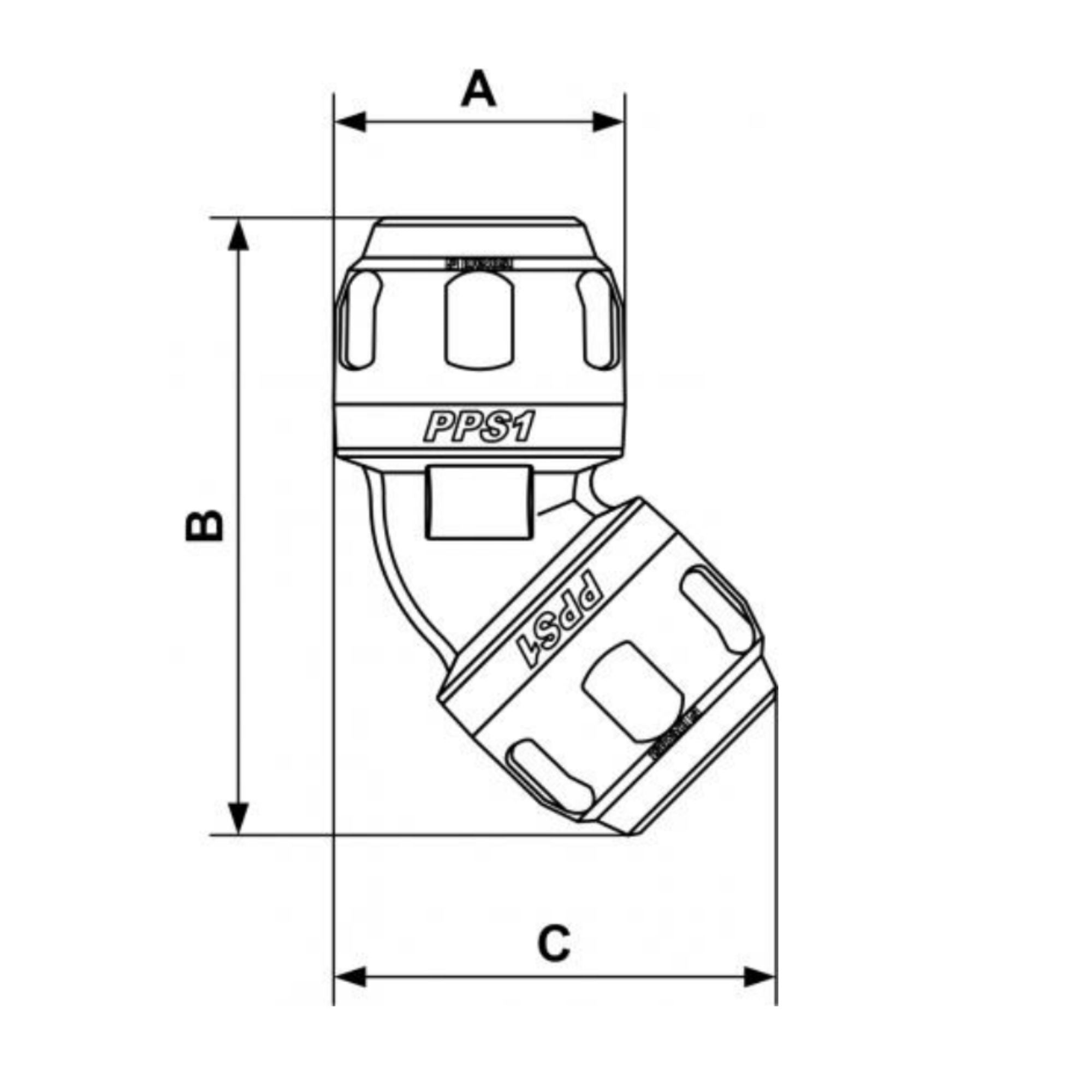

| Dimensions | |||
| Reference | A inch | B inch | C inch |
| PPS1 4C16 | 1.26 | 2.756 | 1.969 |
| PPS1 4C20 | 1.496 | 3.268 | 2.323 |
| PPS1 4C25 | 1.811 | 3.858 | 2.756 |
| PPS1 4C32 | 2.244 | 4.606 | 3.346 |
| PPS1 4C40 | 2.677 | 5.512 | 4.016 |
