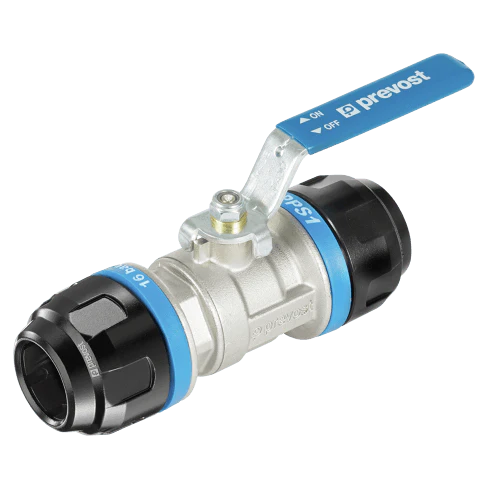

Prevost | Piping Valve | PPS1 RSI32

Name: Prevost | Piping Valve | PPS1 RSI32
Brand: Prevost Corporation
SKU: PPS1 RSI32
Price: 76.27 USD
Availability: InStock

Mfr. Part #: PPS1 RSI32

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

ID #: 214830

PPS1 RSI32 aluminium shut-off valve for 32mm piping. Durable, corrosion-resistant, and ideal for compressed air and vacuum systems.
Key Features:
- Designed for 1 1/4" (32 mm) outer diameter aluminium piping
- 16 bar maximum operating pressure (≈ 232 psi); vacuum compatible to –0.98 bar (~98% vacuum)
- Wide operating temperature range: –4 °F to +176 °F (–20 °C to +80 °C)
- Utilizes “PPS Grip Concept”: stainless steel teeth bite into pipe, paired with contoured, lubricated seal for leak-free performance
- Meets ASME B31.3 and REACH compliance standards
- Compact, durable 100% aluminium construction for corrosion resistance
- Weight approx. 0.973 kg; dimensions approx. 57 × 189 × 85 mm

Typical Applications:
- On/off control in aluminium compressed air piping systems
- Industrial and automotive facility air distribution networks
- Vacuum-compatible pneumatic systems
- Environments requiring scalable, corrosion-resistant valve systems with fast, secure piping connections

PPS1 RSI32 Specifications
Model	PPS1 RSI32
Product Type	Aluminium Shut-off/Piping Valve (PPS1 RSI Series)
Pipe Compatibility	1 1/4" (32 mm) outer diameter aluminium piping
Maximum Pressure	16 bar (232 psi)
Vacuum Rating	Up to –0.98 bar (~98% vacuum)
Temperature Range	–4 °F to +176 °F (–20 °C to +80 °C)
Connection Technology	PPS Grip Concept (stainless steel teeth + contoured seal)
Material	100% Aluminium (corrosion resistant)
Compliance	ASME B31.3, REACH
Dimensions	57 × 189 × 85 mm
Weight	0.973 kg
Typical Applications	Compressed air piping, industrial networks, vacuum systems, automotive plants
