Mfr. Part #: ISI 061203WK
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.
ID #: 195772

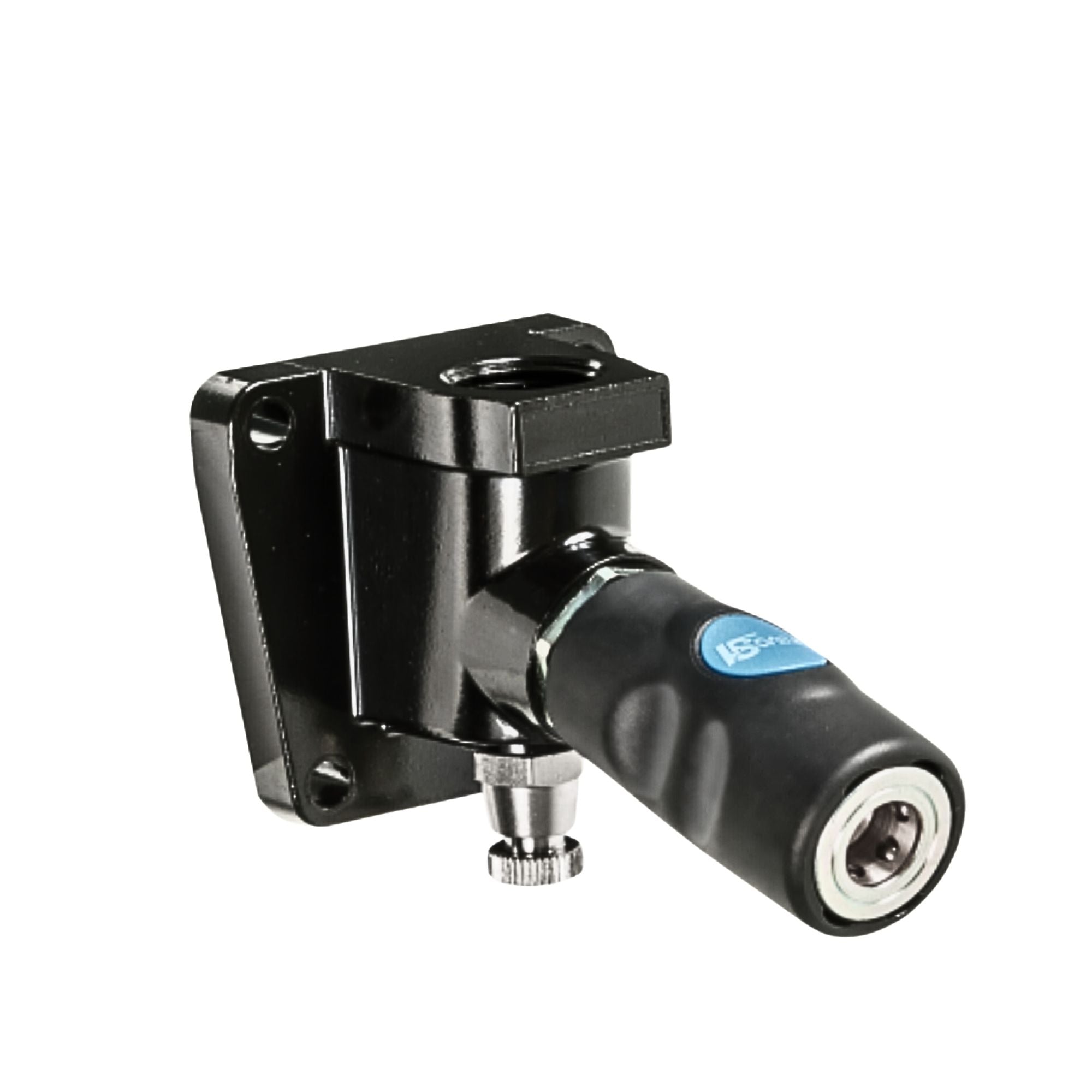

Female thread single wall manifold
1 Coupler and drain
1/4" Industrial Interchange
| Inlet NPT female thread | 1/2" FNPT |
| Outlet 1 coupling | ISI 06 |
| Technology | "One push" safety system (avoids hose whip) |
| Operating pressure | 29 to 174 psi |
| Flow rate at 100 psi | 34 cfm (ΔP : 10 psi) |
| ID Passage | 1/4" body size |
| Temperature | +5°F to +158°F |
| Construction | Composite body |
| Highlight | Anti-static Non scratch |

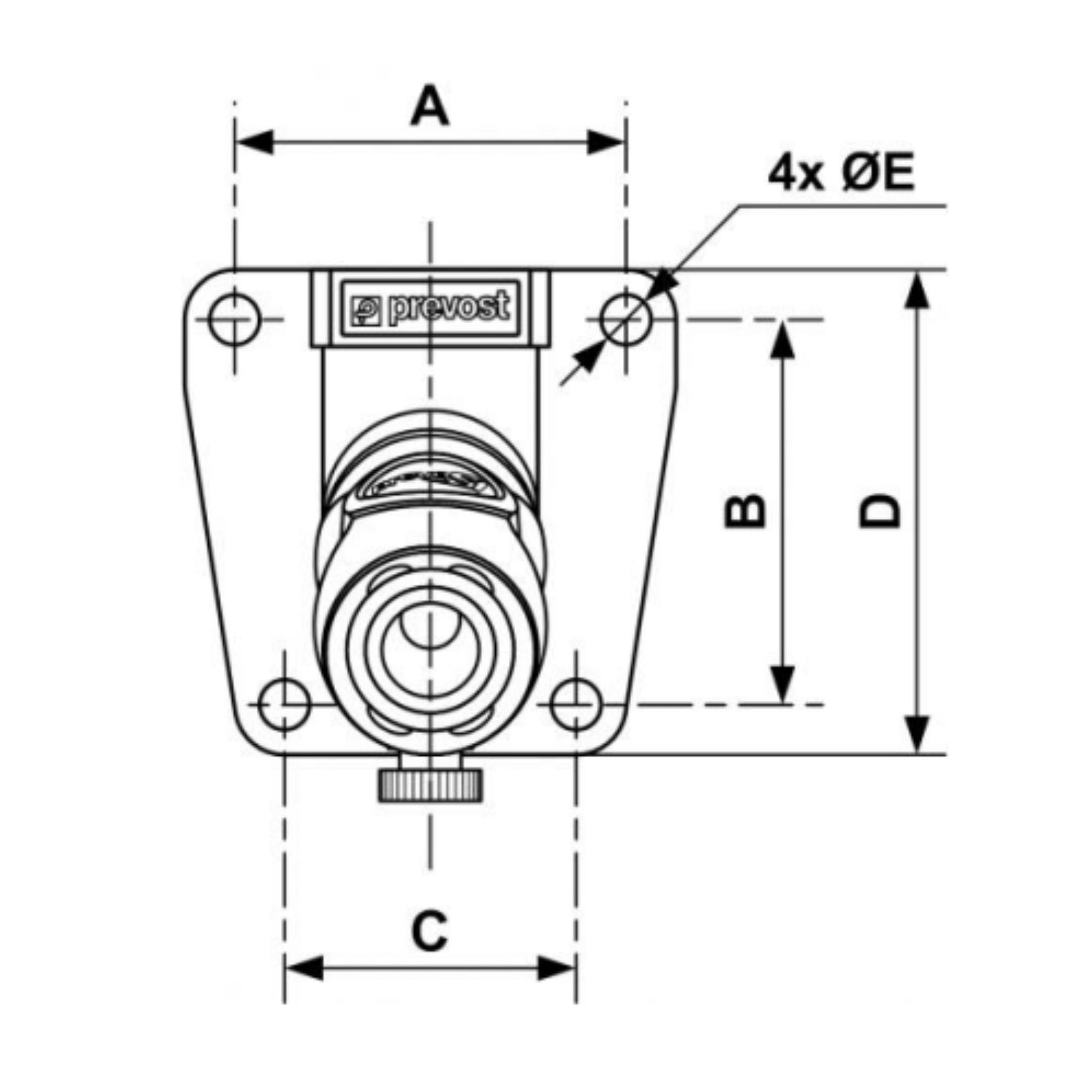

| Dimensions | |||
| Reference | A inch | B inch | C inch |
| ISI 061203WK | 2.008 | 1.969 | 1.496 |
