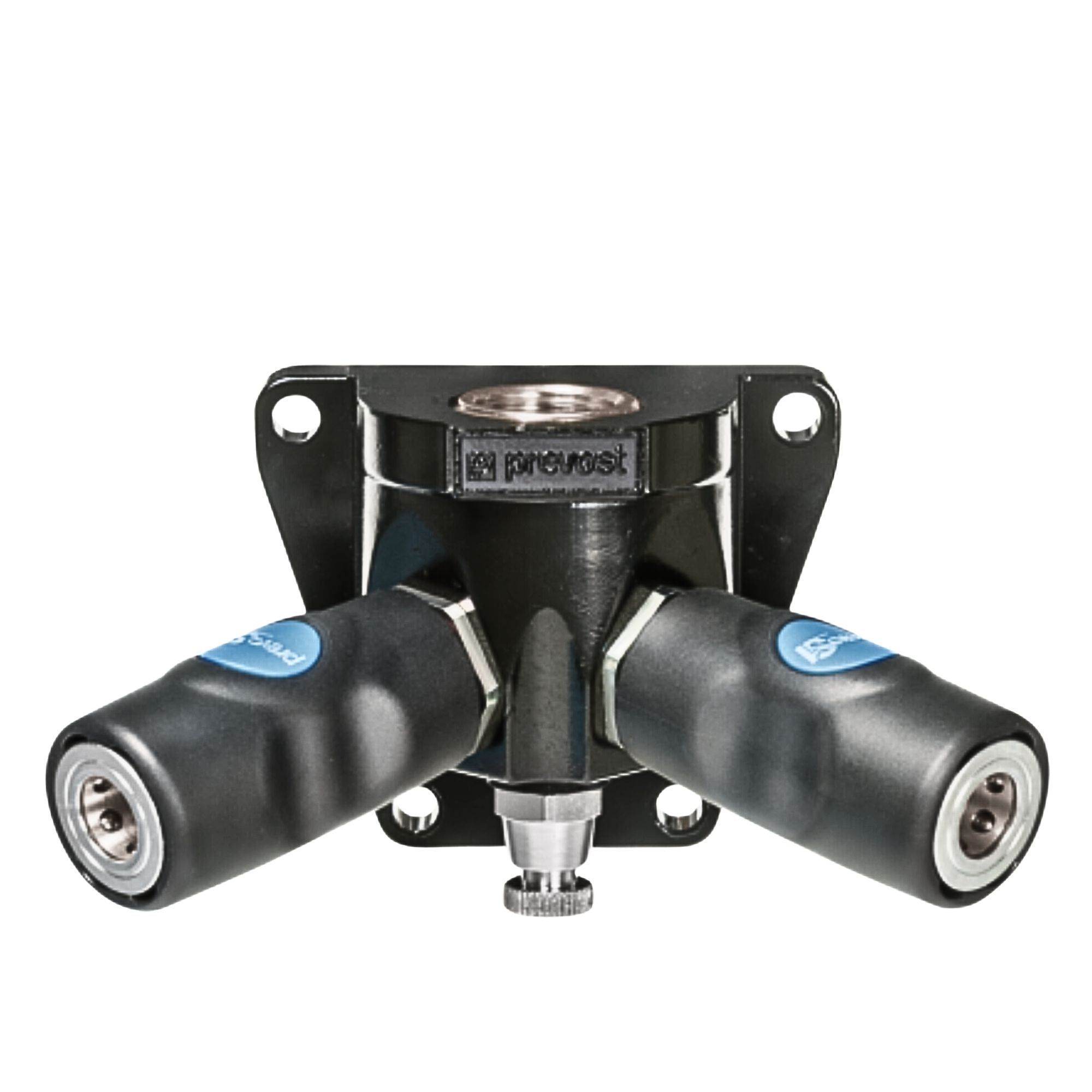

Female thread double wall manifold
2 Couplers and drain
1/4" Industrial Interchange
| Inlet NPT female thread |
1/2" FNPT
|
|
Outlet 2 couplings
|
ISI 06 |
|
Technology
|
"One push" safety system (avoids hose whip)
|
|
Operating pressure
|
29 to 174 psi
|
|
Flow rate at 100 psi
|
34 cfm (ΔP : 10 psi)
|
|
ID Passage
|
1/4" body size
|
|
Temperature
|
+5°F to +158°F
|
|
Construction
|
Composite body
|
|
Highlight
|
Anti-static Non scratch
|

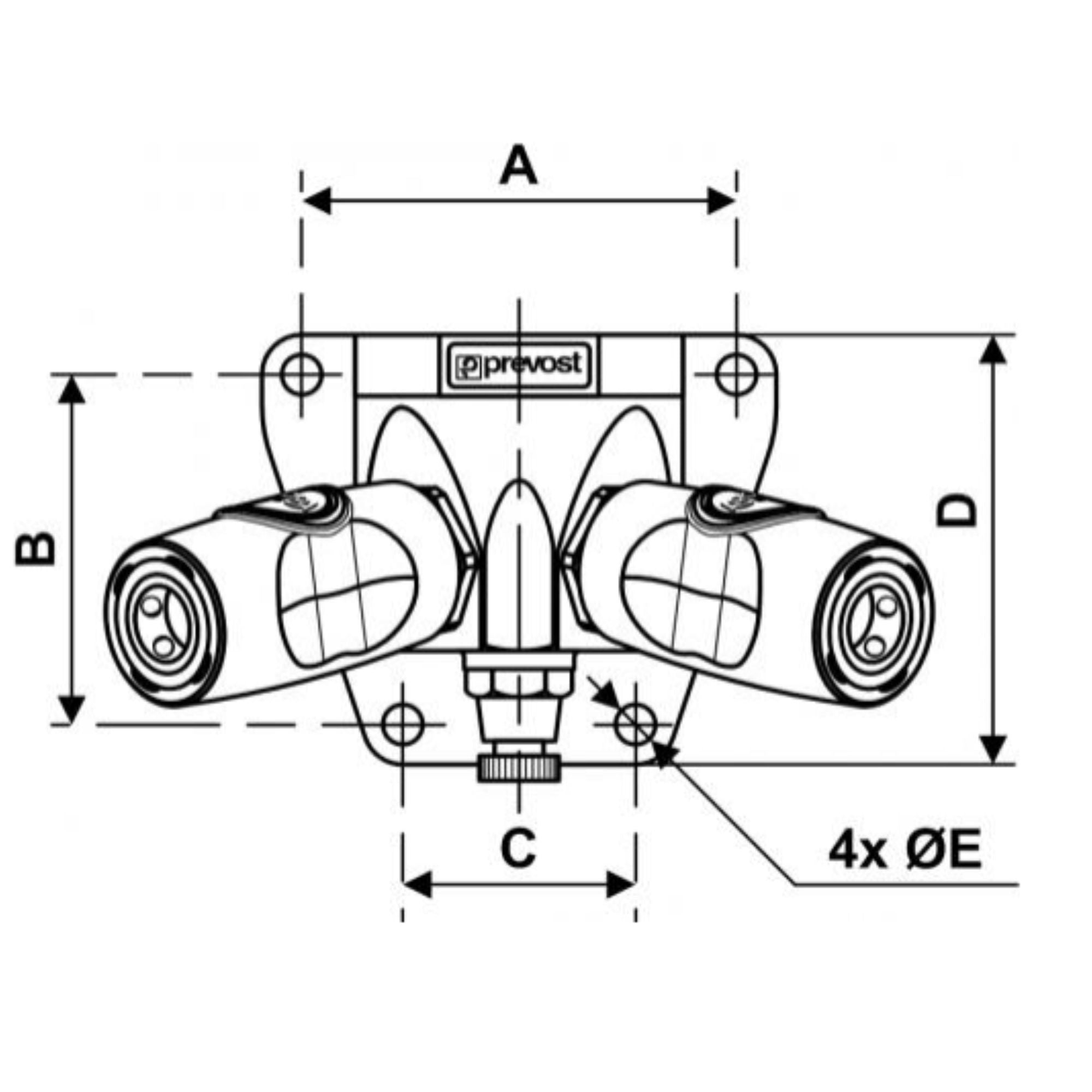

| Dimensions | ||||
| Reference | A inch | B inch | C inch | D inch |
| ISI 068203WK | 2.795 | 2.244 | 1.496 | 2.756 |
| ISI 068204WK | 2.795 | 2.244 | 1.496 | 2.756 |
ID #: 195773
