Mfr. Part #: PPS1 UN32
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.
ID #: 204900

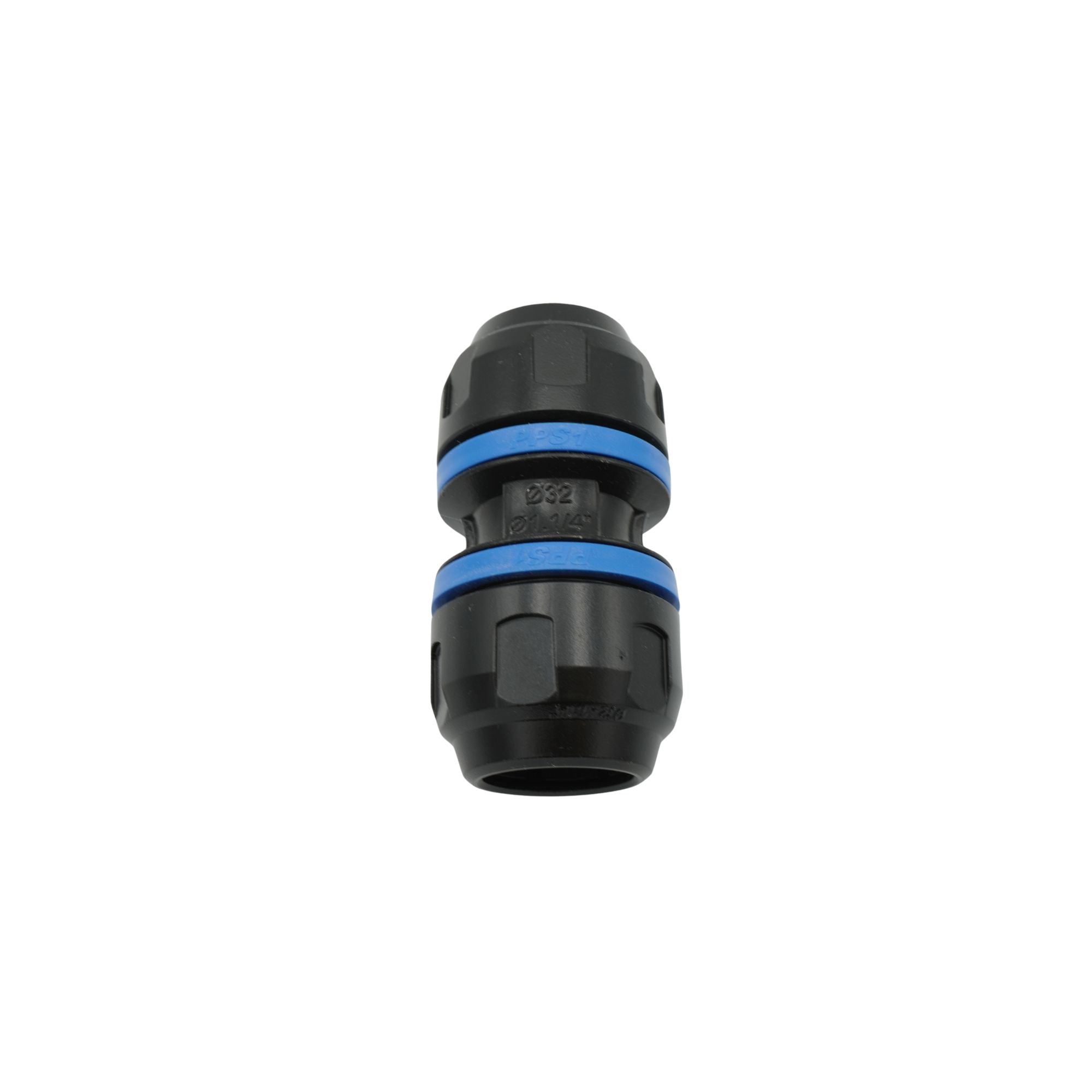

Equal Socket 1-1/4"
| Net weight (kg) | For pipe OD = | Max. output pressure | Temperature | |
|---|---|---|---|---|
| 0,279 | 1,25 inch | 232 | -4°F to 176°F |

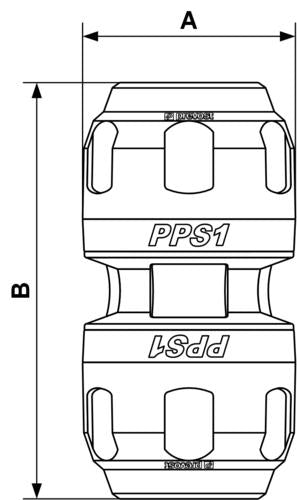

| A inch | B inch |
|---|---|
| 2.24 | 4.17 |
| For pipe OD (in) | (1) 1,2" |
| Technology | PPS Grip Concept |
| Operating pressure | 0 to 16 bar |
| Vacuum capability | -0.98 bar (vacuum 98%) |
| Temperature | -20°C to +80°C |
| Construction | Pipe and fittings: alu. |
| Highlight | Scalable system |
| Meets standards | PED REACH |
