Mfr. Part #: PPS1 9C32
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.
ID #: 204899

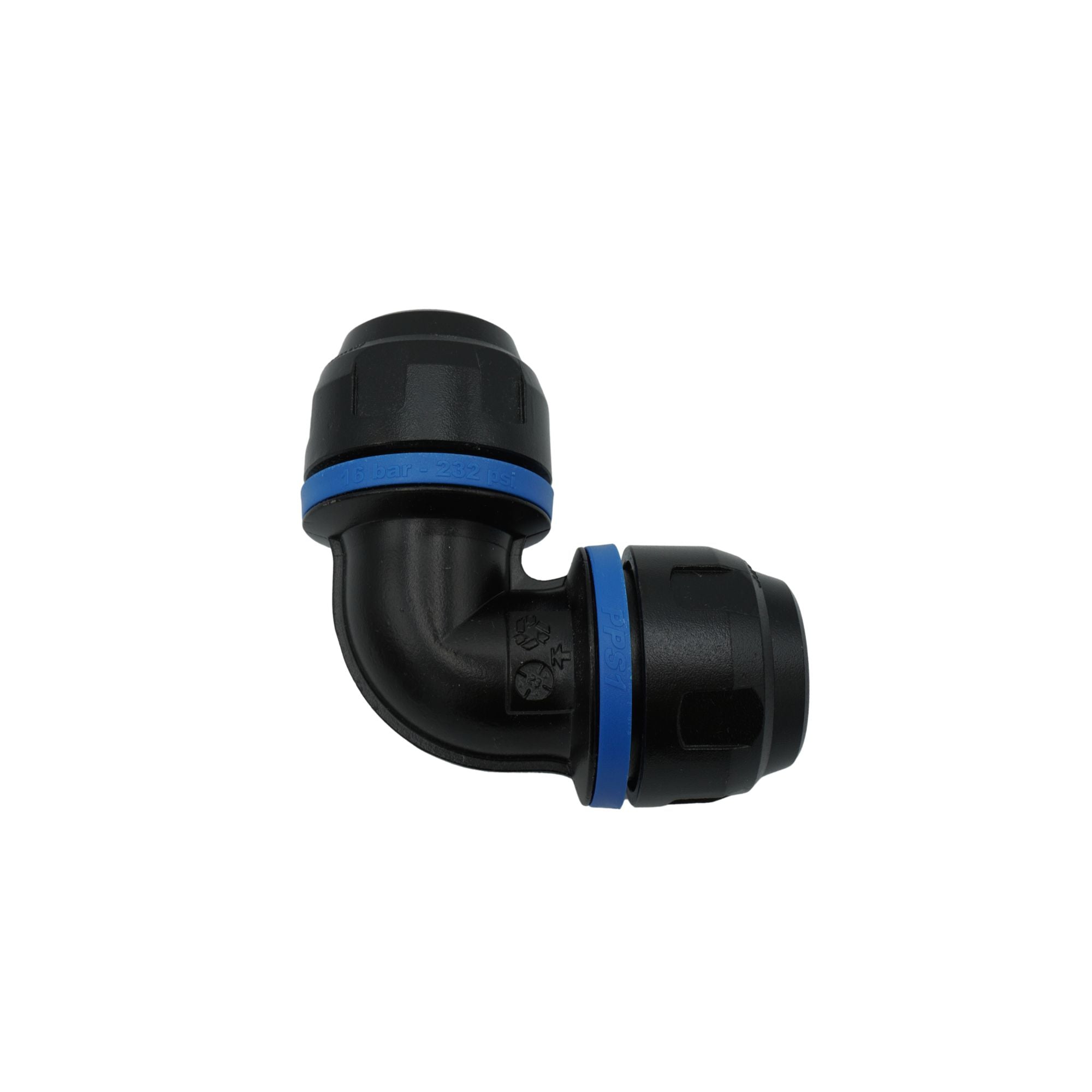

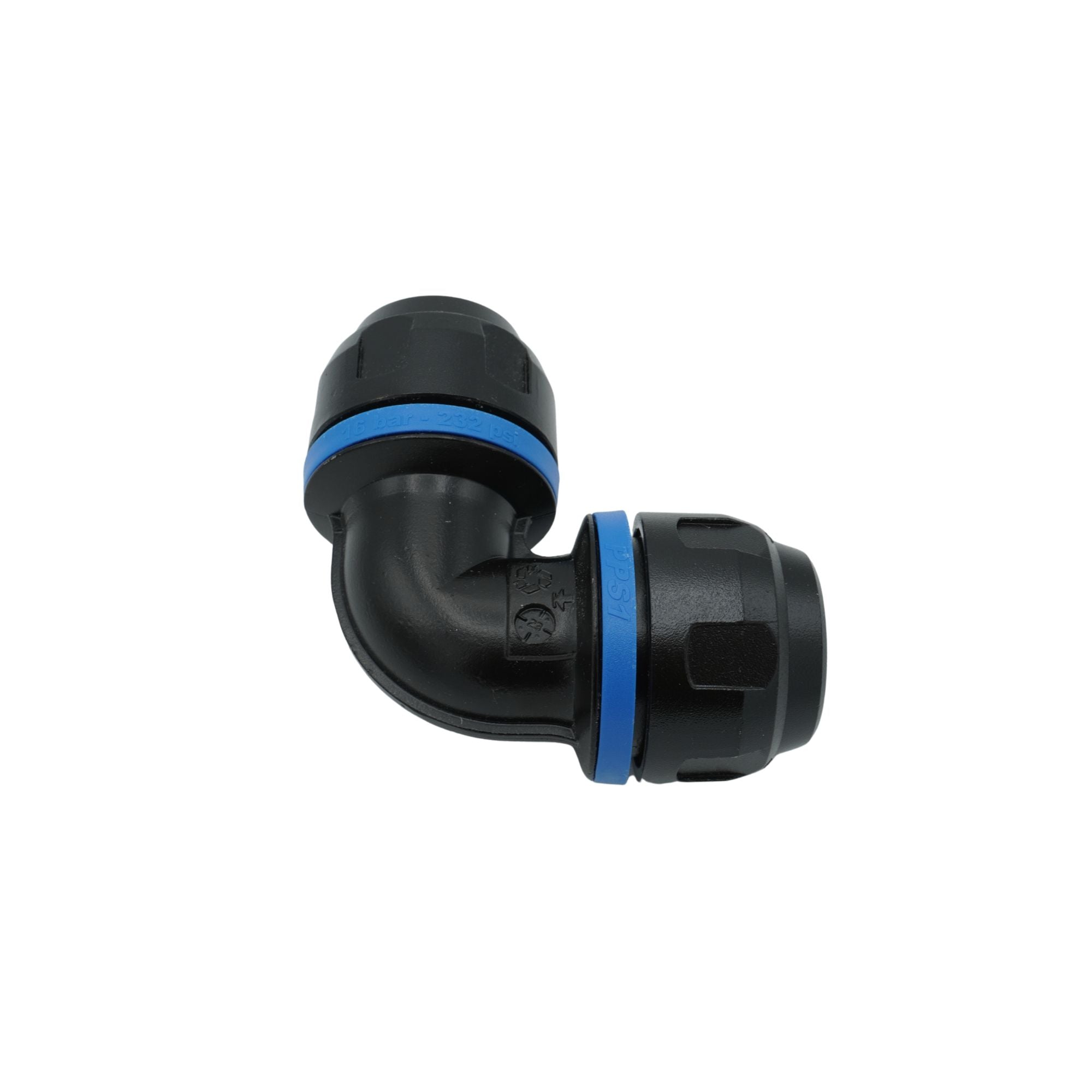

Elbow Socket 90 degrees 1-1/4"
| Net weight (kg) | For pipe OD = | Max. output pressure | Temperature |
|---|---|---|---|
| 0,33 | 1,25 inch | 232 | -4°F to 176°F |

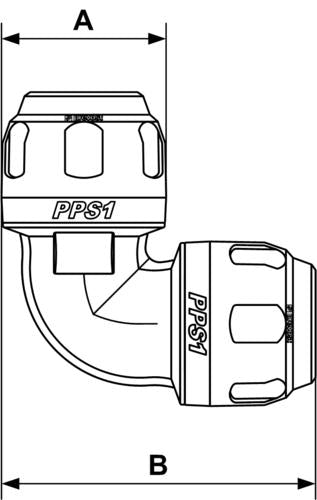

| A inch | B inch |
|---|---|
| 2.24 | 4.17 |
| For pipe OD (in) | (1) 1/2" |
| Technology | PPS Grip Concept |
| Operating pressure | 0 to 232 psi |
| Vacuum capability | -29 inHg (vacuum 98%) |
| Temperature | -4°F to +176°F |
| Construction | Pipe and fittings: aluminum |
| Highlight | Scalable system |
| Meets standards | ASME B31.3 REACH |
