Mfr. Part #: PPS BTU3218
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.
ID #: 214826

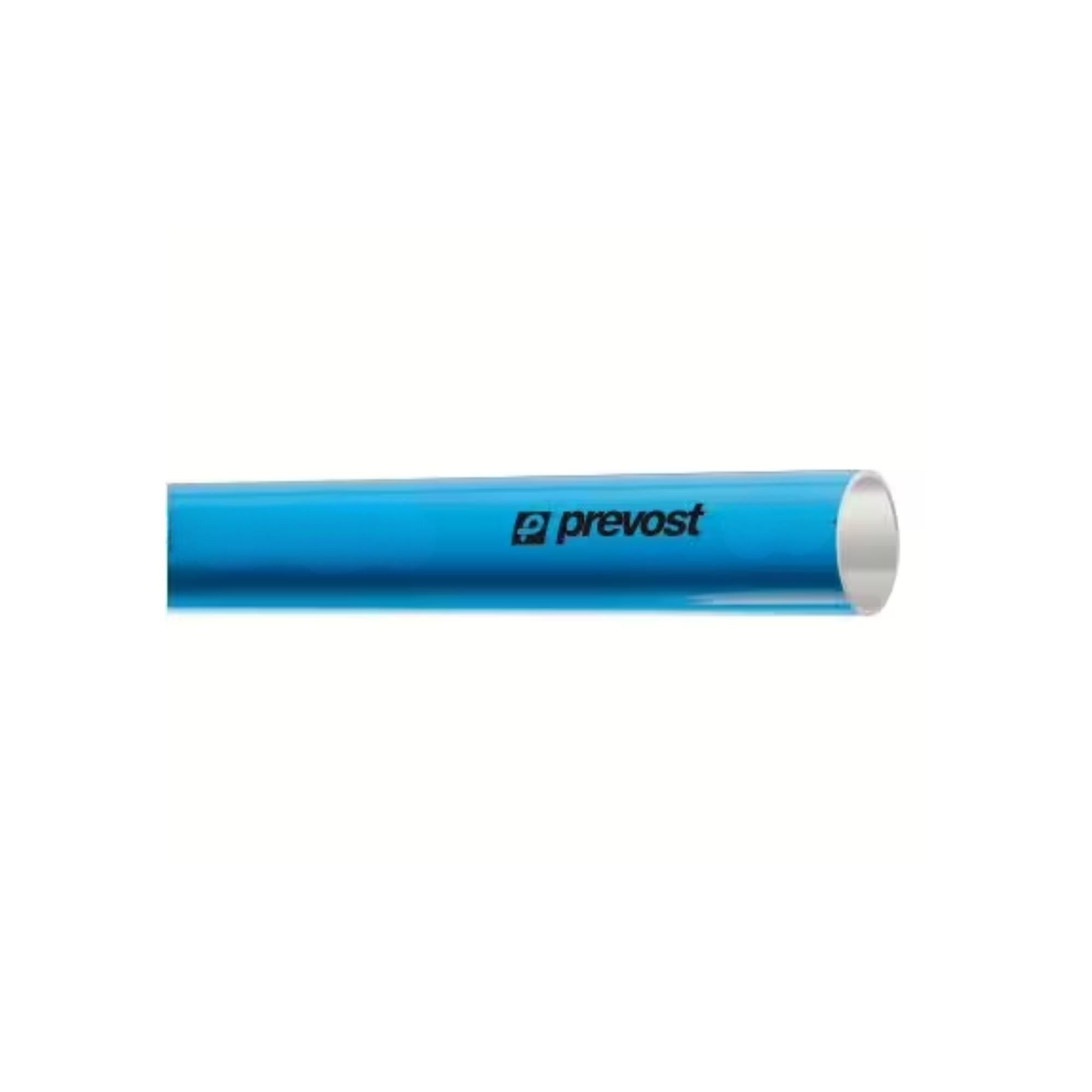

Aluminum PPS TUB32L6 pipe, 32mm OD, 6m length, lightweight, corrosion-resistant, ideal for compressed air and vacuum distribution systems.
| PPS TUB32L6 Specifications | |
|---|---|
| Model | PPS TUB32L6 |
| Product Type | Aluminum Compressed Air Pipe (Prevost PPS System) |
| Manufacturer | Prevost (PPS System) |
| Outer Diameter | 32 mm |
| Length | 6 m (approx. 19.7 ft) |
| Material | Extruded Aluminium |
| Connection Technology | PPS Grip Concept (push-to-fit with stainless steel teeth + contoured seal) |
| Maximum Operating Pressure | 16 bar (232 psi) |
| Vacuum Capability | Up to –0.98 bar (~98% vacuum) |
| Operating Temperature | –20 °C to +80 °C (–4 °F to +176 °F) |
| Color | Blue (compressed air coding) |
| Standards / Compliance | ASME B31.3, REACH |
| Weight (approx.) | Specification varies by length; single 6 m section |
| Typical Applications | Compressed air distribution, vacuum pneumatic networks, industrial & automotive facilities, scalable piping systems |
