Mfr. Part #: NWB116-012-003
ID #: 179421

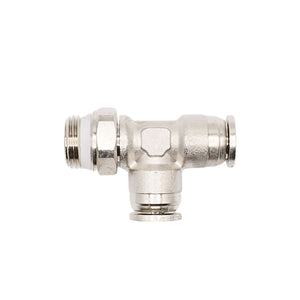

Aventics-NP Brass Push-in fitting 12mm Tube X 1/2"NPT Universal male swivel run tee
| Specifications | |||
| Tube Size | 12mm | ||
| Thread-Type | 1/2" Universal | ||
| Style | Standard | ||
| NWB116 | Tube Diameter | Thread |
| NWB116-004-000 | 4mm | 1/8" |
| NWB116-005-000 | 5mm | 1/8" |
| NWB116-006-000 | 6mm | 1/8" |
| NWB116-006-001 | 6mm | 1/4" |
| NWB116-008-000 | 8mm | 1/8" |
| NWB116-008-001 | 8mm | 1/4" |
| NWB116-008-002 | 8mm | 3/8" |
| NWB116-010-001 | 10mm | 1/4" |
| NWB116-010-002 | 10mm | 3/8" |
| NWB116-010-003 | 10mm | 1/2" |
| NWB116-012-001 | 12mm | 1/4" |
| NWB116-012-002 | 12mm | 3/8" |
| NWB116-012-003 | 12mm | 1/2" |
| D | D1 | L | L1 | H | SW | SW1 |
| 10 | 4 | 16.5 | 5.5 | 12.5 | 9 | 13 |
| 11 | 4 | 16.5 | 5.5 | 13 | 10 | 13 |
| 12 | 4 | 19 | 5.5 | 13.5 | 11 | 13 |
| 12 | 6 | 19 | 7.7 | 13.5 | 11 | 15 |
| 15 | 4 | 23.2 | 5.5 | 16 | 14 | 13 |
| 15 | 6 | 23.2 | 7.7 | 16 | 14 | 15 |
| 15 | 8 | 23.4 | 8.2 | 16 | 14 | 19 |
| 17.5 | 6 | 26.5 | 7.7 | 17 | 15 | 15 |
| 17.5 | 8 | 26.5 | 8.2 | 17 | 15 | 19 |
| 17.5 | 8 | 26.5 | 8.2 | 16.8 | 16 | 19 |
| 20.5 | 6 | 29.1 | 7.7 | 17 | 15 | 15 |
| 20.5 | 8 | 29.1 | 8.2 | 17 | 15 | 19 |
| 20.5 | 8 | 29.1 | 8.2 | 17 | 15 | 19 |
