| Specification | |

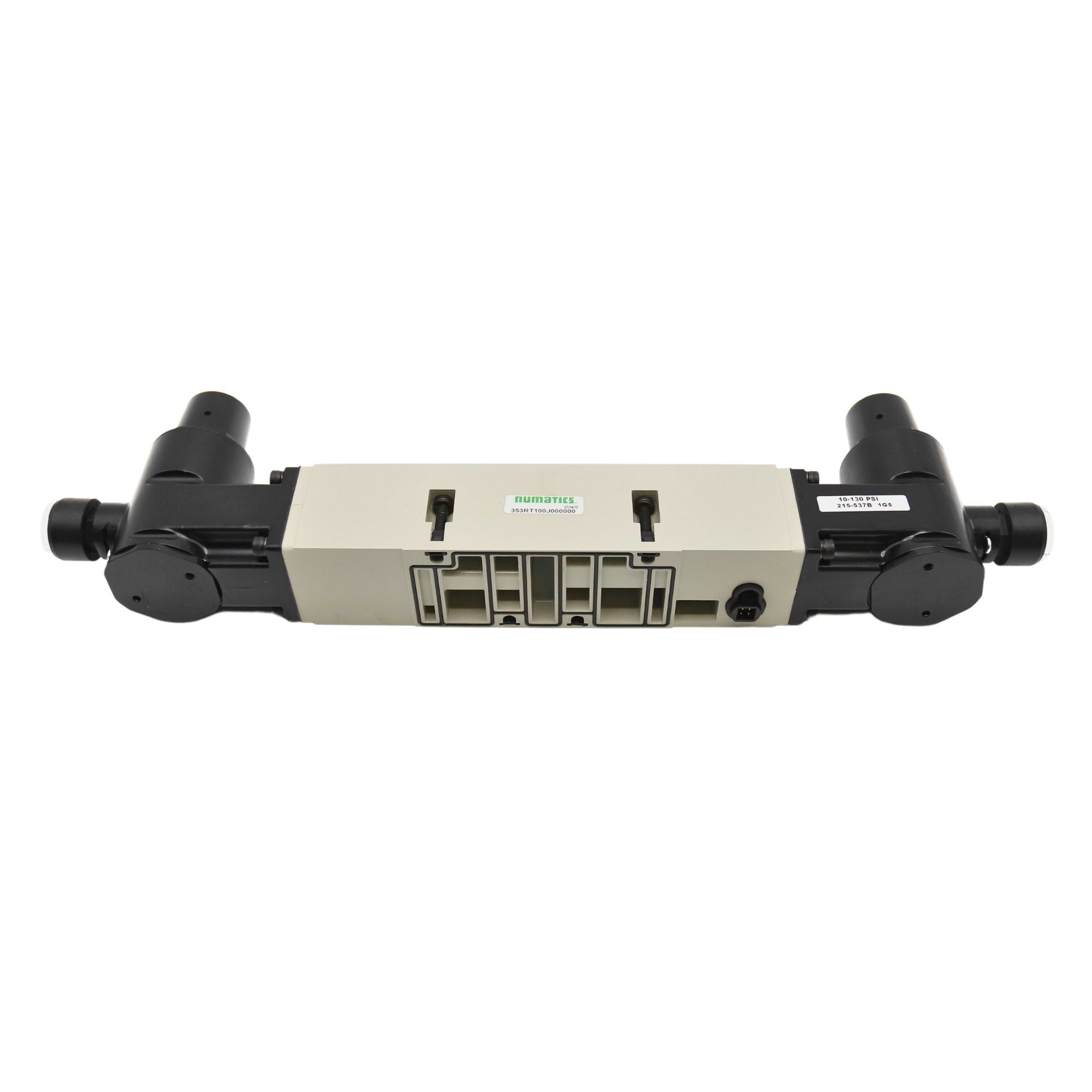

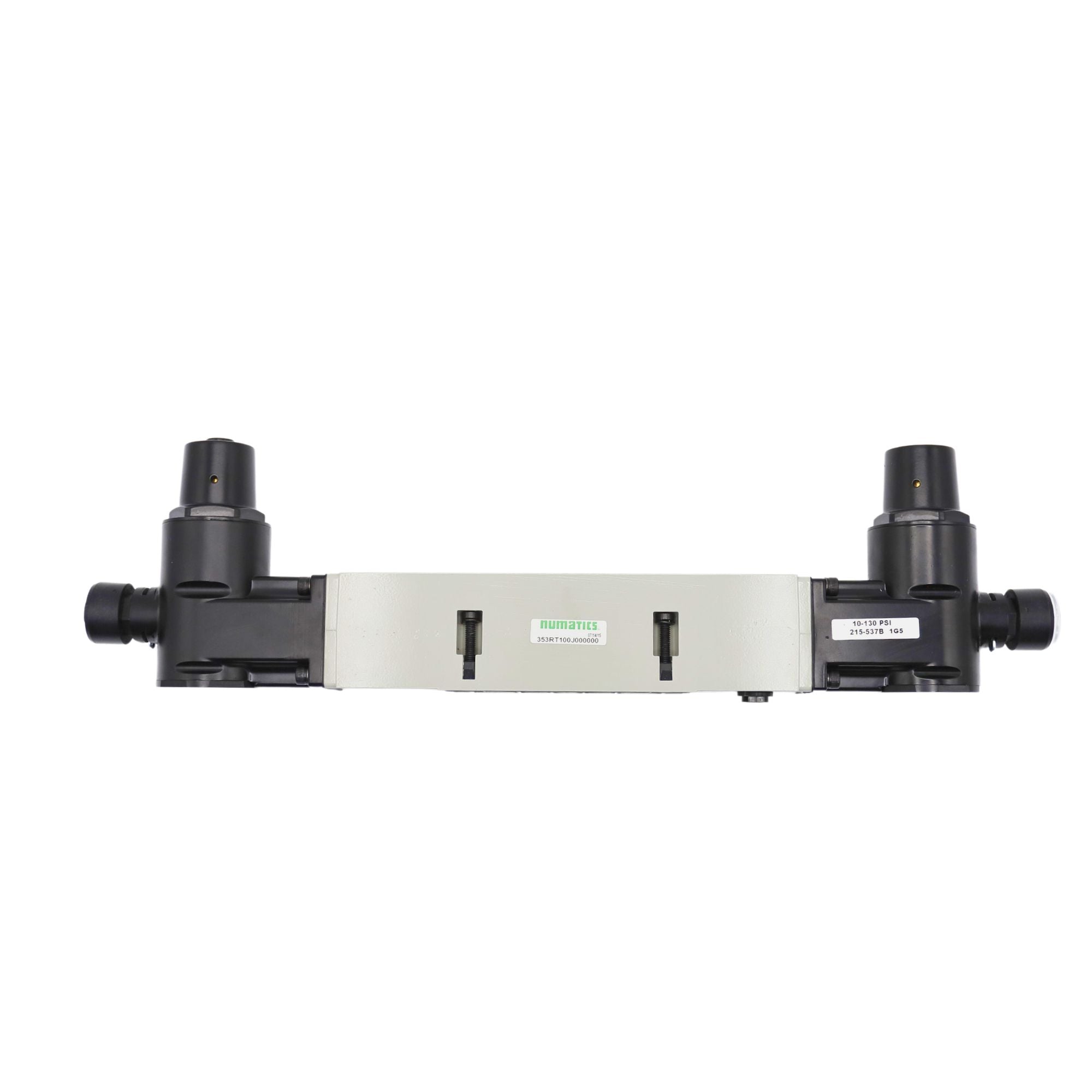

| Valve Series | 353 |
| Port Size | 3/8" |
| Regulator Type | 2 Pressure Selector |
| Pressure Range | 2 Position, 4-Way |
| Ports | 5 Ported, 2 & 3 Position, 4-way, Spool & Sleeve |
| Mounting | Valve Unit Only |
| Port Type | Valve Unit Only |
| Wiring Option | Plug-in Receptacle Assembly |
| Voltage | No option |
| Valve Data | English | Metric |
| CV | 3.5 | 3.5 |
| Flow Capacity | 161 SCFM @ 80 PSIG upstream pressure to atmosphere | 3500 NI/m @ 6 bar upstream to 5 bar downstream |
| Operating Pressure Range | 28”Hg Vacuum to 145 PSIG | Vacuum to 10 bar |
| Pilot Pressure Range | 26 to 120 PSIG | 1.8 to 8.2 bar |
| Temperature Range | -10°F to + 115°F | -23˚C to +46° C |
| All Solenoids are Continuous Duty Rated | 24 VDC | 110-120 VAC 50/60 Hz |
| Power (watts) | 2.5 | 4.2 |
| Holding Current (amps) | 0.1 | 0.03 |
| Response Time in Seconds | Energize | De-Energize | Energize | De-Energize |
| 2-Position, Single, Spring Return | 0.021 | 0.067 | 0.015 | 0.07 |
| 2-Position, Double, Detented | 0.017 | N/A | 0.015 | N/A |
| 3-Position, Spring Centered | 0.021 | 0.072 | 0.015 | 0.08 |
ID #: 139586
