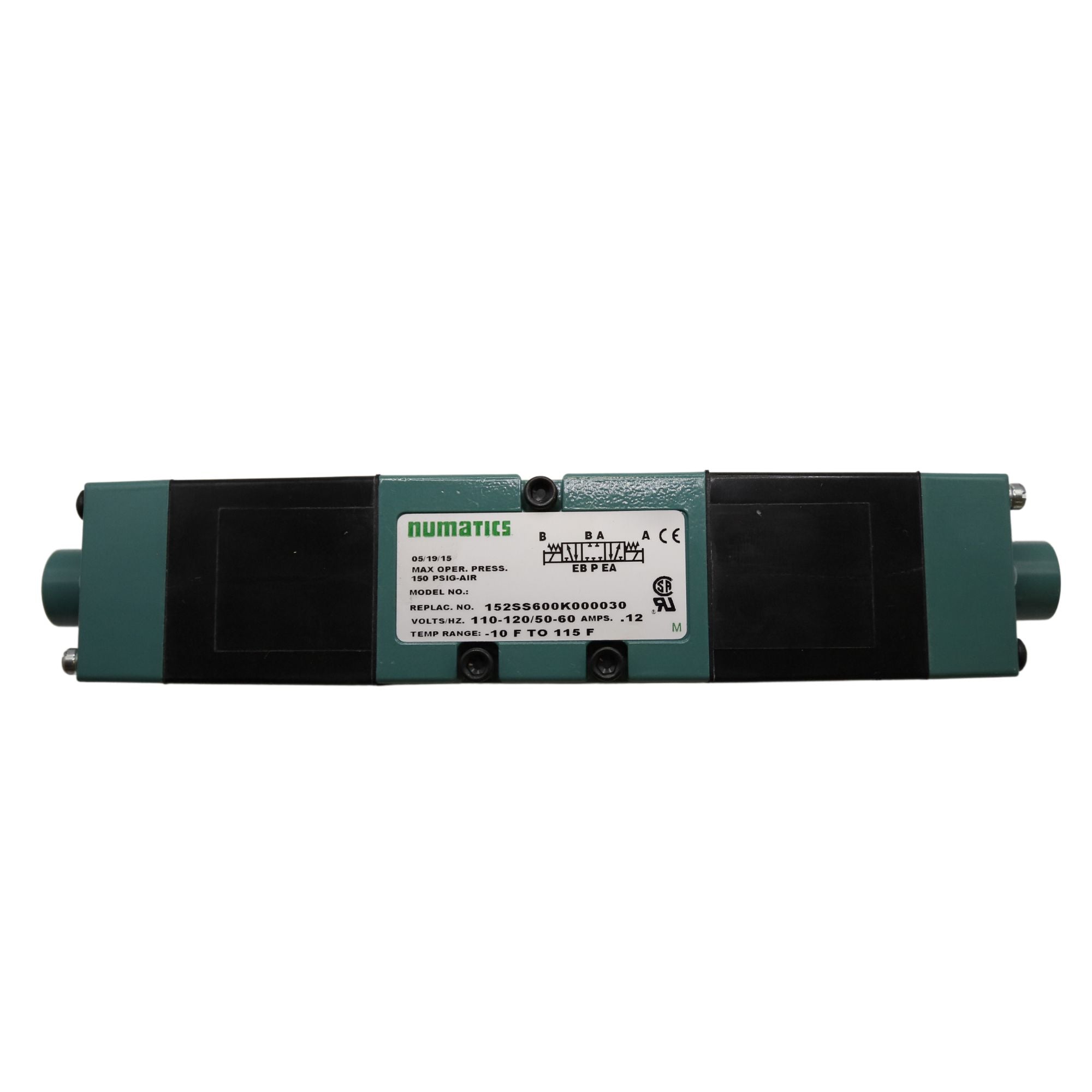

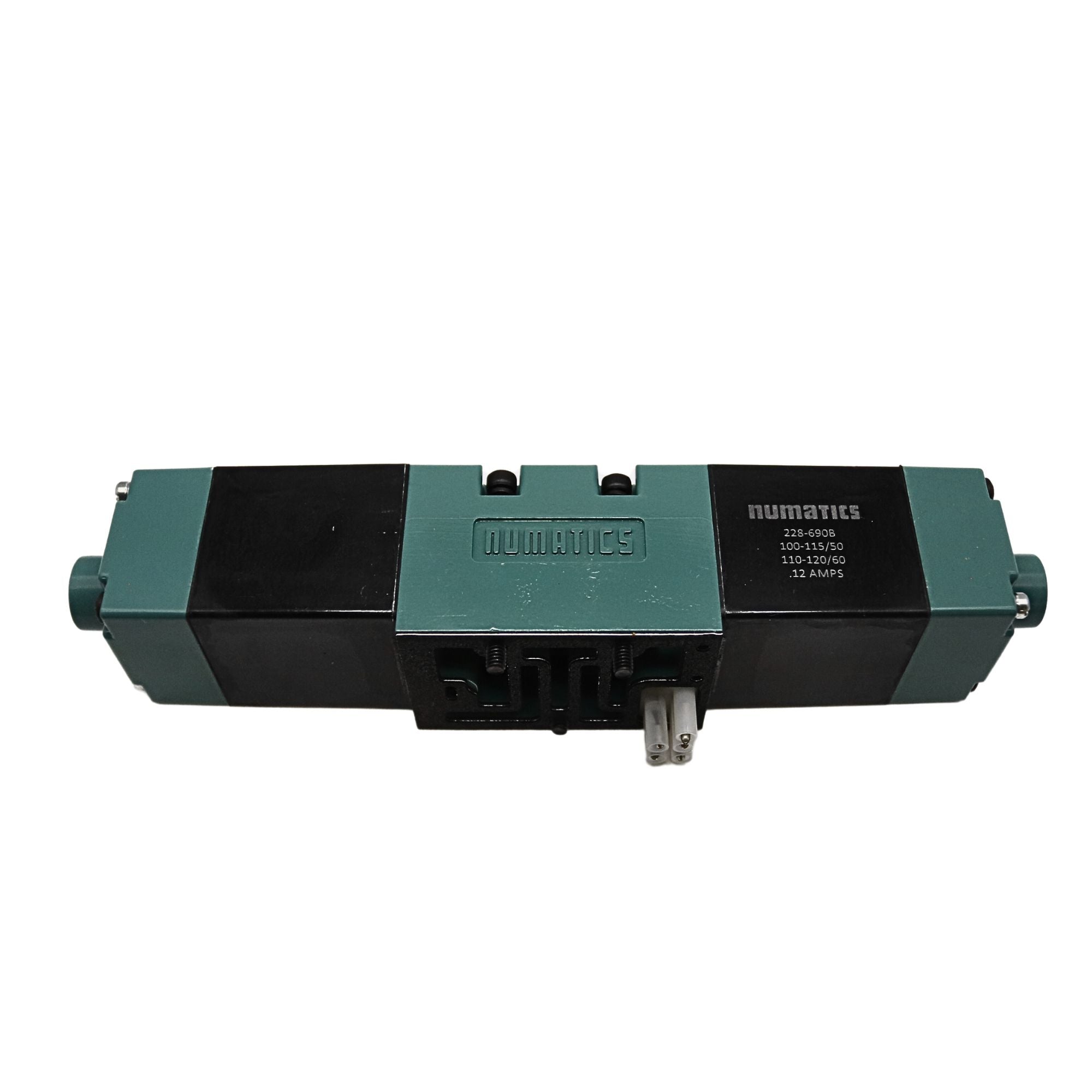

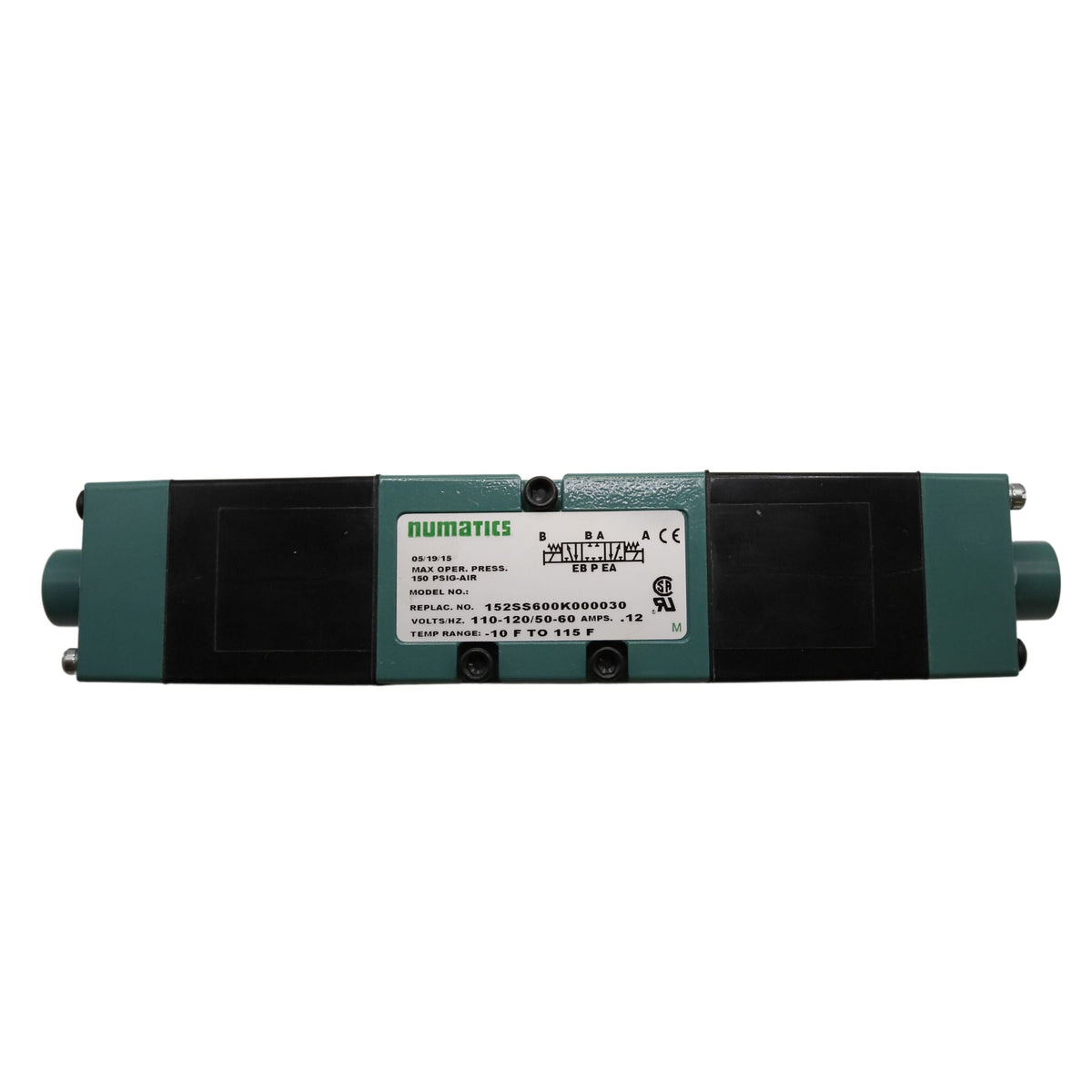

Mfr. Part #: 152SS600K000030
ID #: 139492
| Specification | |
| Valve Series | 152 |
| Port Size | 1/4"" |
| Valve Type | Double Direct Solenoid w/Flush Non-locking Override (Standard) |
| Function | 3 Postion, 4-Way Open Center |
| Temperature Range | -10F To +115F (-23C To +46C) |
| Pilot Pressure Range | 20-100PISG /2 Postion Detented 15-125PISG |
| Operating Pressure Range | 28HG Vaccum To 150PISG/ Vacuum To 10 Bar |
| Ports | 5 Ported, 2 & 3 Postion, 4-way, Spool & Sleeve |
| Flow Capacity | 65-69 SCFM @ 80PISG/ 1379-1477 NI/M @ 6 Bar |
| Mounting | Regulator Unit Only w/o Mounting |
| Port Type | FNPT Pressure Ports w/FNPT Conduit Ports or Valve Unit w/o Mounting |
| Voltage | 110-120 VAC, 50-60 Hz |
| Options | No Options |
| Wiring Option | Plug-in, w/Light, VAC |
