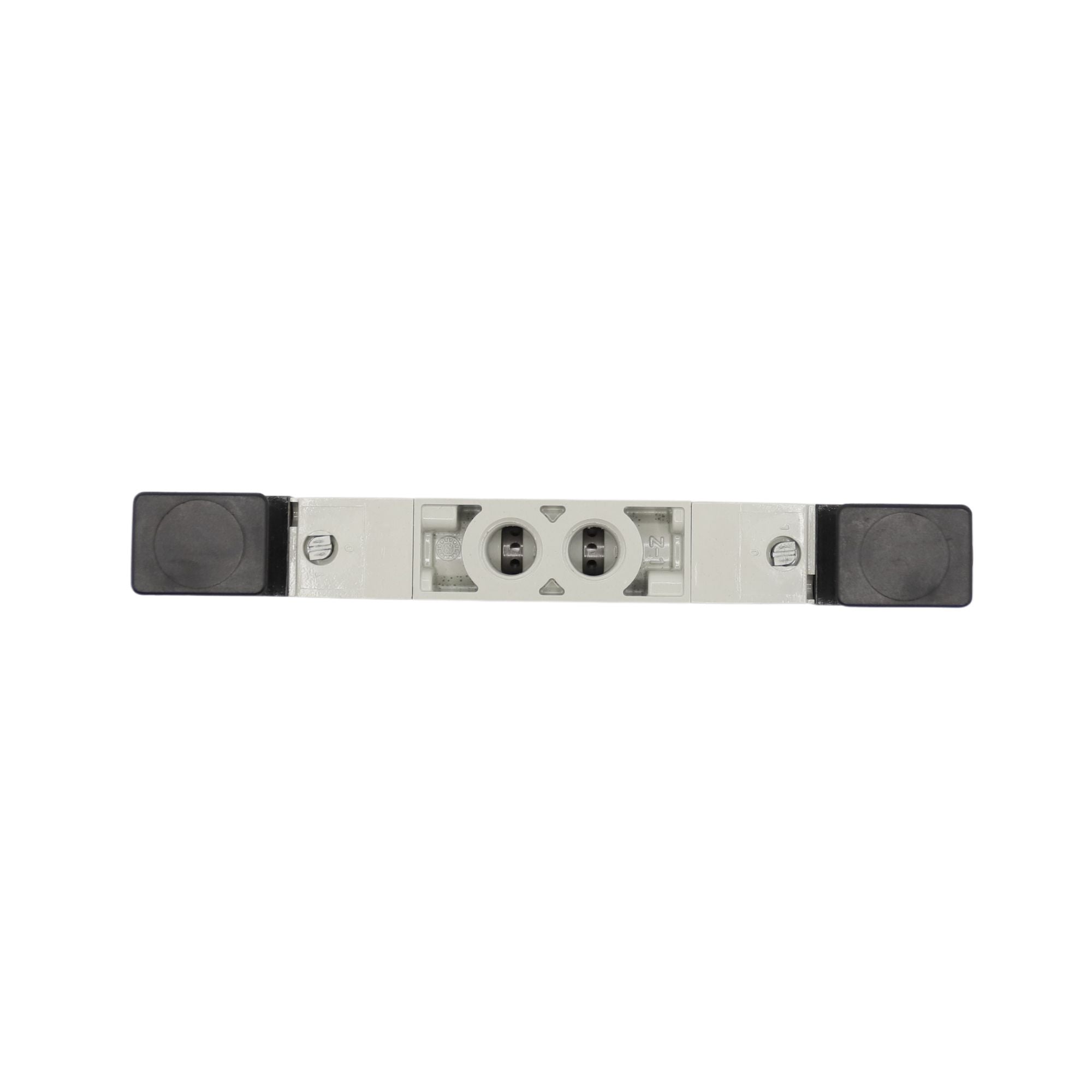

Mfr. Part #: L12BB552B000061
| Specifications | |
| Valve series & Port size | L12 & 1/4" |
| Valve Type | Double Solenoid Air Pilot, w/flush Locking Override |
| Function | 3 Position, 4-way Open Center |
| Mounting | Line Mounted (Manifold Mount with Adapter) |
| Wiring Option | Din Plug-in DC Solenoid |
| Port Type | FNPT |
| Options | N/A |
| Voltage | 24VDC |
| Ports | 5 Ported, 2 & 3 Position, 4-way, spool and sleeve |
| Flow Capacity | 46 scfm @ 80 PSIG / 985 NI/M @ 6 Bar |
| Main Valve Operating Pressure Range | 28 HG Vacuum to 150PSIG / Vacuum to 10 Bar |
| Pilot Pressure Range (Internal & External) | 14.5-150PSIG / (1-10 Bar) |
| Temperature Range (Ambient) Solenoid Pilot Actuated | -10F - +115F/ (-23C- +46) |
| Temperature Range (Ambient) Air Pilot Actuated | -10F - +150F/ (-23C- +66) |
ID #: 139752
