Mfr. Part #: R503A1B10NA00F1
ID #: 168099

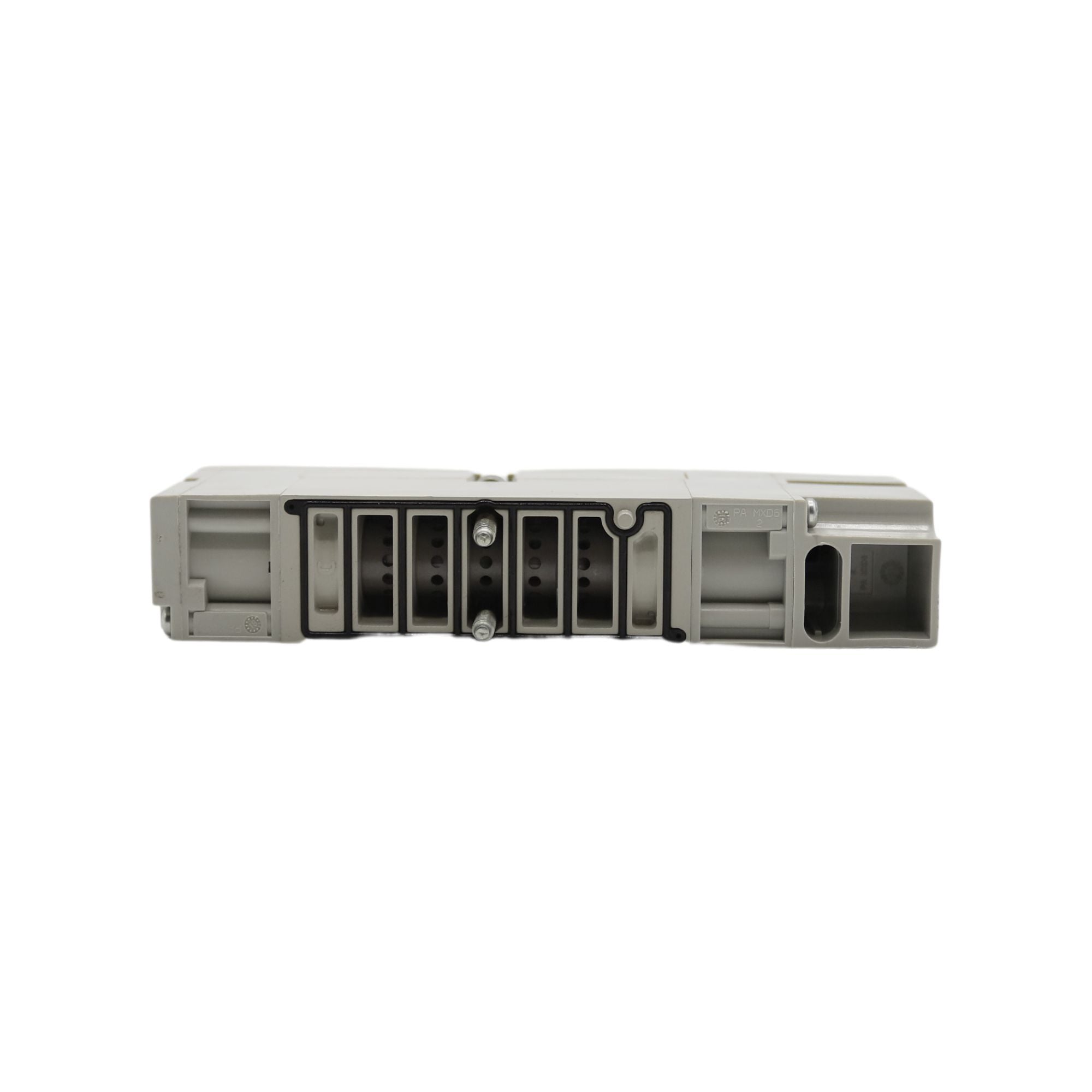

Aventics Solenoid Pilot Valve 503 Series 4/2 SPR RTN
| Specifications | |
| Product Series | 503= 26mm Valve |
| Revision | Initial Release |
| Valve Type | Spool and Sleeve |
| Actuation | Solenoid pilot w/ Flush Non-Locking Override |
| Function | 2 Position 4-Way (5/2), Spring Return |
| Port Size | No port size |
| Electrical | M12 Connector Pin 1 = Not Used; Pin 2 = Coil 12; Pin 3 = Common; Pin 4 = Coil 14 |
| Options | Standard (no Options) |
| Voltage | 24 VDC |
