Mfr. Part #: R501A2B50MA00F1
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

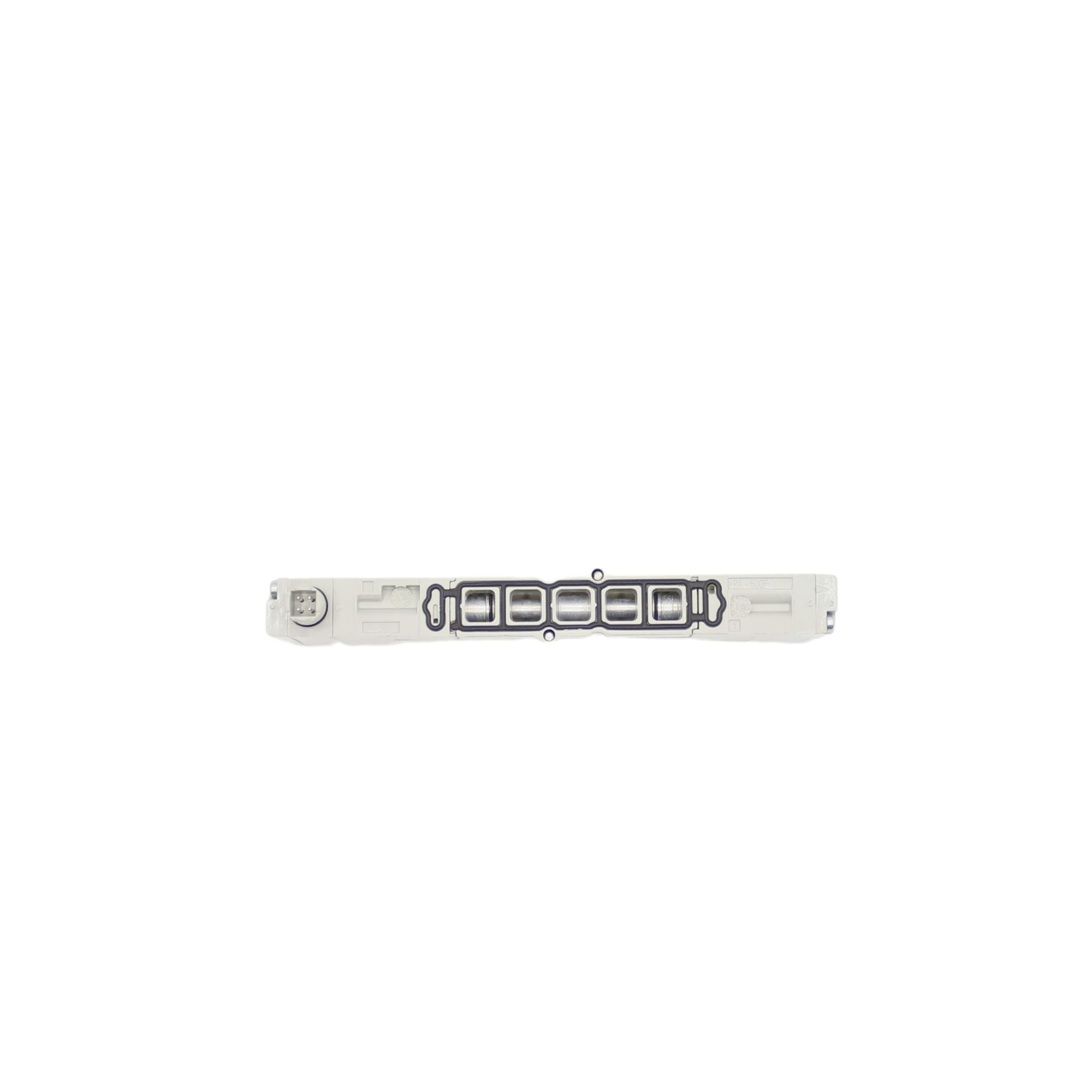

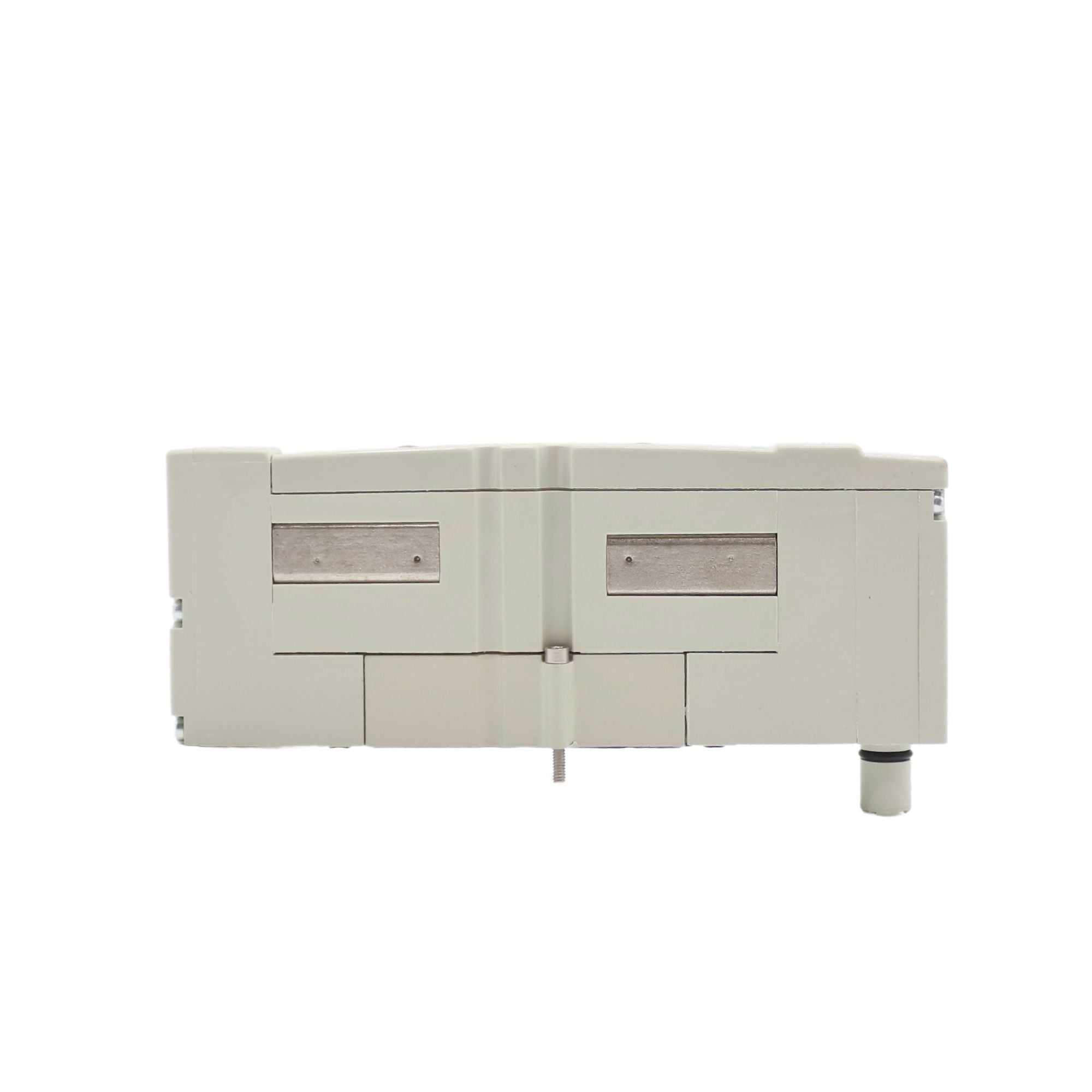

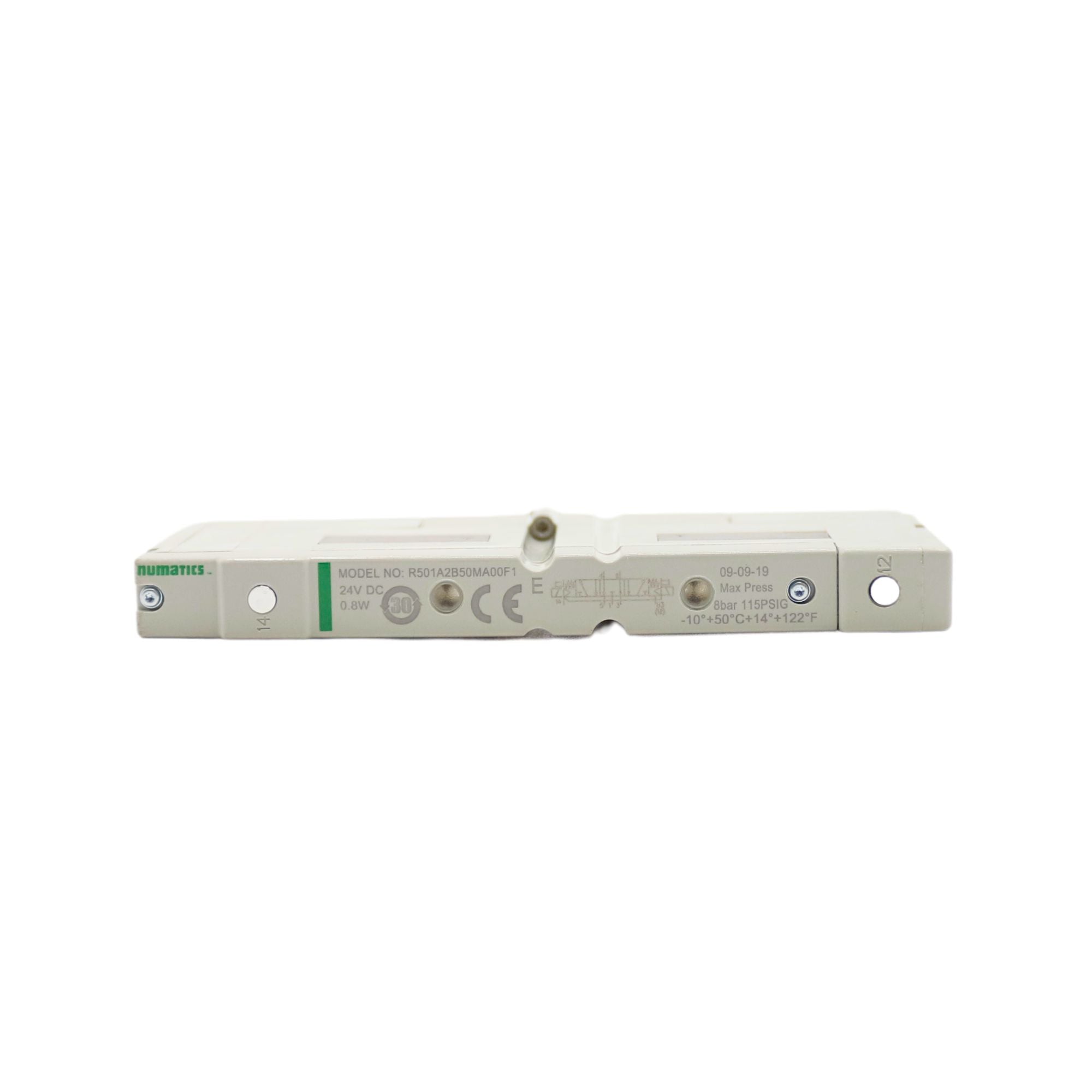

Aventics Solenoid Pilot Valve 501 Series 4/3 Open CTR 24VDC, FL Non LK Override
| Function Type | Function Code | ISO Symbol | Interface | Rated Flow @ 90 PSI Cv (l/min (ANR)) | Response Time (ms) | Pilot Pressure at 73°F/23°C PSI (bar) | Operating Pressure Port 1 PSI (bar)/inHG (-bar) | |
| 5/3 | B5 | Center Open to Exhaust | Proprietary | 1->2 : 1->4 | 2->3 : 4->5 | Energized/De-energized | min./max | min./max |
| 0.42 | 0.47 | 27/12 | 29/115 | 28/115 | ||||
| Materials in Contact w/Fluid | |
| Body | Aluminum, E-Coating Treatment |
| Spool | Aluminum or Stainless Steel |
| Pistion | POM |
| Spring | Steel |
| Spool Seals | NBR + PUR |
| Other Seals | NBR + FKM |
| Other Materials | PAM (Polyarylamide 50% Glass Fiber Reinforced |
| Valve to Subbase Gasket | NBR |
| Subbases | Aluminum, E-Coating Treatment |
| Solenoids Continuous Duty rate | 24 VDC |
| Power (watts) | 0.8 |
| Holding Current (Amps) | 0.025 |
| Ambient Temperature Range Min/Max | -14° F (-10° C)/122° F (50° C) |
ID #: 139885
