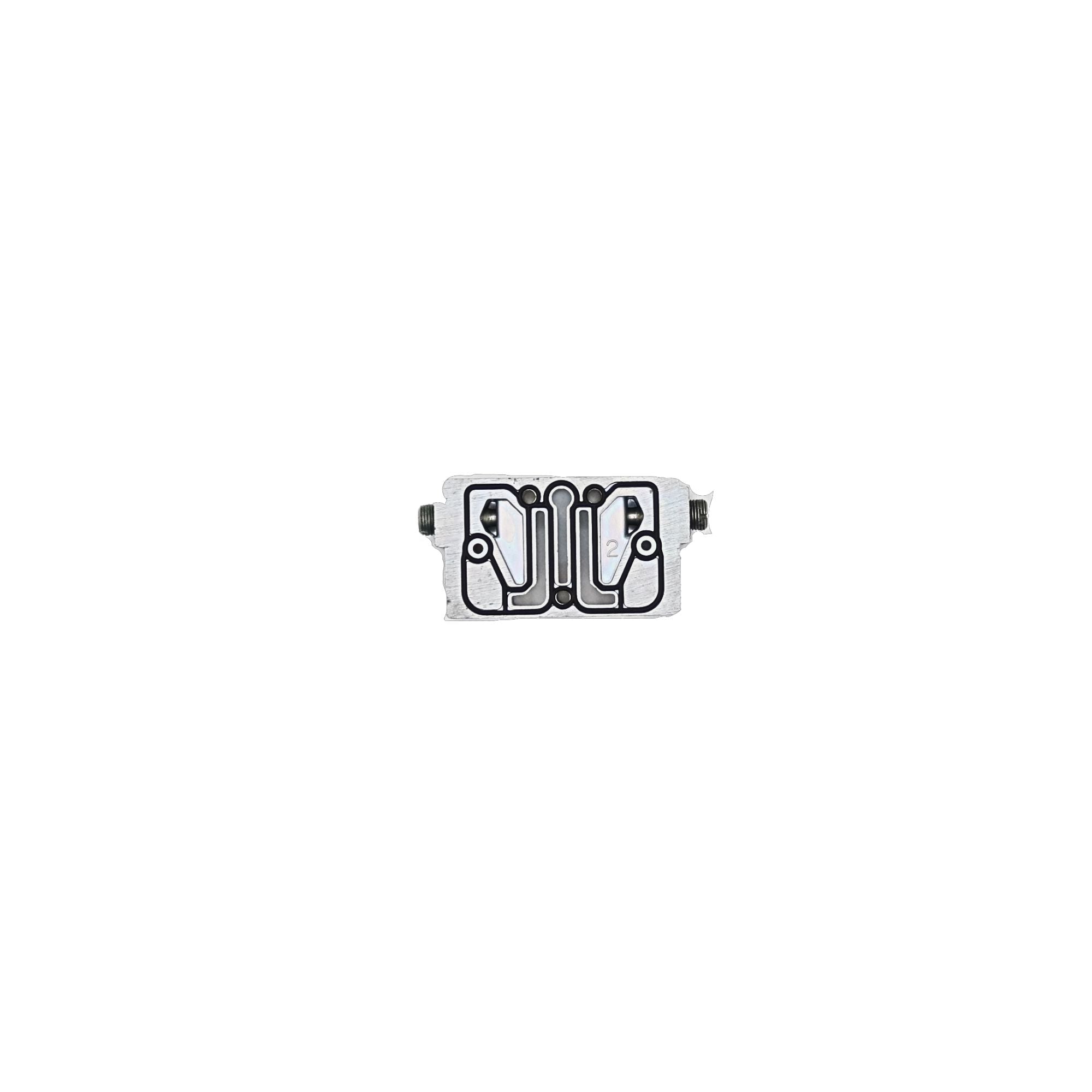

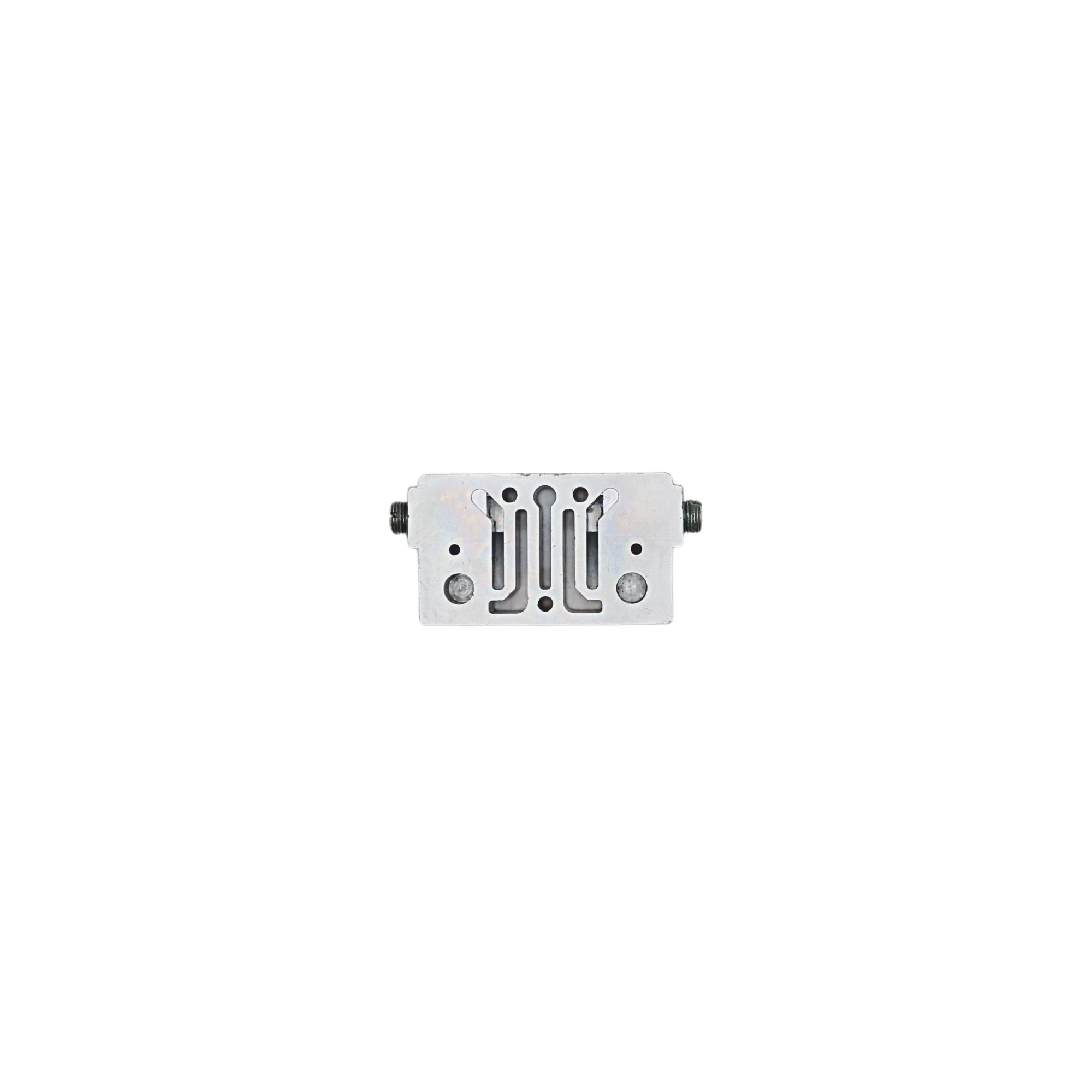

Numatics speed control kit is for use with Mark 3 series solenoid valves
| Specification | |
| Temperature Range | -10F To +115F (-23C To +46C)/ Air Pilot 200F (93C) |
| Pilot Pressure Range | 20-100PSIG / 2 position Detented 15-100PISG |
| Operating Pressure Range | 28HG Vacuum To 150PISG/ Vacuum To 10 Bar |
| Ports | 5 Ported, 2 & 3 position, 4-way, Spool & Sleeve |
| Flow Capacity | 8.34-16.21 SCFM @ 80PISG/ 177-345 NI/M @ 6 Bar |
ID #: 139560
