Mfr. Part #: 031RD700O000000
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.
ID #: 139444

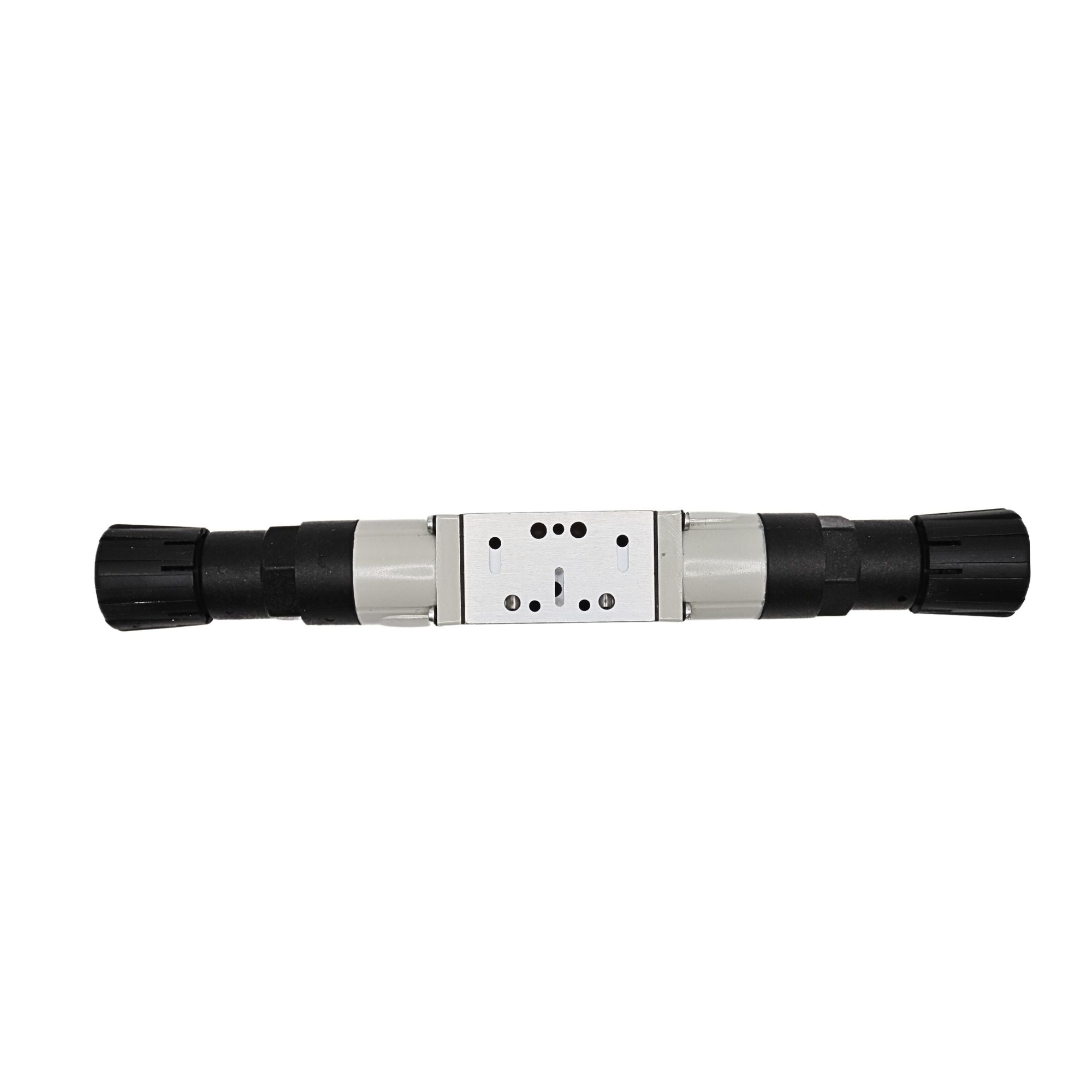

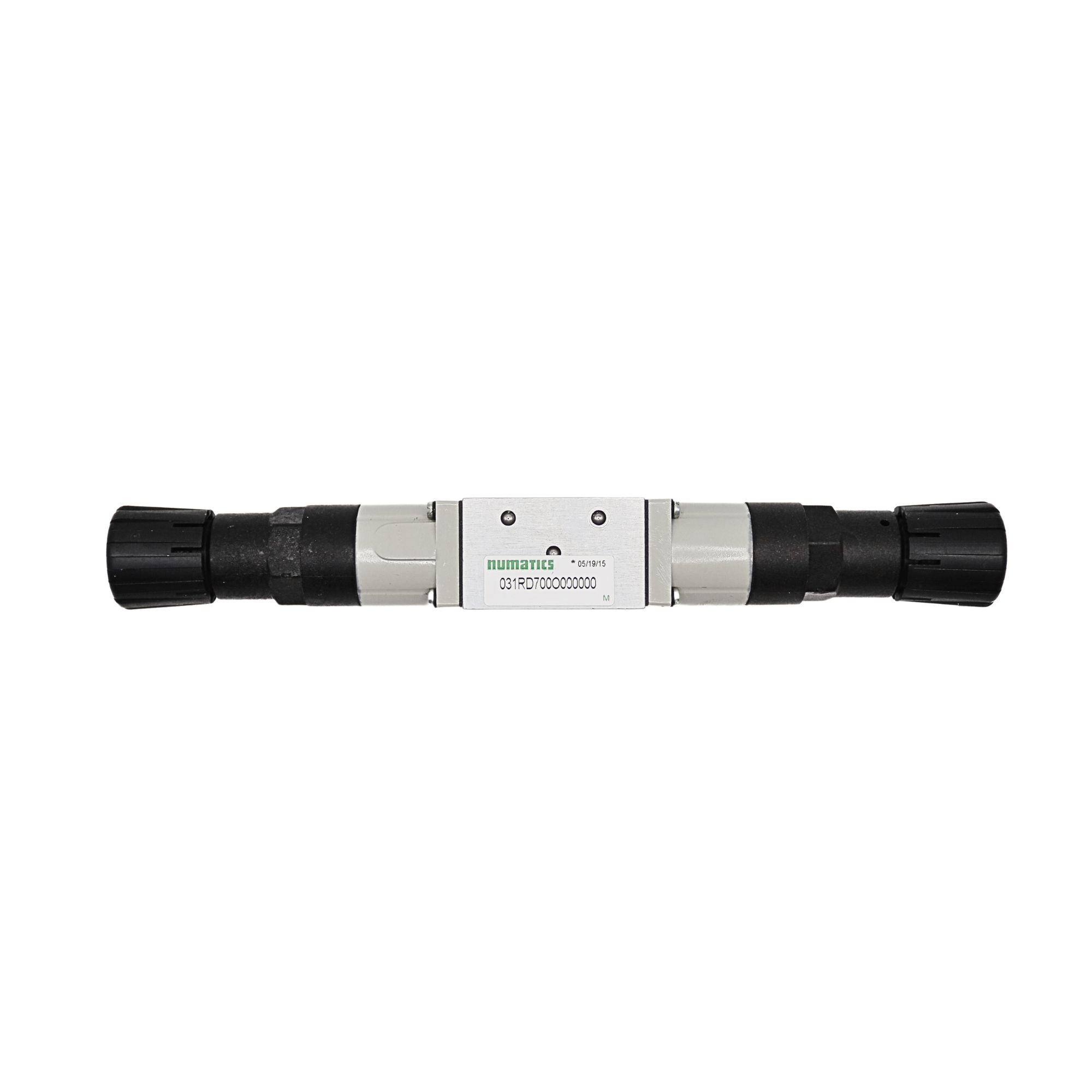

Numatics Mark 3 series type RD dual pressure regulator has measuring range of 0 - 100 psig features 1/8" NPTF connection
The Mark 3 Series offers high flow in a miniature valve design. The Mark 3 line is available with 10-32 or 1/8 porting in either sub-base or manifold mounting, sandwich speed control and sandwich pressure regulators.
| Specification | |
| Valve Series | 31 |
| Port Size | 1/8" |
| Regulator Type | Dual Pressure to Ports 3 (EB) & 5 (EA) |
| Pressure Range | 0-100 PISG (0-6.9 Bar) |
| Temperature Range | -10F To +115F (-23C To +46C) /Air Pilot +200F (+93C) |
| Pilot Pressure Range | 20-100PISG /2 Position Detented 15-100PISG |
| Operating Pressure Range | 28HG Vacuum To 150PISG/ Vacuum To 10 Bar |
| Ports | 5 Ported, 2 & 3 Position, 4-way, Spool & Sleeve |
| Flow Capacity | 8.34-16.21 SCFM @ 80PISG/ 177-345 NI/M @ 6 Bar |
| Mounting | Regulator Unit Only |
| Port Type | FNPT |
| Wiring Option | Non Plug-in |
