Mfr. Part #: 152RD100J000000
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.
ID #: 139484

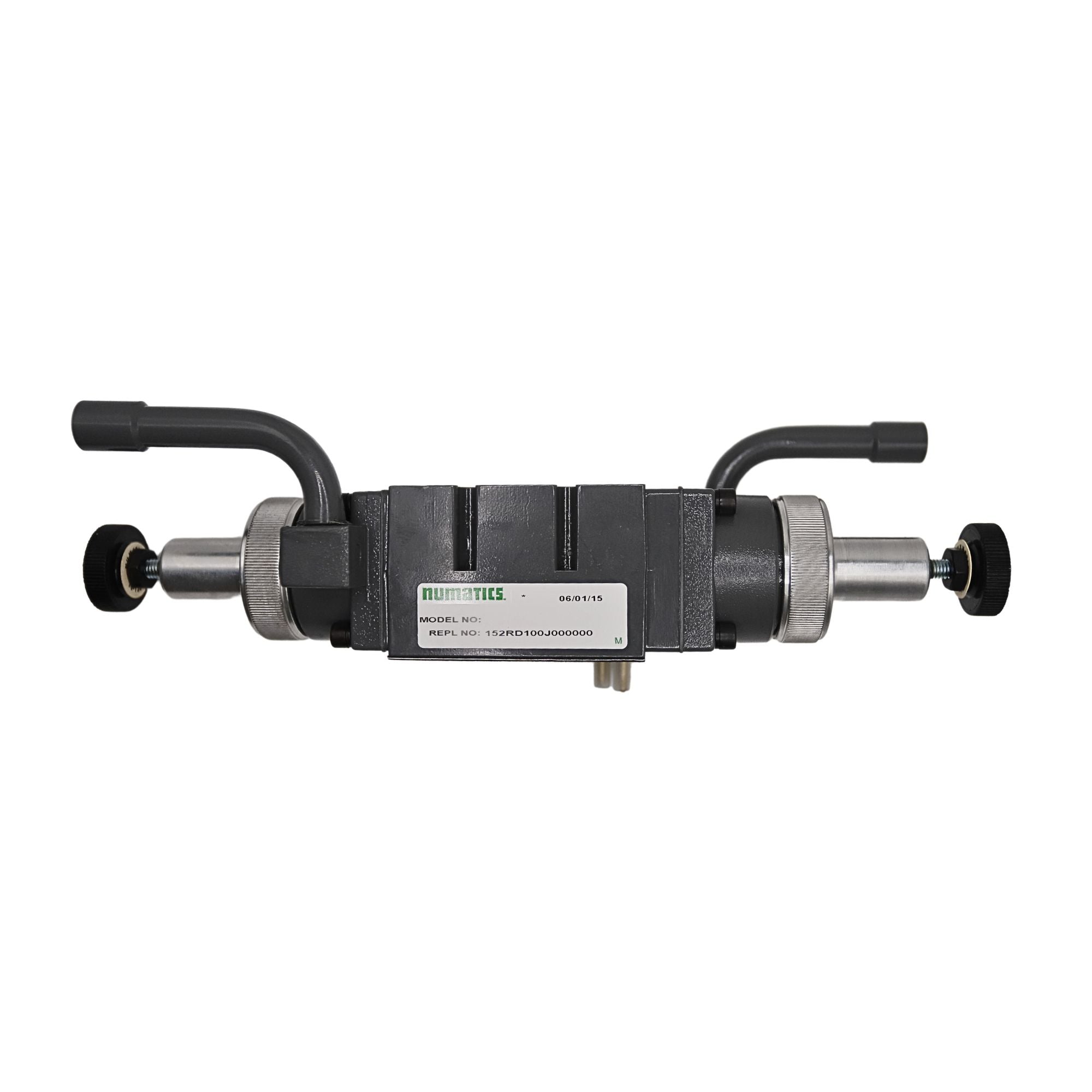

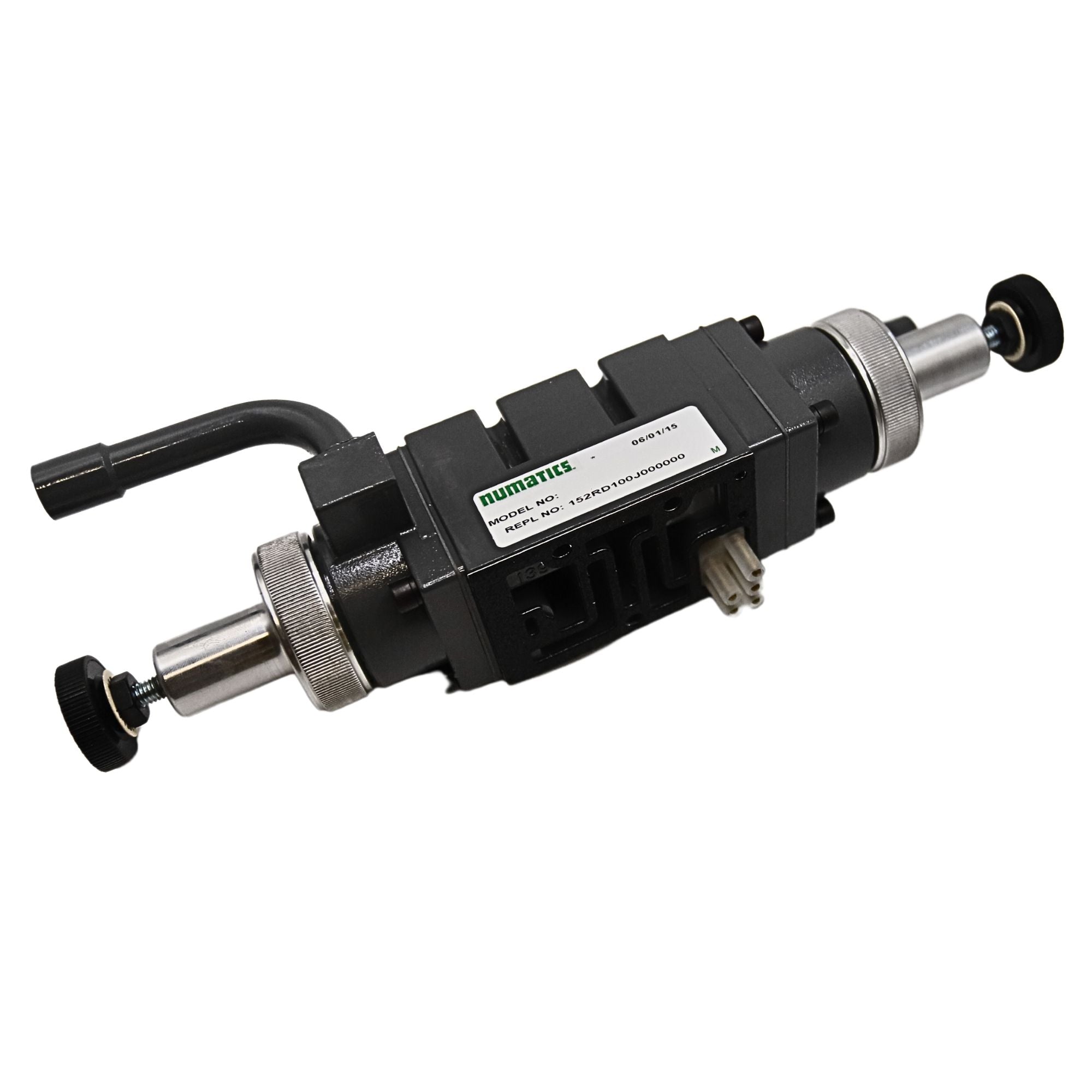

Numatics Mark 15 series type RD dual pressure regulator has measuring range of 10 - 130 psig features 1/4" NPTF connection
Mark 15 valves have a plug-in base or manifold, a plug-in solenoid and an optional speed control sandwich. The unit to base electrical plug permits instant valve unit replacement without disconnecting piping or wiring.
| Specification | |
| Valve Series | 152 |
| Port Size | 1/4" |
| Regulator Type | Dual Pressure to Ports 3 (EB) & 5 (EA) |
| Pressure Range | 0-100 PISG (0.7-9 Bar) |
| Temperature Range | -10F To +115F (-23C To +46C) /Air Pilot +200F (+93C) |
| Pilot Pressure Range | 20-100PISG /2 Postion Detented 15-100PISG |
| Operating Pressure Range | 28HG Vaccum To 150PISG/ Vacuum To 10 Bar |
| Ports | 5 Ported, 2 & 3 Postion, 4-way, Spool & Sleeve |
| Flow Capacity | 65-69 SCFM @ 80PISG/ 1379-1477 NI/M @ 6 Bar |
| Mounting | Regulator Unit Only w/o Mounting |
| Port Type | FNPT Pressure Ports w/FNPT Conduit Ports or Valve Unit w/o Mounting |
| Voltage | No Voltage |
| Options | No Options |
| Wiring Option | Plug-in Receptacle Assembly (MK 15 only) |
