Mfr. Part #: 553RS115JP00000
ID #: 139590

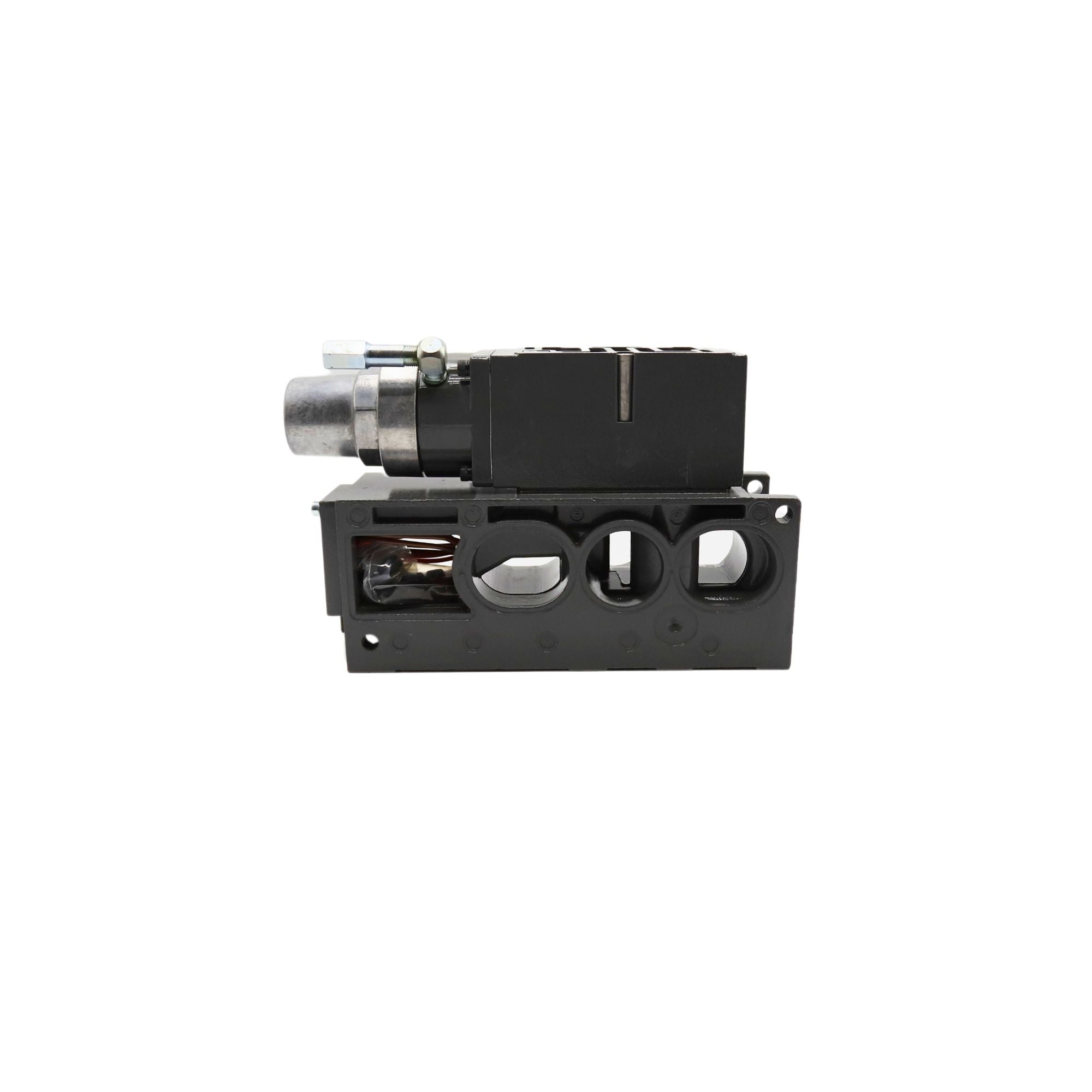

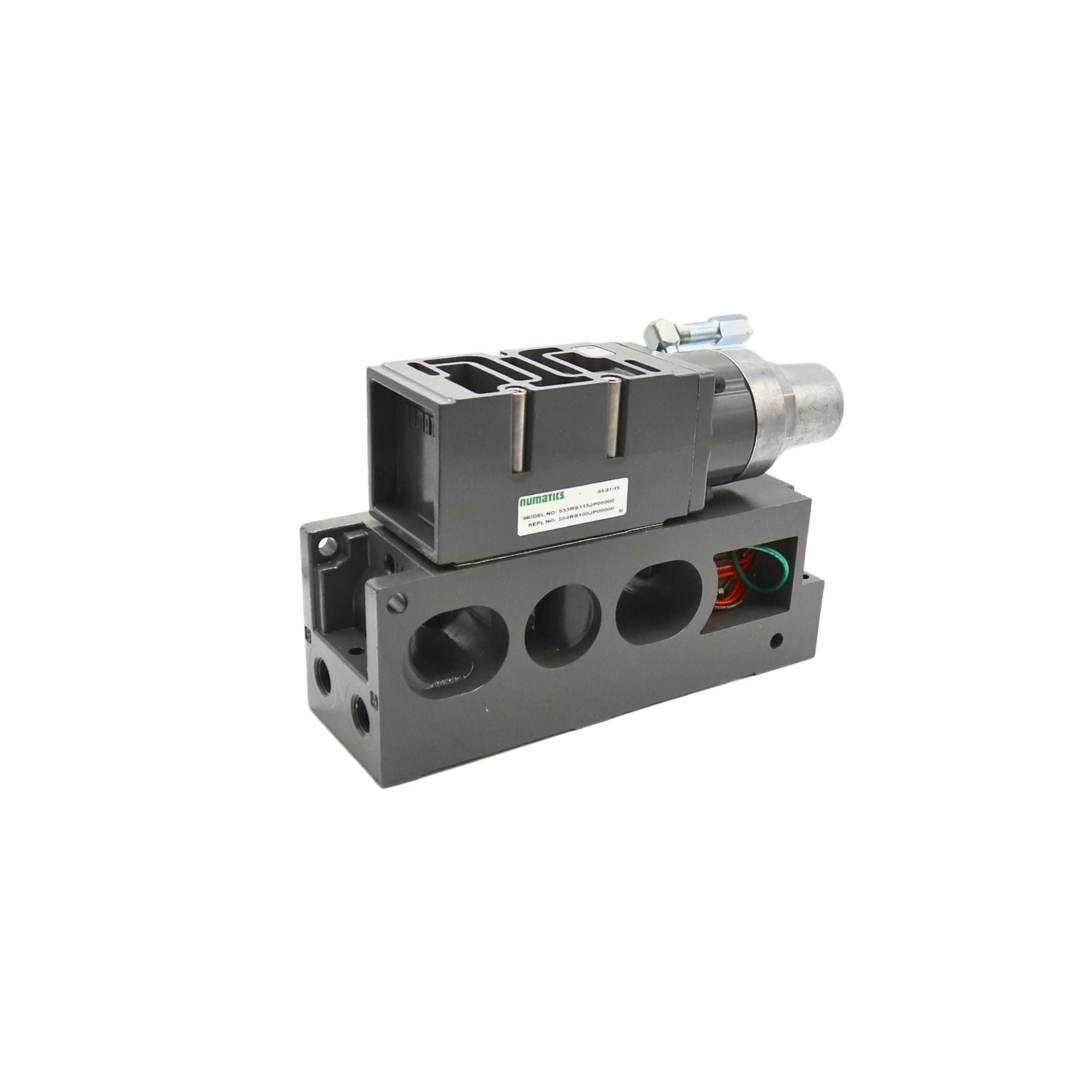

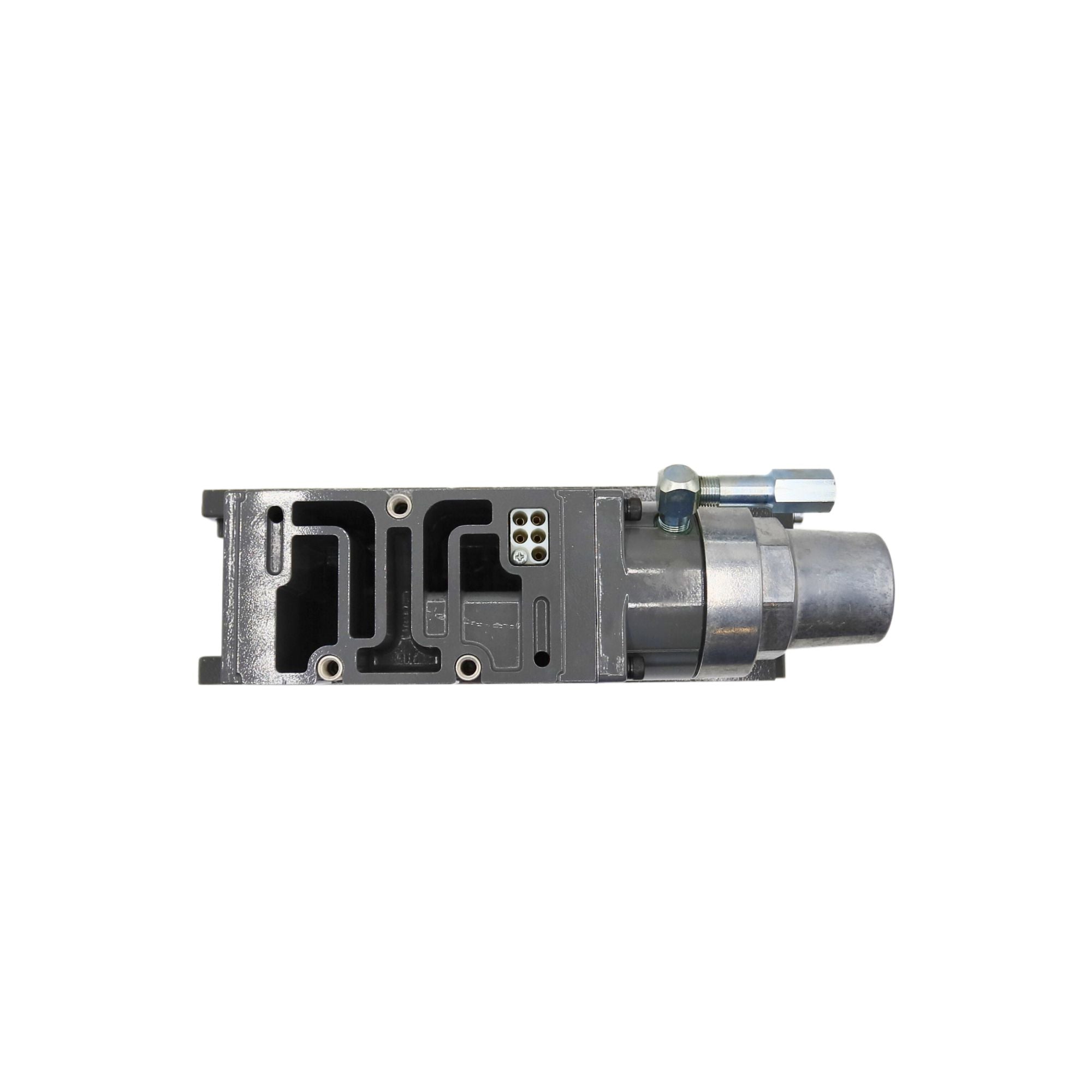

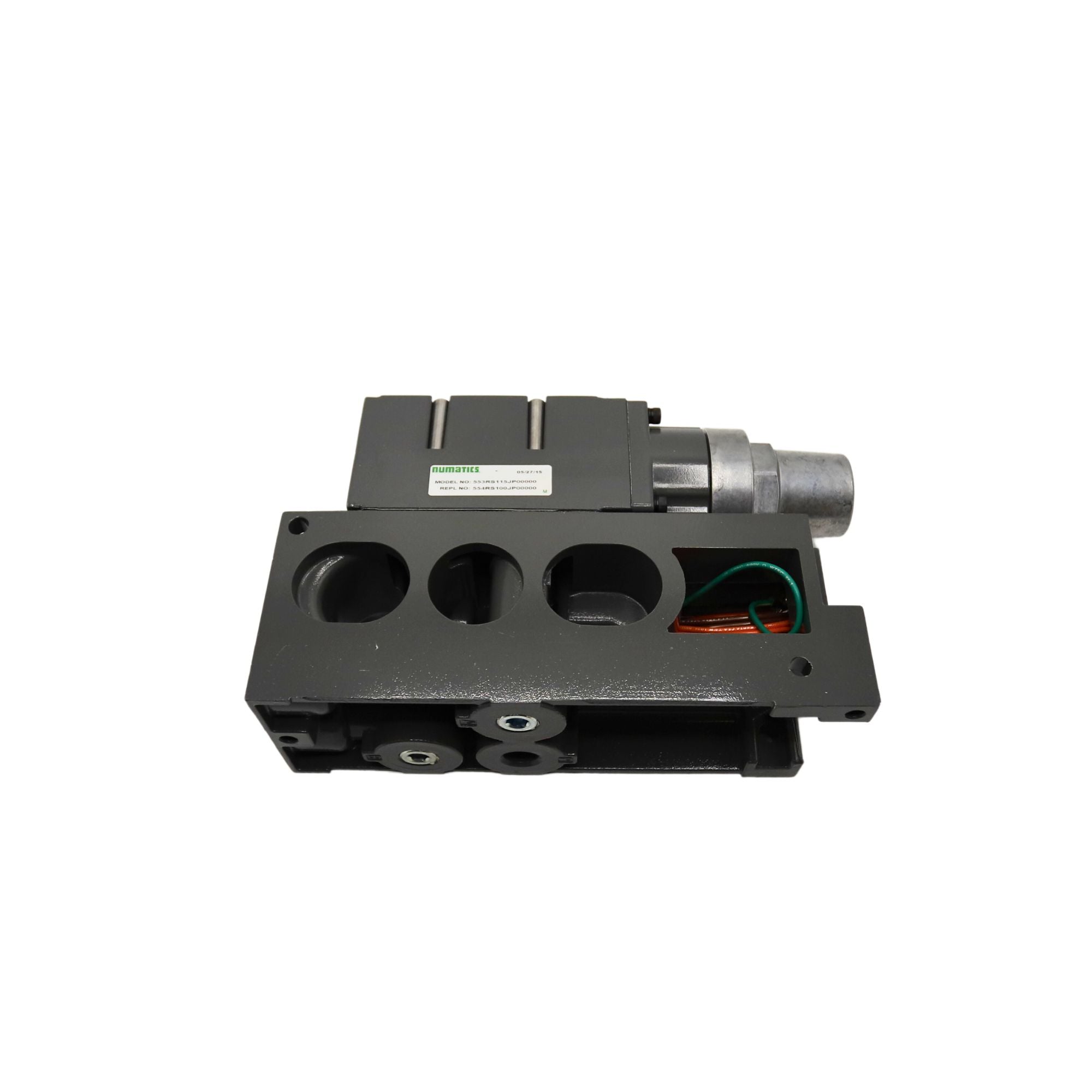

The Numatics/Aventics Mark 55 series valves have a plug-in base or manifold, a plug-in solenoid, and an optional plug-in speed control sandwich. The unit to base electrical plug permits instant unit replacement. Valves are direct solenoid actuated, 5 ported, 4-way, 2 or 3 position.
Numatics PA 55 and SPA 55 series are heavy duty valves with high flow capacity in a multi-purpose design. Both valve lines may be mounted on a base or manifold. Optional plug-in sandwich speed controls and sandwich pressure regulators are available.
| Specifications | |
| Valve series | 553 |
| Port Size | 3/8" |
| Regulator Type | Single Pressure to Port 1 (P) |
| Pressure Range | 10-130PSIG (0.7-9 Bar) |
| Mounting | Manifold Block w/Side & Bottom Ports, Common Exhaust |
| Wiring Option | Plug-in Receptacle Assembly |
| Port Type | FNPT |
| Ports | 5 Ported, 2 & 3 position, 4-way, Spool & Sleeve |
| Flow Capacity | 185-255 SCFM @ 80PISG/ 3940-5417 NI/M @ 6 Bar |
| Operating Pressure Range | 28HG Vacuum To 150PISG/ Vacuum To 10 Bar |
| Pilot Pressure Range | 20-125PISG /2 position Detented 15-125PISG |
| Temperature Range | -10F To +115F (-23C To +46C)/ PA 55-10F-+150F |
