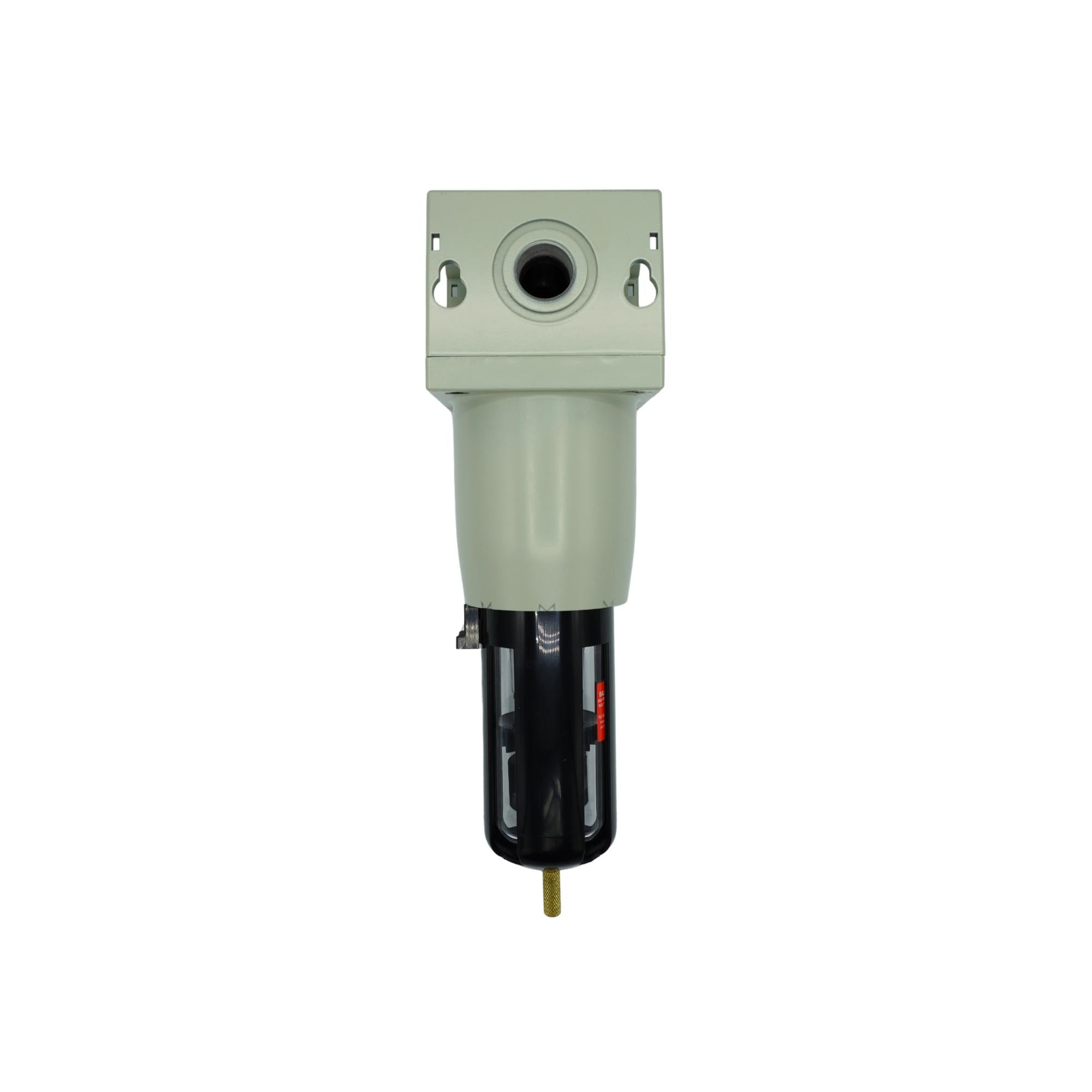

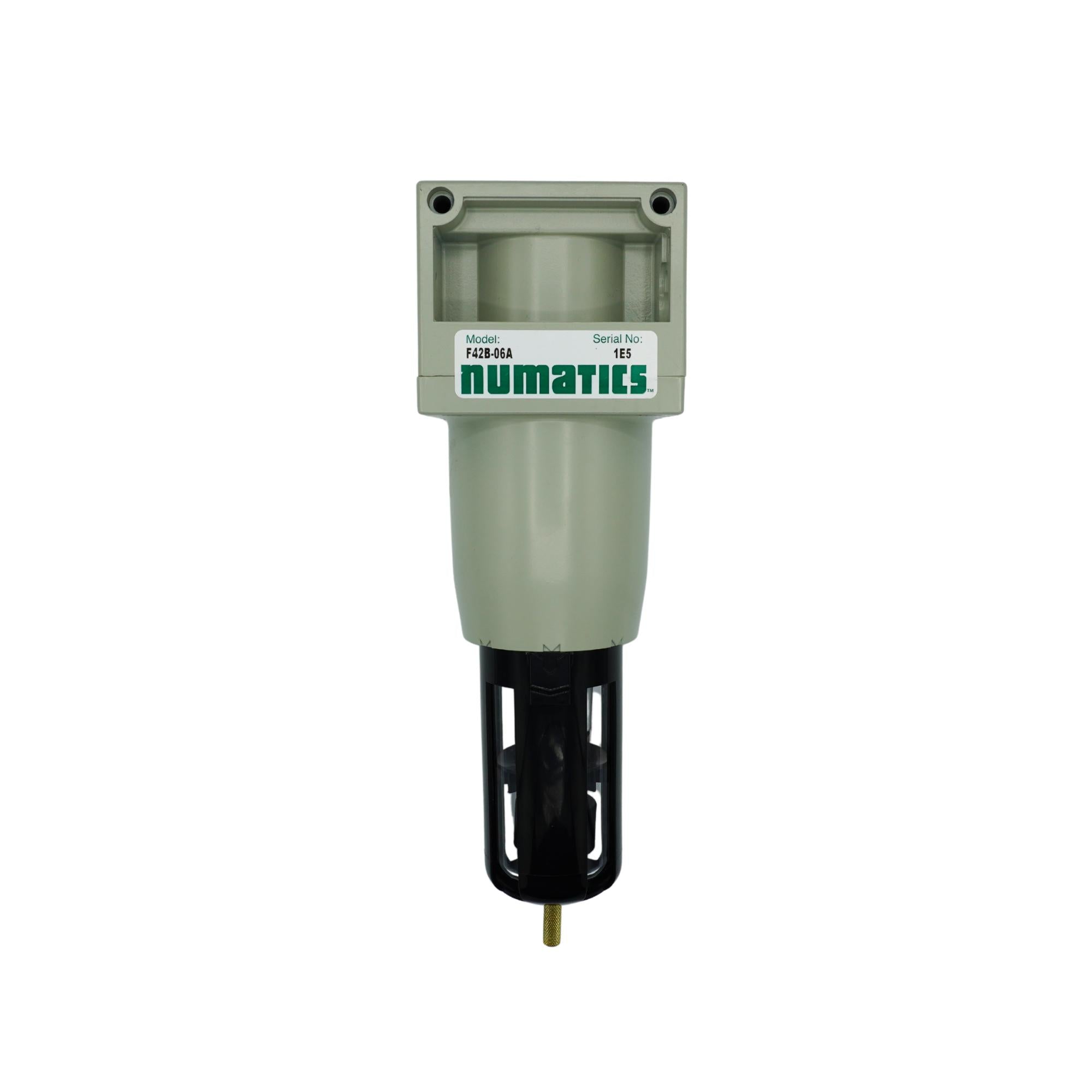

Numatics | Aventics Particulate Filter 3/4 in NPT 270SCFM | F42B-06A

Name: Numatics | Aventics Particulate Filter 3/4 in NPT 270SCFM | F42B-06A
Brand: NUMATICS, INC
SKU: F42B-06A
Price: 150.67 USD
Availability: InStock

Mfr. Part #: F42B-06A

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

Pickup Available at Livermore

ID #: 139614

Description
Features
Specifications
Resources

High-flow 3/4" NPTF air filter with 5-micron element, 270 SCFM capacity, and optional auto drain for efficient pneumatic system protection.
Key Features:
• FlexiBlok 42 Series particulate filter
• 5 micron filtration element
• 8.5 oz (≈250 ml) bowl with optional auto drain
• ¾″ NPTF inlet/outlet ports
• High flow rate, approx. 270 SCFM (≈7620 L/min)
• Rated pressure up to 150 PSIG (10 bar)
• Operating temperature: +4 °C to +50 °C (40 °F to 120 °F)

Common Applications:
• Efficient air purification in industrial automation systems
• Protecting downstream actuators, valves, and pneumatic components
• OEM machinery and pneumatic panels requiring high-flow filtration
• Packaging, manufacturing, and general-purpose pneumatic systems

Specification	Value
Model	F42B-06A
Series	FlexiBlok 42
Filtration Element	5 micron
Bowl Capacity	8.5 oz (≈250 ml)
Drain Type	Optional Auto Drain
Port Size	3/4" NPTF
Flow Rate	270 SCFM (≈7620 L/min)
Maximum Pressure	150 PSIG (10 bar)
Operating Temperature	+4°C to +50°C (40°F to 120°F)
