INWB103-516-022

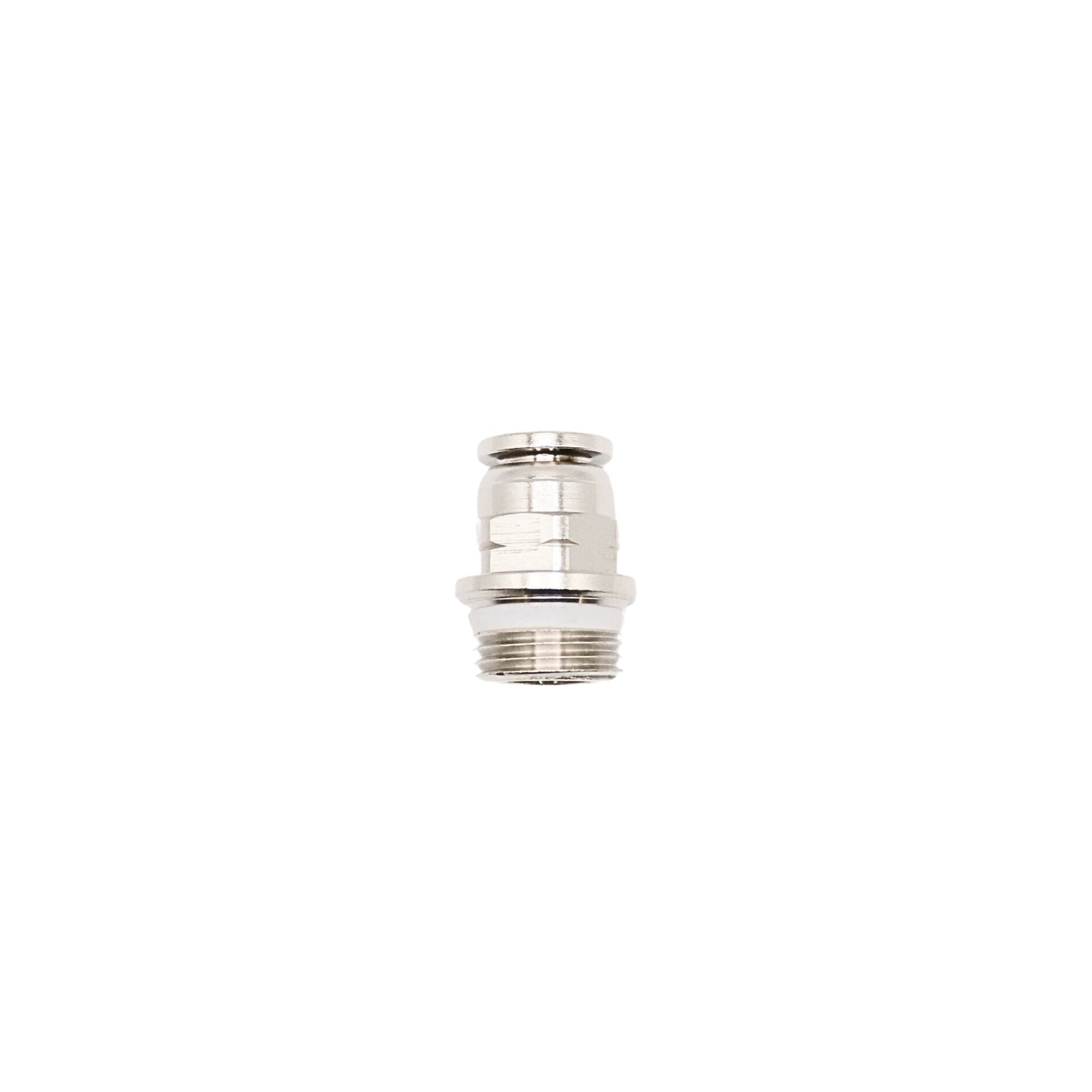

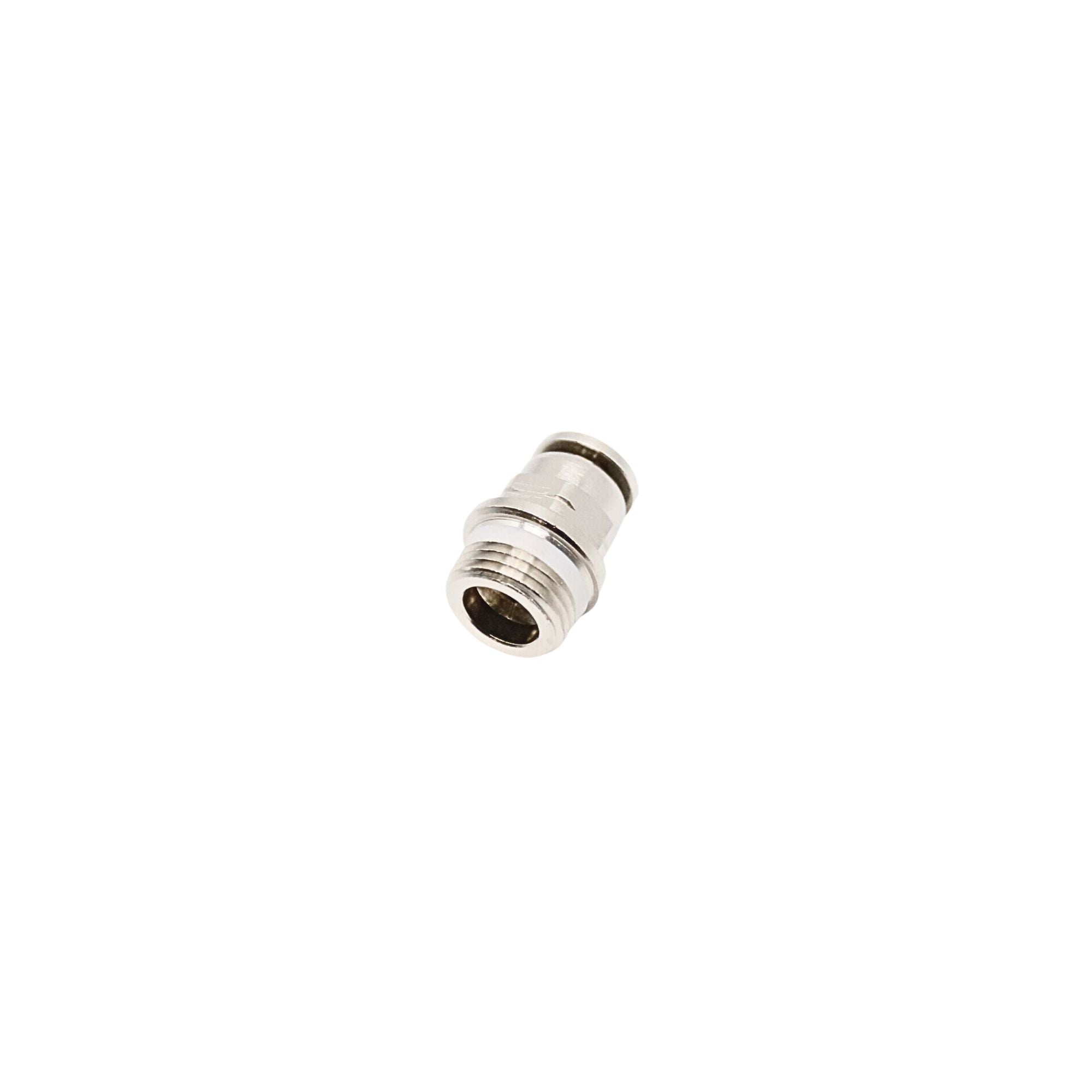

Aventics-NP Brass Push-in fitting 5/16" Tube X 3/8"NPT Universal male
| Specifications | |||
| Tube Size | 5/16" (8mm) | ||
| Thread-Type | 3/8" Universal | ||
| Style | Standard | ||
|
Brass Release Ring
|
INWB103
|
Tube Diameter
|
Thread
|
|
INWB
|
103-108-020
|
1/8"
|
1/8"
|
|
INWB
|
103-108-021
|
1/8"
|
1/4"
|
|
INWB
|
103-532-020
|
5/32"
|
1/8"
|
|
INWB
|
103-532-021
|
5/32"
|
1/4"
|
|
INWB
|
103-104-020
|
1/4"
|
1/8"
|
|
INWB
|
103-104-021
|
1/4"
|
1/4"
|
|
INWB
|
103-104-022
|
1/4"
|
3/8"
|
|
INWB
|
103-516-020
|
5/16"
|
1/8"
|
|
INWB
|
103-516-021
|
5/16"
|
1/4"
|
|
INWB
|
103-516-022
|
5/16"
|
3/8"
|
|
INWB
|
103-308-020
|
3/8"
|
1/8"
|
|
INWB
|
103-308-021
|
3/8"
|
1/4"
|
|
INWB
|
103-308-022
|
3/8"
|
3/8"
|
|
INWB
|
103-308-023
|
3/8"
|
1/2"
|
|
INWB
|
103-102-021
|
1/2"
|
1/4"
|
|
INWB
|
103-102-022
|
1/2"
|
3/8"
|
|
INWB
|
103-102-023
|
1/2"
|
1/2"
|

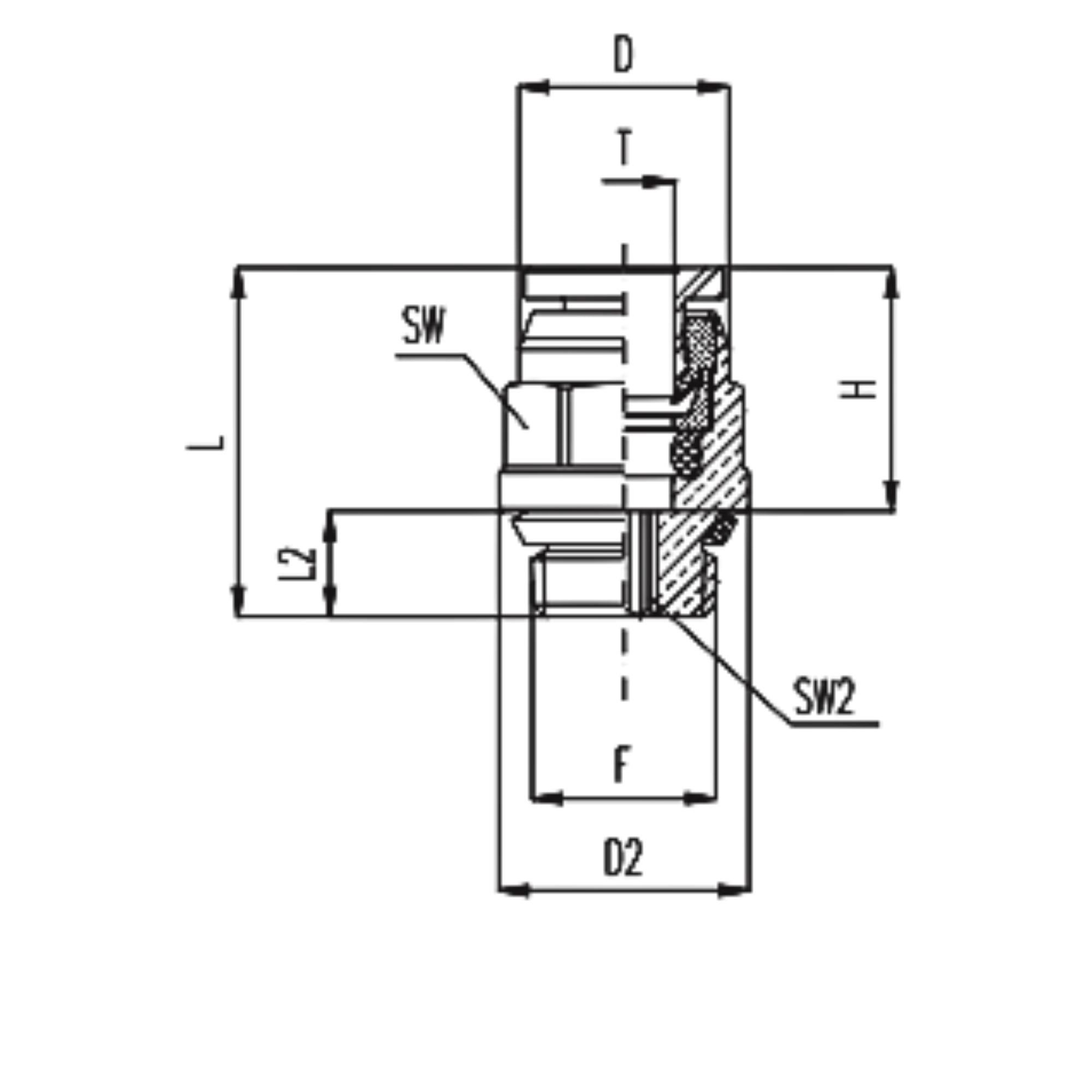

| D | D2 | L | L2 | H | SW | SW2 |
| 0.37 | 0.472 | 0.709 | 0.217 | 0.472 | 0.375 | 0.063 |
| 0.37 | 0.591 | 0.787 | 0.303 | 0.472 | 0.375 | 0.063 |
| 0.39 | 0.512 | 0.709 | 0.217 | 0.492 | 0.438 | 0.063 |
| 0.39 | 0.591 | 0.795 | 0.303 | 0.492 | 0.438 | 0.063 |
| 0.465 | 0.552 | 0.799 | 0.217 | 0.531 | 0.5 | 0.156 |
| 0.465 | 0.591 | 0.886 | 0.303 | 0.531 | 0.5 | 0.156 |
| 0.465 | 0.748 | 0.906 | 0.323 | 0.531 | 0.5 | 0.156 |
| 0.689 | 0.787 | 0.925 | 0.323 | 0.65 | 0.594 | 0.156 |
| 0.689 | 0.945 | 1.004 | 0.406 | 0.65 | 0.594 | 0.219 |
| 0.807 | 0.866 | 1.004 | 0.303 | 0.65 | 0.594 | 0.219 |
| 0.807 | 0.866 | 1.043 | 0.323 | 0.669 | 0.688 | 0.156 |
| 0.807 | 0.945 | 1.043 | 0.406 | 0.669 | 0.688 | 0.219 |
| 0.807 | 0.866 | 1.071 | 0.323 | 0.669 | 0.688 | 0.25 |
| 0.807 | 0.945 | 1.161 | 0.406 | 0.669 | 0.688 | 0.25 |
| 0.807 | 0.945 | 1.142 | 0.406 | 0.728 | 0.813 | 0.25 |
| 0.807 | 0.866 | 1.181 | 0.323 | 0.728 | 0.813 | 0.25 |
| 0.807 | 0.945 | 1.22 | 0.406 | 0.728 | 0.813 | 0.375 |
ID #: 179380
