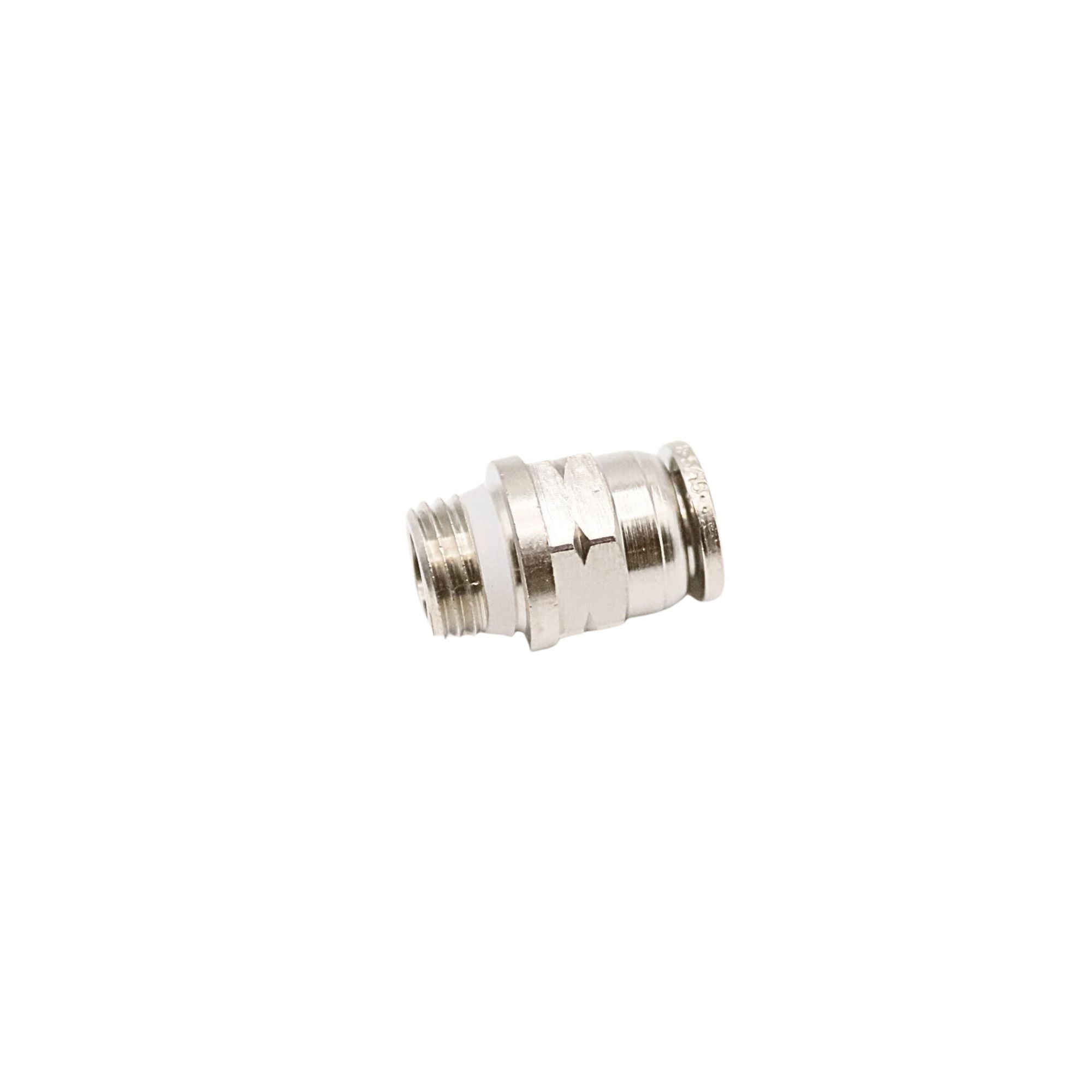

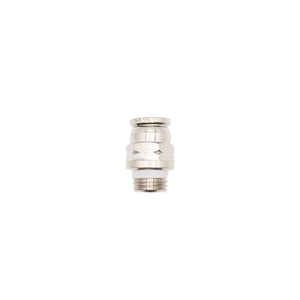

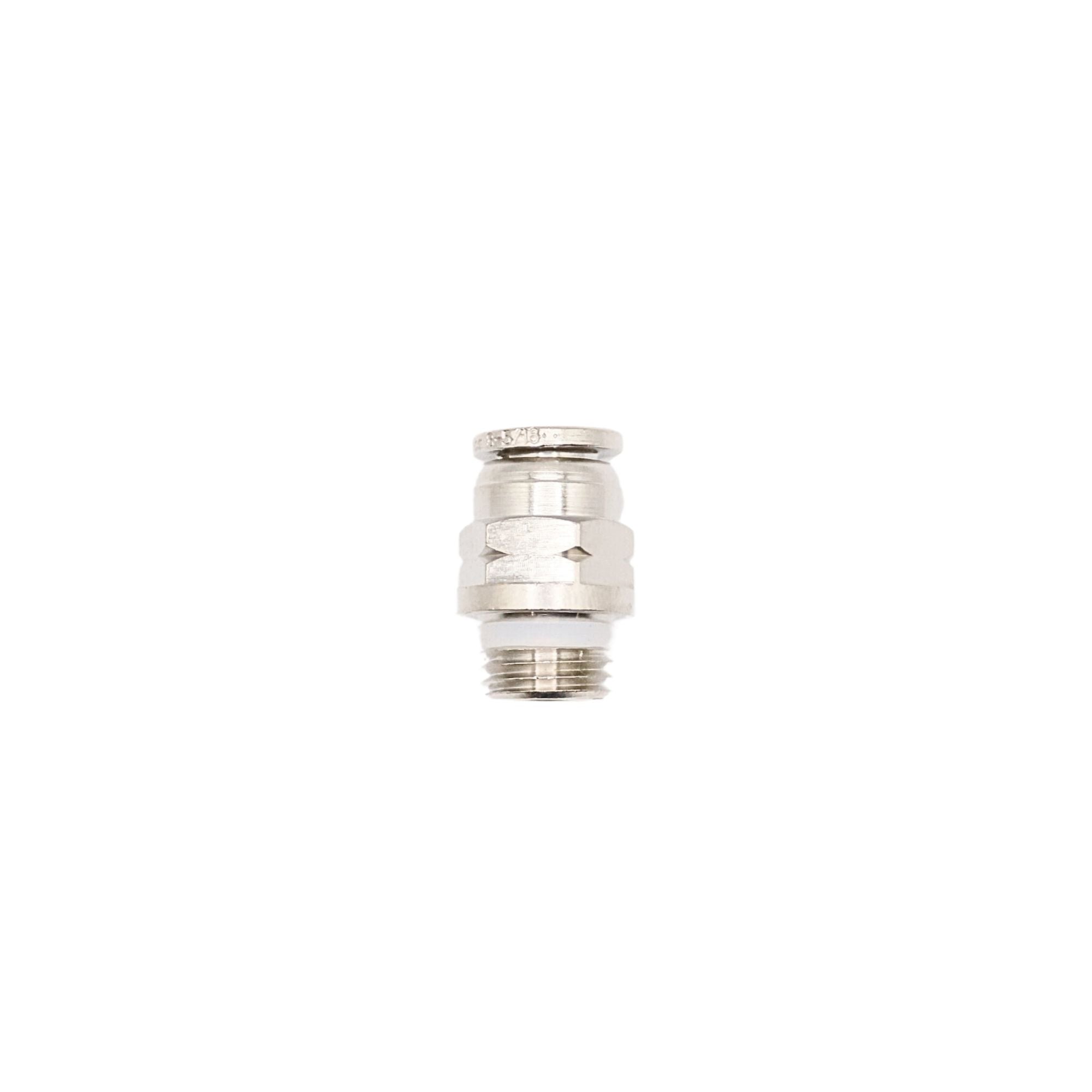

Aventics-NP Brass Push-in fitting 5/16" Tube X 1/4"NPT Universal male used on numatics-aventics product line

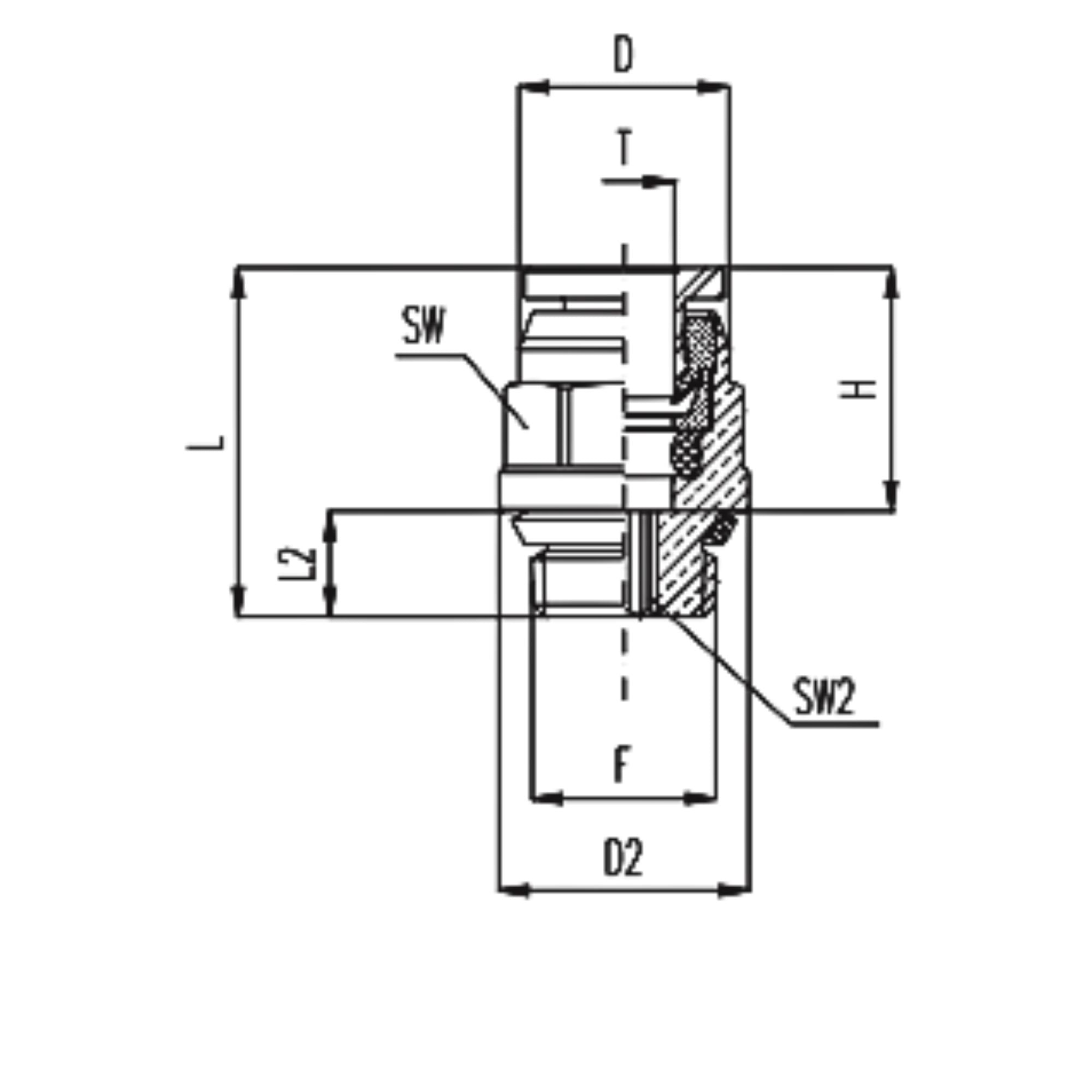

chart showing (A+B+C Dimensions) of Aventics | NP Brass Push-in fitting 5/16" Tube X 1/4"NPT Universal male used on Numatics-Aventics product line

Numatics | Aventics NP Brass Push-in fitting 5/16 in Tube X 1/4 in MNPT | INWB103-516-021

Name: Numatics | Aventics NP Brass Push-in fitting 5/16 in Tube X 1/4 in MNPT | INWB103-516-021
Brand: AVENTICS CORPORATION
SKU: INWB103-516-021
Price: 3.83 USD
Availability: InStock

$3.83

Mfr. Part #: INWB103-516-021

Pickup Available at Livermore

ID #: 179379

Description
Features
Specifications
Resources

Aventics-NP Brass Push-in fitting 5/16" Tube X 1/4"NPT Universal male

Specifications
Tube Size		5/16" (8mm)
Thread-Type		1/4" Universal
Style		Standard

Brass Release Ring	INWB103	Tube Diameter	Thread
INWB	103-108-020	1/8"	1/8"
INWB	103-108-021	1/8"	1/4"
INWB	103-532-020	5/32"	1/8"
INWB	103-532-021	5/32"	1/4"
INWB	103-104-020	1/4"	1/8"
INWB	103-104-021	1/4"	1/4"
INWB	103-104-022	1/4"	3/8"
INWB	103-516-020	5/16"	1/8"
INWB	103-516-021	5/16"	1/4"
INWB	103-516-022	5/16"	3/8"
INWB	103-308-020	3/8"	1/8"
INWB	103-308-021	3/8"	1/4"
INWB	103-308-022	3/8"	3/8"
INWB	103-308-023	3/8"	1/2"
INWB	103-102-021	1/2"	1/4"
INWB	103-102-022	1/2"	3/8"
INWB	103-102-023	1/2"	1/2"

D	D2	L	L2	H	SW	SW2
0.37	0.472	0.709	0.217	0.472	0.375	0.063
0.37	0.591	0.787	0.303	0.472	0.375	0.063
0.39	0.512	0.709	0.217	0.492	0.438	0.063
0.39	0.591	0.795	0.303	0.492	0.438	0.063
0.465	0.552	0.799	0.217	0.531	0.5	0.156
0.465	0.591	0.886	0.303	0.531	0.5	0.156
0.465	0.748	0.906	0.323	0.531	0.5	0.156
0.689	0.787	0.925	0.323	0.65	0.594	0.156
0.689	0.945	1.004	0.406	0.65	0.594	0.219
0.807	0.866	1.004	0.303	0.65	0.594	0.219
0.807	0.866	1.043	0.323	0.669	0.688	0.156
0.807	0.945	1.043	0.406	0.669	0.688	0.219
0.807	0.866	1.071	0.323	0.669	0.688	0.25
0.807	0.945	1.161	0.406	0.669	0.688	0.25
0.807	0.945	1.142	0.406	0.728	0.813	0.25
0.807	0.866	1.181	0.323	0.728	0.813	0.25
0.807	0.945	1.22	0.406	0.728	0.813	0.375
