Mfr. Part #: NWB109-004-000
ID #: 139825

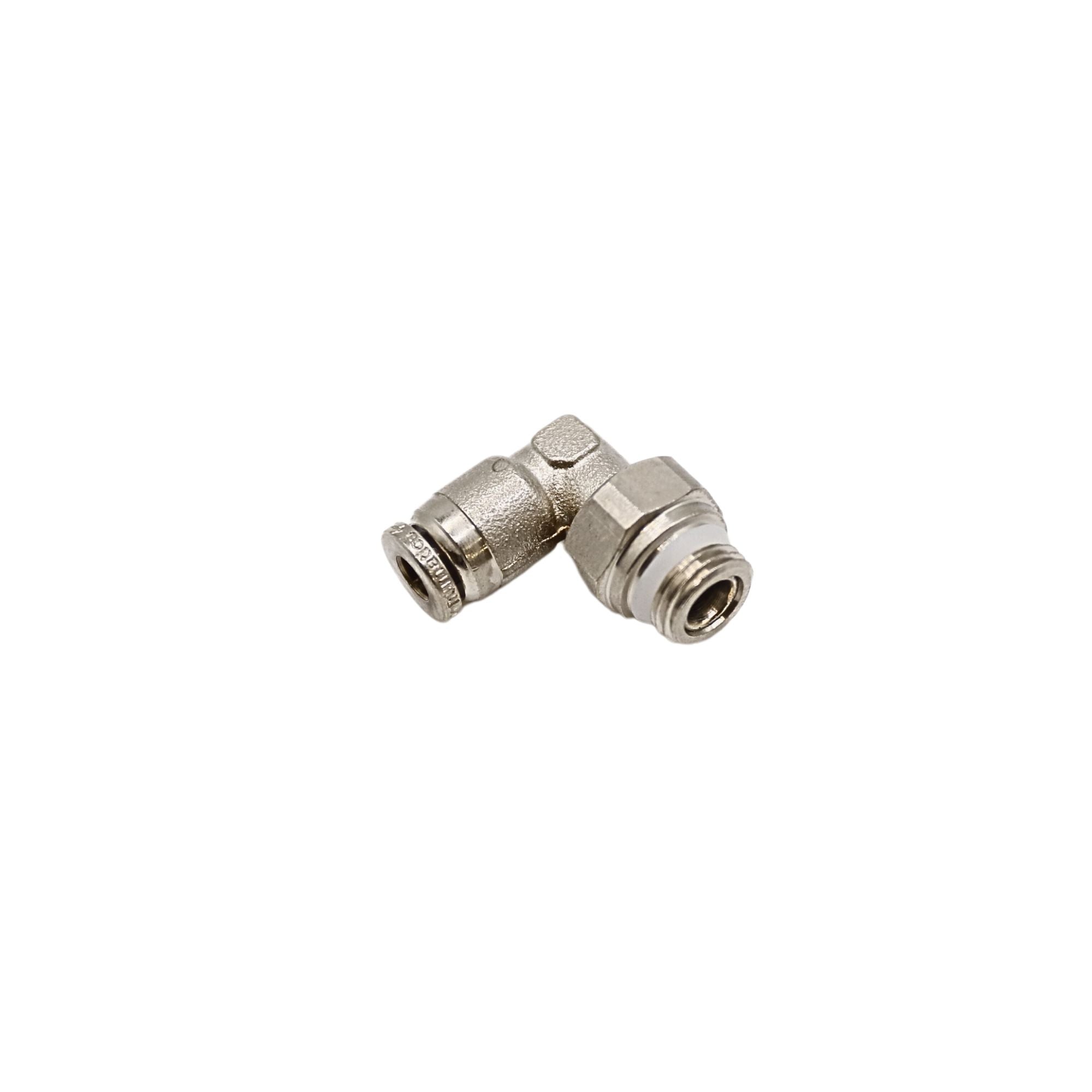

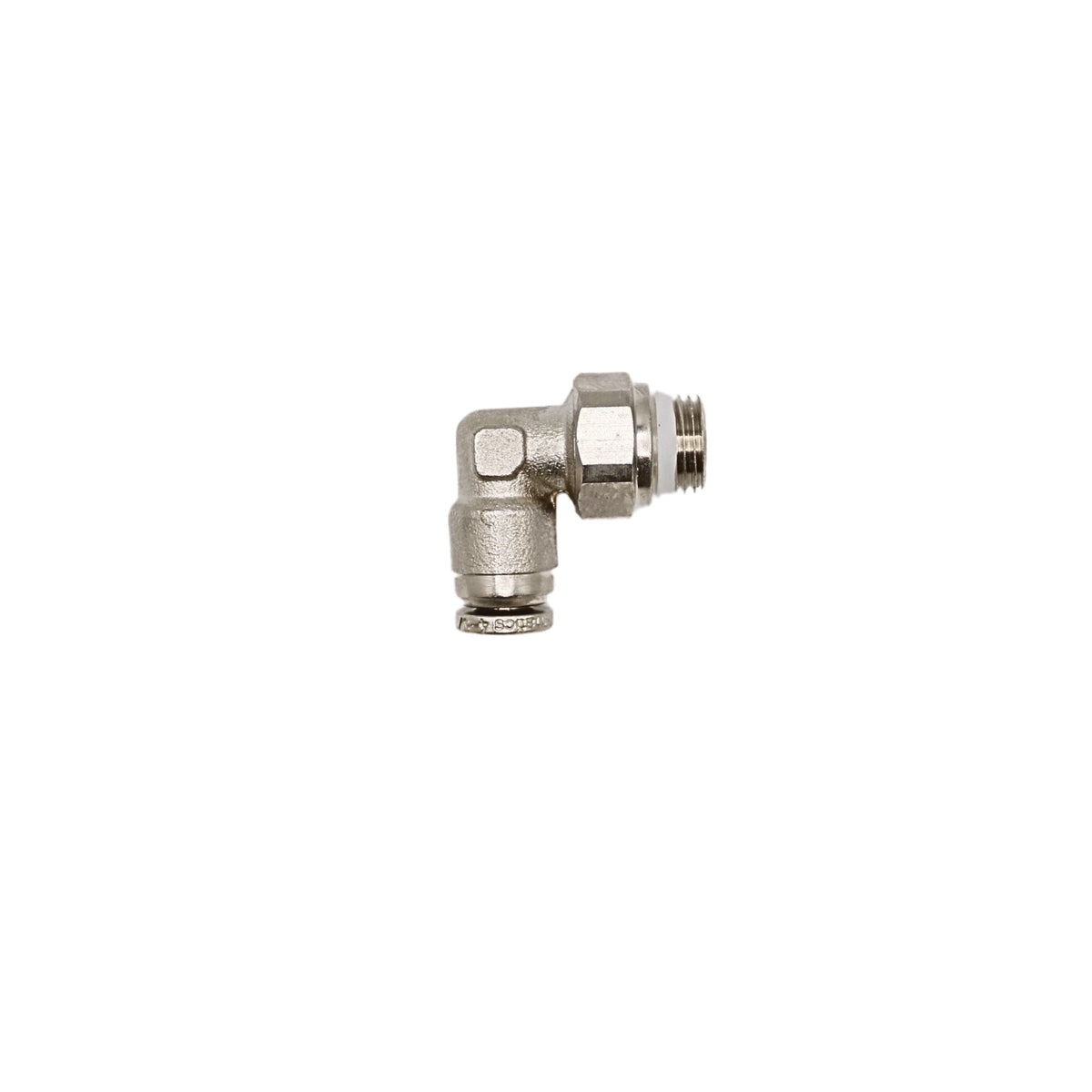

Aventics NP Brass Push-in fitting 4mm Tube 1/8 in MNPT Swivel elbow
| Specifications | |
| Tube Size | 4mm |
| Thread-Type | 1/8" |
| Style | Standard |
| NWB109 | Tube Diameter | Thread | |
| NWB109-004-000 | 4 | 1/8" | |
| NWB109-004-001 | 4 | 1/4" | |
| NWB109-005-000 | 5 | 1/8" | |
| NWB109-005-001 | 5 | 1/4" | |
| NWB109-006-000 | 6 | 1/8" | |
| NWB109-006-001 | 6 | 1/4" | |
| NWB109-008-000 | 8 | 1/8" | |
| NWB109-008-001 | 8 | 1/4" | |
| NWB109-008-002 | 8 | 3/8" | |
| NWB109-010-001 | 10 | 1/4" | |
| NWB109-010-002 | 10 | 3/8" | |
| NWB109-010-003 | 10 | 1/2" | |
| NWB109-012-001 | 12 | 1/4" | |
| NWB109-012-002 | 12 | 3/8" | |
| NWB109-012-003 | 12 | 1/2" | |
| D | D1 | L | L1 | L2 | H | CH. | CH.1 |
| 10 | 4 | 16.5 | 19.5 | 5.5 | 12.5 | 9 | 13 |
| 10 | 4 | 16.5 | 20 | 7.7 | 12.5 | 9 | 15 |
| 11 | 4 | 16.5 | 21 | 5.5 | 13 | 10 | 13 |
| 11 | 4 | 16.5 | 21.5 | 7.7 | 13 | 10 | 15 |
| 12 | 4 | 19 | 20.5 | 5.5 | 13.5 | 11 | 13 |
| 12 | 4 | 19 | 21 | 7.7 | 13.5 | 11 | 15 |
| 15 | 4 | 23.5 | 22.5 | 5.5 | 16 | 14 | 13 |
| 15 | 6 | 23.5 | 23 | 7.7 | 16 | 14 | 15 |
| 15 | 8 | 23.5 | 25.5 | 8.2 | 16 | 14 | 19 |
| 17.5 | 6 | 26.5 | 23.7 | 7.7 | 17 | 16 | 15 |
| 17.5 | 8 | 26.5 | 26.4 | 8.2 | 17 | 16 | 19 |
| 17.5 | 8 | 26.5 | 30.5 | 11.8 | 16.8 | 16 | 19 |
| 20.5 | 6 | 29.1 | 27.1 | 7.7 | 18.6 | 17 | 15 |
| 20.5 | 8 | 29.1 | 28.5 | 8.2 | 18.6 | 17 | 19 |
| 20.5 | 8 | 29.1 | 32.5 | 8.2 | 17 | 15 | 19 |
