Mfr. Part #: INB103-308-021
ID #: 139645

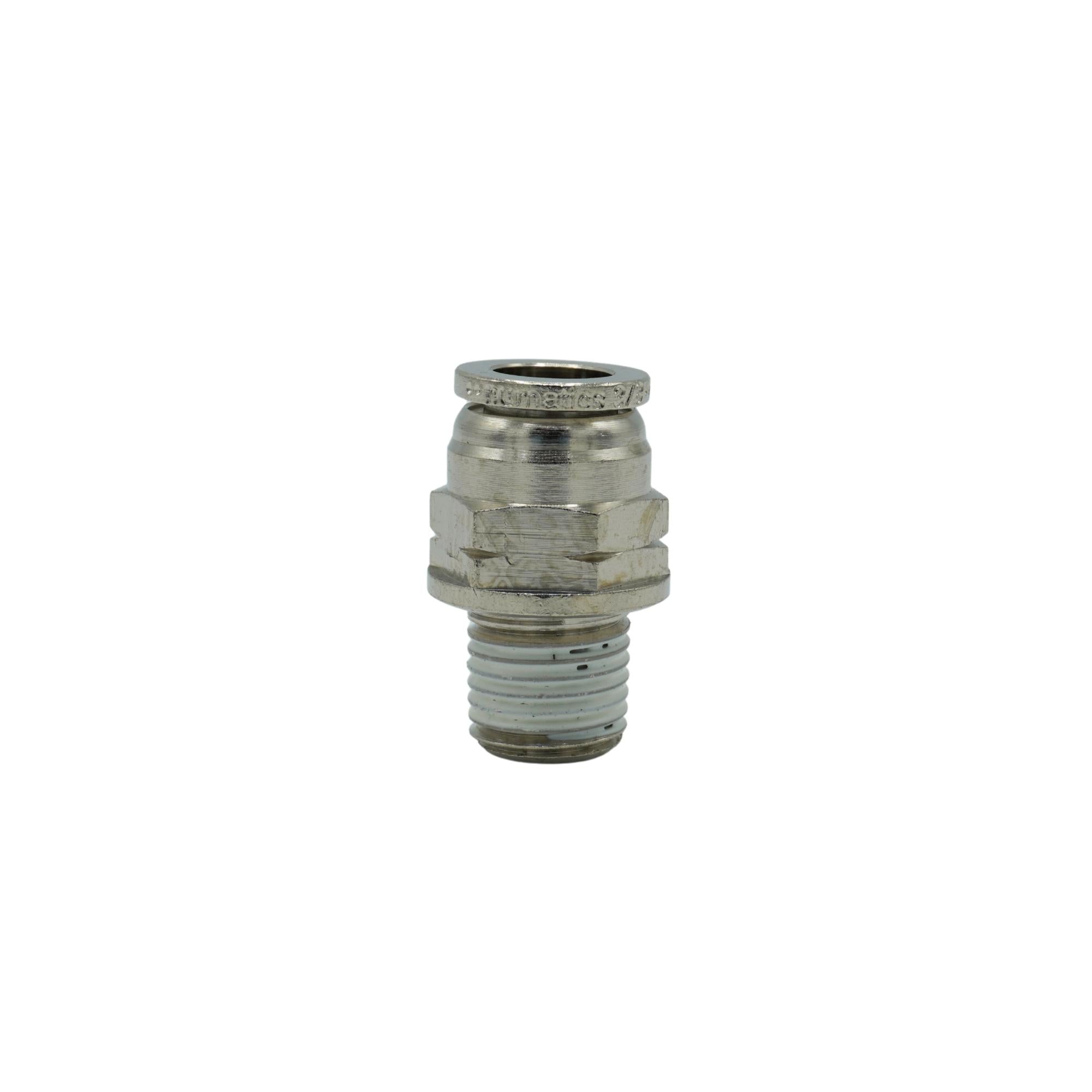

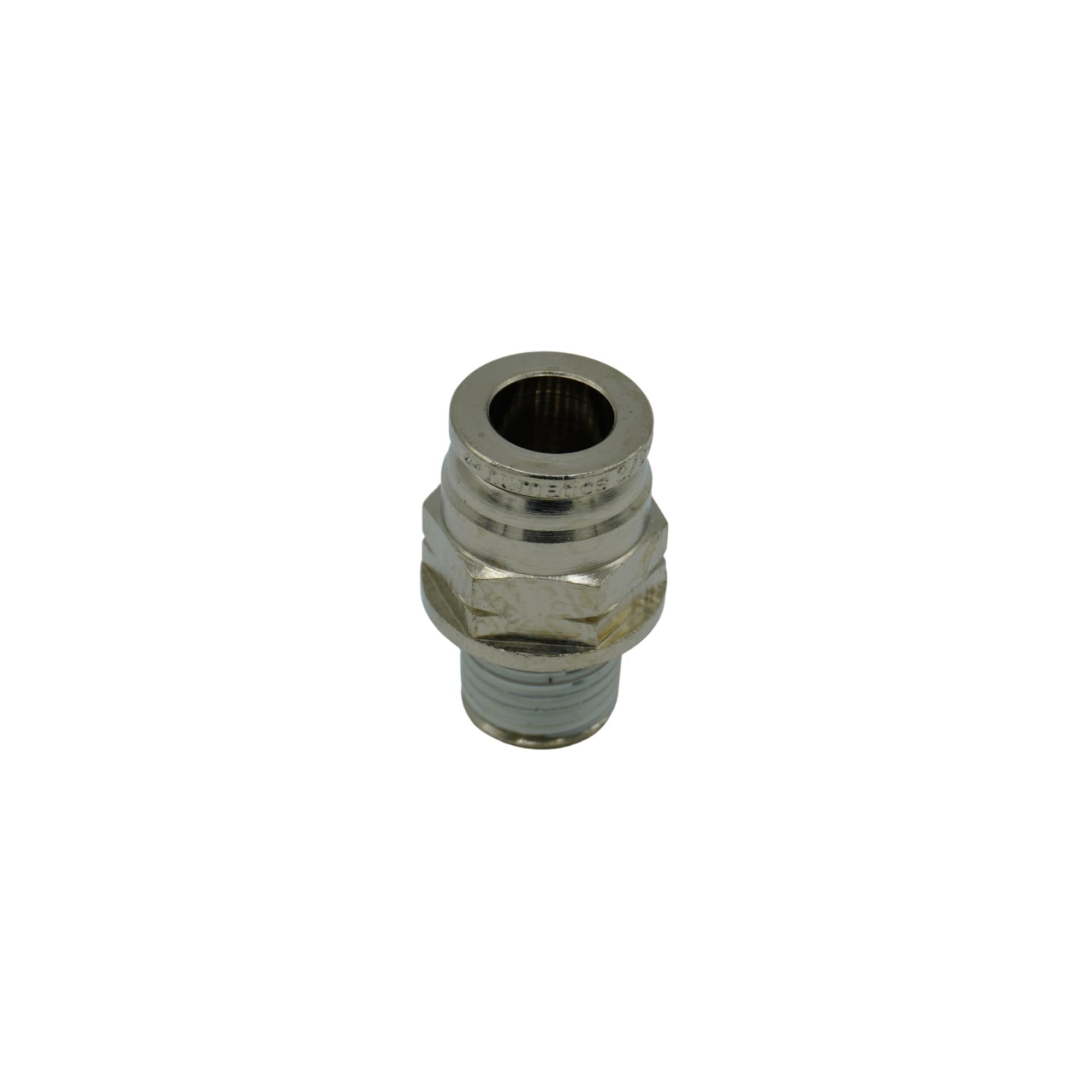

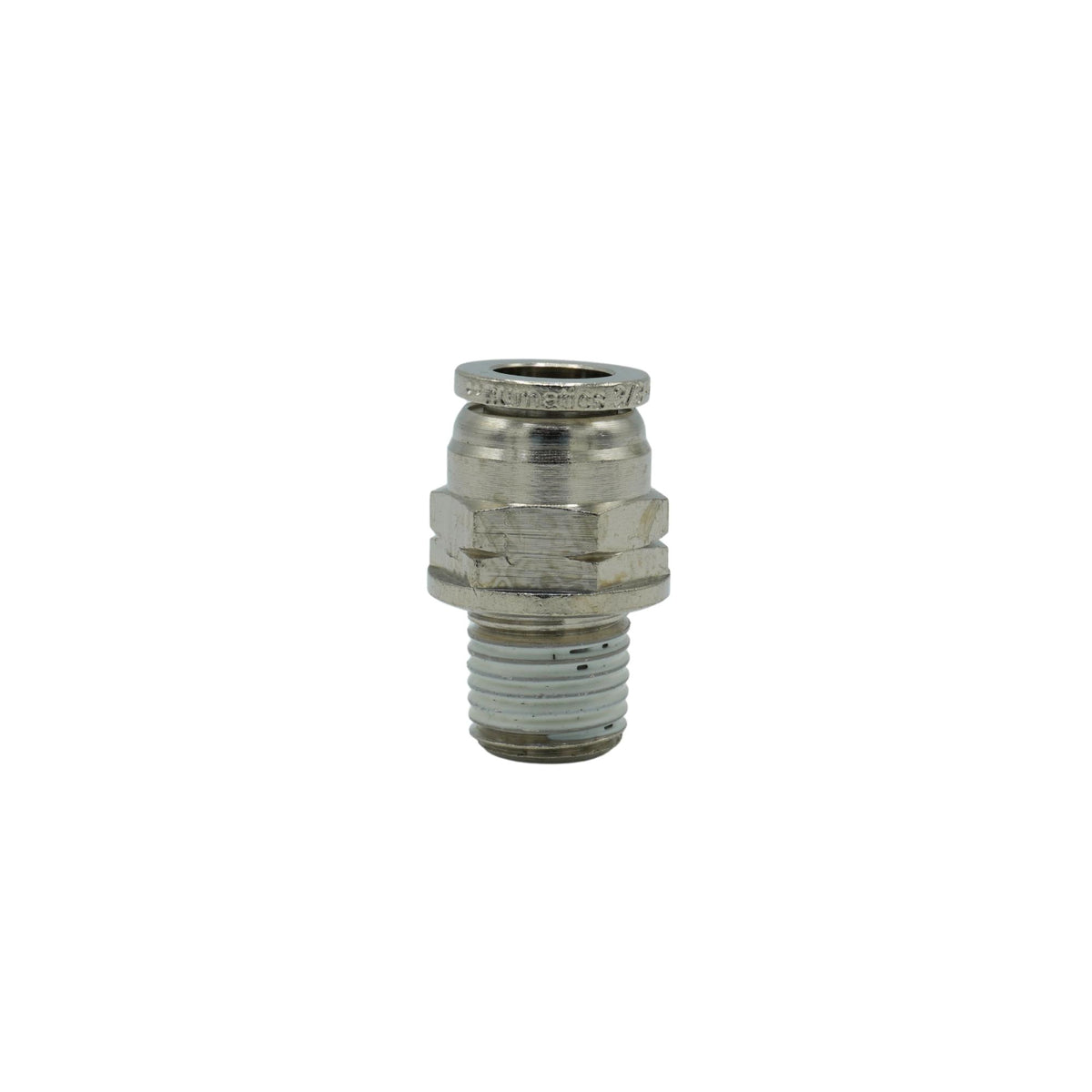

Aventics NP Brass Push-in fitting 3/8 in Tube 1/4 in MNPT
| Specifications | |||
| Tube Size | 3/8 in | ||
| Thread-Type | 1/4" NPT | ||
| Style | Standard | ||
| INB103 | Tube Diameter | Thread | |
| INB103-108-036 | 1/8" | 10/32 UNF | |
| INB103-108-020 | 1/8" | 1/8 NPTF | |
| INB103-108-021 | 1/8" | 1/4 NPTF | |
| INB103-532-036 | 5/32" | 10/32 UNF | |
| INB103-532-020 | 5/32" | 1/8 NPTF | |
| INB103-532-021 | 5/32" | 1/4 NPTF | |
| INB103-104-036 | 1/4" | 10/32 UNF | |
| INB103-104-020 | 1/4" | 1/8 NPTF | |
| INB103-104-021 | 1/4" | 1/4 NPTF | |
| INB103-104-022 | 1/4" | 3/8 NPTF | |
| INB103-516-020 | 5/16" | 1/8 NPTF | |
| INB103-516-021 | 5/16" | 1/4 NPTF | |
| INB103-516-022 | 5/16" | 3/8 NPTF | |
| INB103-308-020 | 3/8" | 1/8 NPTF | |
| INB103-308-021 | 3/8" | 1/4 NPTF | |
| INB103-308-022 | 3/8" | 3/8 NPTF | |
| INB103-308-023 | 3/8" | 1/2 NPTF | |
| INB103-102-021 | 1/2" | 1/4 NPTF | |
| INB103-102-022 | 1/2" | 3/8 NPTF | |
| INB103-102-023 | 1/2" | 1/2 NPTF | |
| D1 | D2 | L | L1 | H | SW | SW1 |
| 0.37 | 0.37 | 0.697 | 0.165 | 0.472 | 5/64" | |
| 0.37 | 0.472 | 0.854 | 0.374 | 0.472 | 3/8" | 5/64" |
| 0.37 | 0.551 | 0.992 | 0.512 | 0.472 | 3/8" | 5/64" |
| 0.394 | 0.394 | 0.717 | 0.165 | 0.492 | 5/64" | |
| 0.394 | 0.512 | 0.866 | 0.374 | 0.492 | 7/16" | 5/64" |
| 0.394 | 0.551 | 1.004 | 0.512 | 0.492 | 7/16" | 5/64" |
| 0.472 | 0.472 | 0.772 | 0.165 | 0.531 | 5/64" | |
| 0.472 | 0.551 | 0.886 | 0.374 | 0.531 | 1/2" | 5/32" |
| 0.472 | 0.551 | 1.024 | 0.512 | 0.531 | 1/2" | 5/32" |
| 0.472 | 0.709 | 1.024 | 0.512 | 0.531 | 1/2" | 5/32" |
| 0.591 | 0.669 | 1.055 | 0.374 | 0.63 | 19/32" | 7/32" |
| 0.591 | 0.669 | 1.173 | 0.512 | 0.63 | 19/32" | 7/32" |
| 0.591 | 0.709 | 1.173 | 0.512 | 0.63 | 19/32" | 7/32" |
| 0.669 | 0.787 | 1.114 | 0.374 | 0.669 | 11/16" | 7/32" |
| 0.669 | 0.787 | 1.232 | 0.512 | 0.669 | 11/16" | 1/4" |
| 0.669 | 0.787 | 1.232 | 0.512 | 0.669 | 11/16" | 1/4" |
| 0.669 | 0.866 | 1.39 | 0.709 | 0.669 | 11/16" | 1/4" |
| 0.827 | 0.906 | 1.339 | 0.512 | 0.748 | 13/16" | 1/4" |
| 0.827 | 0.906 | 1.339 | 0.512 | 0.748 | 13/16" | 3/8" |
| 0.827 | 0.906 | 1.496 | 0.709 | 0.748 | 13/16" | 3/8" |
