NWB103-012-003

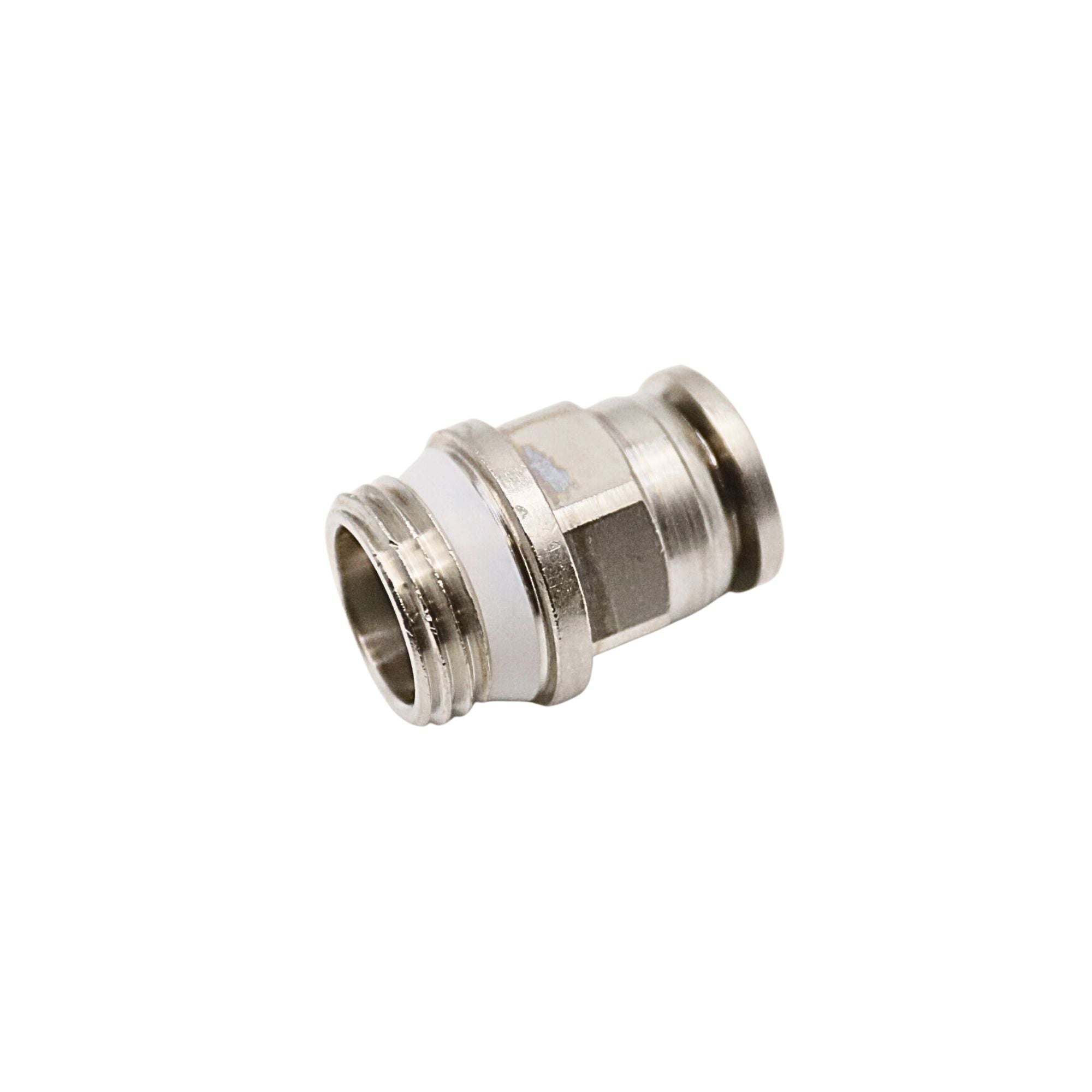

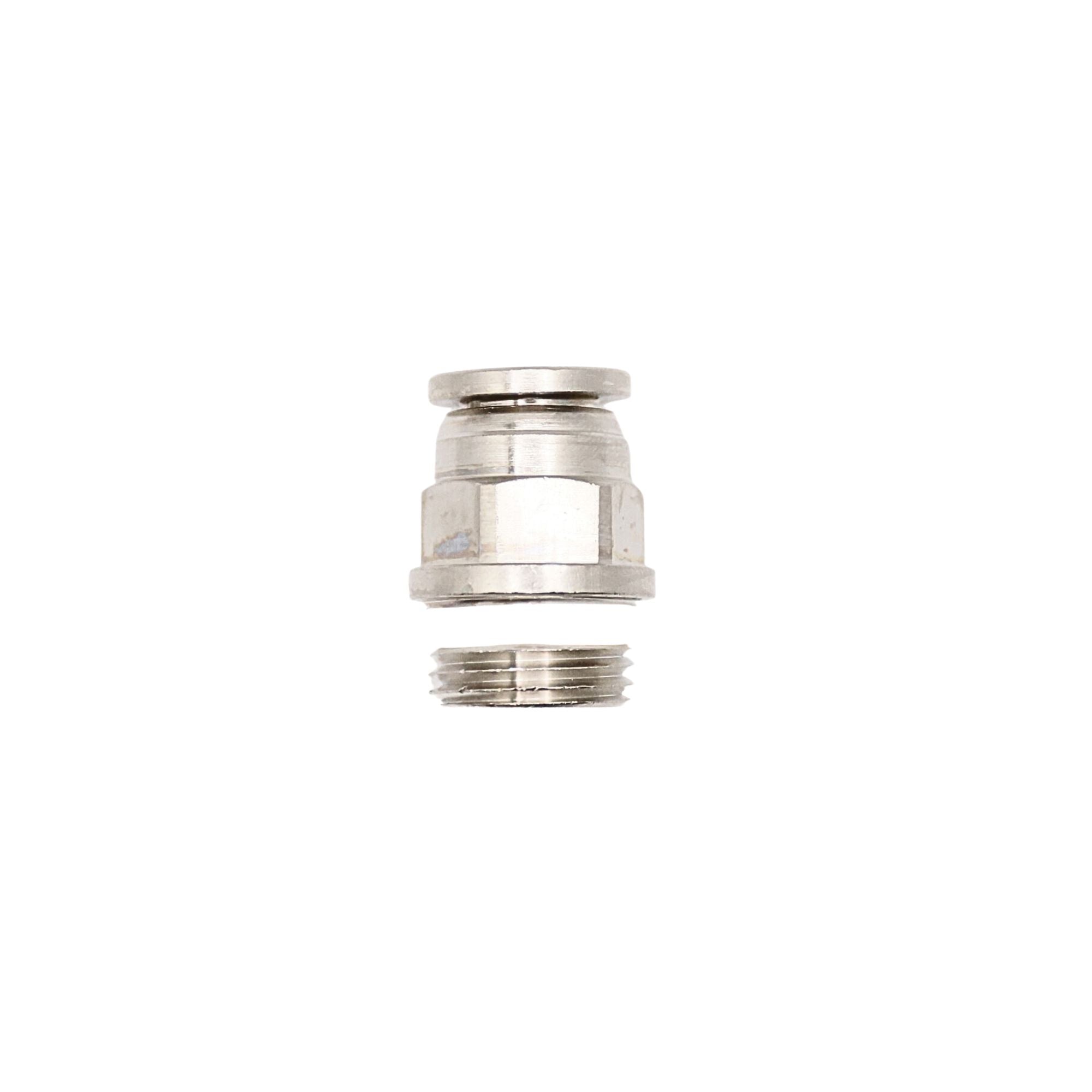

Aventics-NP Brass Push-in fitting 12mm Tube X 1/2"NPT Universal male
| Specifications | |||
| Tube Size | 12mm | ||
| Thread-Type | 1/2" Universal | ||
| Style | Standard | ||
| NWB103 | Tube Diameter | Thread |
| NWB103-004-000 | 4 | 1/8" |
| NWB103-004-001 | 4 | 1/4" |
| NWB103-005-000 | 5 | 1/8" |
| NWB103-005-001 | 5 | 1/4" |
| NWB103-006-000 | 6 | 1/8" |
| NWB103-006-001 | 6 | 1/4" |
| NWB103-008-000 | 8 | 1/8" |
| NWB103-008-001 | 8 | 1/4" |
| NWB103-008-002 | 8 | 3/8" |
| NWB103-010-001 | 10 | 1/4" |
| NWB103-010-002 | 10 | 3/8" |
| NWB103-010-003 | 10 | 1/2" |
| NWB103-012-001 | 12 | 1/4" |
| NWB103-012-002 | 12 | 3/8" |
| NWB103-012-003 | 12 | 1/2" |

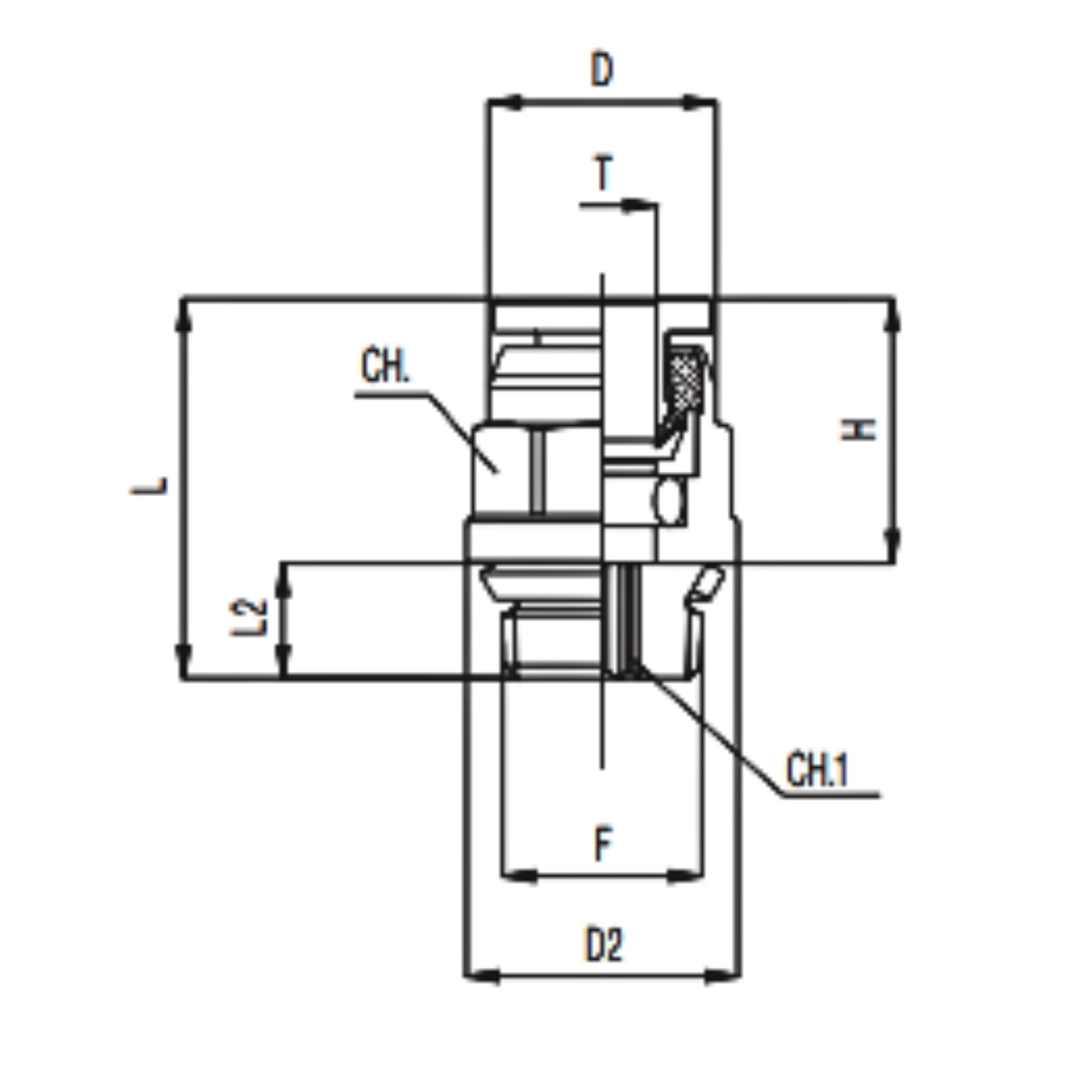

| D | D2 | L | L2 | H | CH. | CH.1 |
| 10 | 12 | 17.5 | 5.5 | 12.5 | 10 | 3 |
| 10 | 15 | 20.5 | 7.7 | 12.5 | 10 | 3 |
| 11 | 12 | 18.5 | 5.5 | 13 | 11 | 3 |
| 11 | 15 | 21 | 7.7 | 13 | 11 | 3 |
| 12 | 14 | 19 | 5.5 | 13.5 | 12 | 4 |
| 12 | 15 | 21 | 7.7 | 13.5 | 12 | 4 |
| 15 | 16 | 23.5 | 5.5 | 16 | 15 | 5 |
| 15 | 16 | 23.5 | 7.7 | 16 | 15 | 6 |
| 15 | 19 | 24.5 | 8.2 | 16 | 15 | 6 |
| 17.5 | 20 | 27 | 7.7 | 17 | 18 | 6 |
| 17.5 | 20 | 25 | 8.2 | 17 | 18 | 7 |
| 17.5 | 24 | 28.5 | 10.3 | 17 | 18 | 7 |
| 20.5 | 22 | 28 | 7.7 | 19 | 20 | 6 |
| 20.5 | 22 | 28.5 | 8.2 | 19 | 20 | 8 |
| 20.5 | 24 | 31 | 10.3 | 19 | 20 | 9 |
ID #: 179416
