Mfr. Part #: INB105-104-021
ID #: 139652

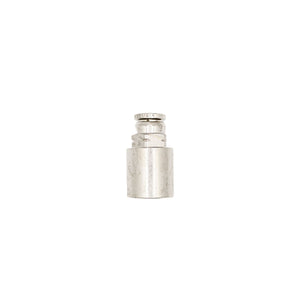

Aventics NP Brass Push-in fitting 1/4 in Tube 1/4 in FNPT
| Specifications | |||
| Tube Size | 1/4 in | ||
| Thread-Type | 1/4" NPT | ||
| Style | Standard | ||
| INB105 | Tube Diameter | Thread | |
| INB105-108-020 | 1/8" | 1/8" | |
| INB105-108-021 | 1/8" | 1/4" | |
| INB105-532-020 | 5/32" | 1/8" | |
| INB105-532-021 | 5/32" | 1/4" | |
| INB105-104-020 | 1/4" | 1/8" | |
| INB105-104-021 | 1/4" | 1/4" | |
| INB105-516-020 | 5/16" | 1/8" | |
| INB105-516-021 | 5/16" | 1/4" | |
| INB105-308-021 | 3/8" | 1/4" | |
| INB105-308-022 | 3/8" | 3/8" | |
| D | D1 | D2 | L | L1 | H | SW |
| 0.37 | 0.094 | 0.551 | 0.945 | 0.335 | 0.472 | 3/8" |
| 0.37 | 0.094 | 0.669 | 1.102 | 0.472 | 0.472 | 3/8" |
| 0.394 | 0.118 | 0.551 | 0.965 | 0.335 | 0.492 | 7/16" |
| 0.394 | 0.118 | 0.669 | 1.122 | 0.472 | 0.492 | 7/16" |
| 0.472 | 0.157 | 0.551 | 0.965 | 0.335 | 0.531 | 1/2" |
| 0.472 | 0.157 | 0.669 | 1.142 | 0.472 | 0.531 | 1/2" |
| 0.591 | 0.236 | 0.669 | 1.055 | 0.335 | 0.63 | 19/32" |
| 0.591 | 0.236 | 0.669 | 1.213 | 0.472 | 0.63 | 19/32" |
| 0.669 | 0.276 | 0.866 | 1.248 | 0.472 | 0.669 | 3/4" |
| 0.669 | 0.276 | 0.866 | 1.366 | 0.495 | 0.669 | 11/16" |
